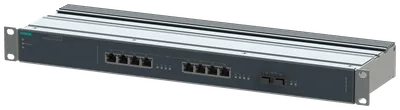

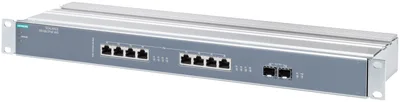

Siemens 6GK5108-2QS00-3AR3
SCALANCE XR108-2PoE WG; unmanaged IE Switch; 19" rack; 8 x 1GE electrical PoE ports; 2 x SFP 10GE port; LED diagnostics power supply 240 V AC (85 – 264 V).
product brand nameSCALANCE
product type designationXR108-2PoE WG
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
with PoE8
for SFP+2
About This Product
SCALANCE XR108-2PoE WG; unmanaged IE Switch; 19" rack; 8 x 1GE electrical PoE ports; 2 x SFP 10GE port; LED diagnostics power supply 240 V AC (85 – 264 V).
Siemens 6GK5108-2QS00-3AR3
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXR108-2PoE WG
transfer rate
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment8; RJ45
for Power-over-Ethernet / for network components or terminal equipment8
with PoE8
for SFP+2
interfaces / other
for power supply1
for power supplyIEC plug C14
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage supply / redundant power supply unitNo
per port / maximum60 W
total / maximum200 W
type of voltage / 1 / of the supply voltageAC
supply voltage / 1 / rated value240 V
supply voltage / 1 / voltage range85 ... 264
consumed current / 1 / maximum4 A
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage4 A / 250 V
ambient conditions
during operation0 ... 60 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width482.6 mm
height43.6 mm
depth133 mm
net weight2.9 kg
material / of the enclosuremetal
19-inch installationYes
35 mm DIN-rail mountingNo
wall mountingNo
S7-300 rail mountingNo
S7-1500 rail mountingNo
product features, product functions, product components / general
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
multiport mirroringNo
CoSYes
switch-managedNo
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
standards, specifications, approvals
CE markingYes
UKCA markingYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 62368-1, CSA C22.2 No. 62368-1
standards, specifications, approvals / other
railway application in accordance with EN 50155No
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total546.668 kg
during manufacturing80 kg
during operation465 kg
after end of life0.418 kg
product functions / general
MTBF47 a
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing80 kg
global warming potential [CO2 eq] / during sales1.25 kg
global warming potential [CO2 eq] / during operation465 kg
global warming potential [CO2 eq] / after end of life0.418 kg
global warming potential [CO2 eq] / total546.668 kg
