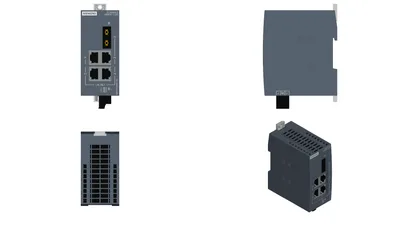

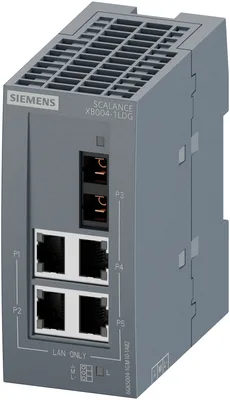

Siemens 6GK5004-1GM10-1AB2
SCALANCE XB004-1LDG unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 4x 10/100/1000 Mbit/s RJ45 Ports electrical and 1 x 1000 Mbit/s SC-port optical (single-mode, glass), up to max. 10 km Manual available as a download .
product brand nameSCALANCE
product type designationXB004-1LDG
transfer rate10, 100, 1000 Mbit/s
for multimode0
for single mode (LD)1
for power supply1
About This Product
SCALANCE XB004-1LDG unmanaged Industrial Ethernet Switch for 10/100/1000 Mbit/s; for setting up small star and line topologies; LED diagnostics, IP20, 24 V DC power supply, with 4x 10/100/1000 Mbit/s RJ45 Ports electrical and 1 x 1000 Mbit/s SC-port optical (single-mode, glass), up to max. 10 km Manual available as a download .
Siemens 6GK5004-1GM10-1AB2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXB004-1LDG
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4; RJ45
for multimode0
for single mode (LD)1
transmission method / of the optical interface1000BaseLX LD
interfaces / other
for power supply1
for power supply3-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value12.5 W
supply voltage / 1 / voltage range19.2 ... 28.8
consumed current / 1 / maximum0.52 A
type of electrical connection / 1 / for power supply3-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage0,6 A / 60 V
ambient conditions
during operation-10 ... +60 °C
during storage-40 ... +80 °C
during transport-40 ... +80 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

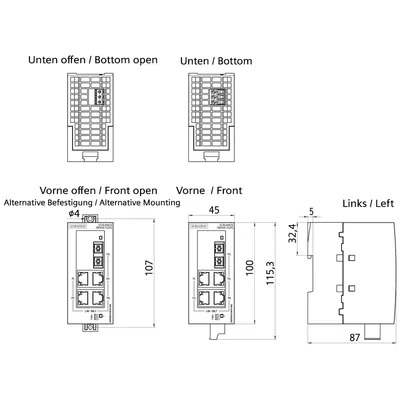

design, dimensions and weights
designBox
width45 mm
height100 mm
depth87 mm
net weight0.168 kg
35 mm DIN-rail mountingYes
wall mountingYes
S7-1500 rail mountingNo
product functions / management, configuration, engineering
multiport mirroringNo
CoSYes
switch-managedNo
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
standards, specifications, approvals
CE markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total141.3 kg
during manufacturing15.99 kg
during operation125.18 kg
after end of life0.15 kg
product functions / general
MTBF124 a
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing15.99 kg
global warming potential [CO2 eq] / during operation125.18 kg
global warming potential [CO2 eq] / after end of life0.15 kg
global warming potential [CO2 eq] / total141.3 kg
