How can I get a price quote for Siemens 6ES7214-1AG40-0XB0?

You can request a fast quote for Siemens 6ES7214-1AG40-0XB0 from Yılsa Engineering. Reference part number CEY-937FC7804AF4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7214-1AG40-0XB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7214-1AG40-0XB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7214-1AG40-0XB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

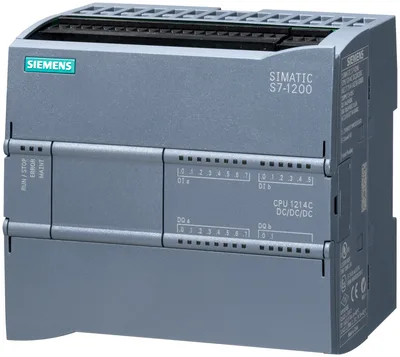

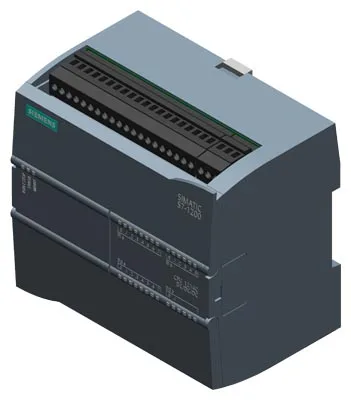

Siemens 6ES7214-1AG40-0XB0

For S7-1200 G2 successor see https://siemens.com/s7-1200g2 compact CPU, DC/DC/DC, onboard I/O: 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC, power supply: DC 20.4-28.8 V DC, program/data memory 150 KB

SiemensMFR # 6ES7214-1AG40-0XB0SKU # CEY-937FC7804AF4

Product type designationCPU 1214C DC/DC/DC

Firmware versionV4.7

Programming packageSTEP 7 V20 or higher

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7214-1AG40-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCPU 1214C DC/DC/DC

Firmware versionV4.7

Engineering with

Programming packageSTEP 7 V20 or higher

Supply voltage

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)500 mA; CPU only

Current consumption, max.1 500 mA; CPU with all expansion modules

Inrush current, max.12 A; at 28.8 V

I²t0.5 A²·s

Output current

for backplane bus (5 V DC), max.1 600 mA; Max. 5 V DC for SM and CM

24 V encoder supply

24 VL+ minus 4 V DC min.

Power loss

Power loss, typ.12 W

Work memory

integrated150 kbyte

Load memory

Integrated4 Mbyte

Plug-in (SIMATIC Memory Card), max.with SIMATIC memory card

Backup

presentYes

maintenance-freeYes

without batteryYes

CPU processing times

for bit operations, typ.0.08 µs; / instruction

for word operations, typ.1.7 µs; / instruction

for floating point arithmetic, typ.2.3 µs; / instruction

CPU-blocks

Number of elements (total)DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used

Number, max.Limited only by RAM for code

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.14 kbyte

Flag

Size, max.8 kbyte; Size of bit memory address area

Local data

per priority class, max.16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB

Process image

Inputs, adjustable1 kbyte

Outputs, adjustable1 kbyte

Hardware configuration

Number of modules per system, max.3 comm. modules, 1 signal board, 8 signal modules

number of expansion boards (SB, CB, BB)1

number of signal modules (SM)8

number of communications modules (CM)3

Clock

Hardware clock (real-time)Yes

Backup time480 h; Typical

Deviation per day, max.±60 s/month at 25 °C

Digital inputs

Number of digital inputs14; Integrated

of which inputs usable for technological functions6; HSC (High Speed Counting)

Sourcing/sinking inputYes

all mounting positions

— up to 40 °C, max.14

Input voltage

Rated value (DC)24 V

for signal "0"5 V DC at 1 mA

for signal "1"15 V DC at 2.5 mA

for standard inputs

— parameterizable0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms

— at "0" to "1", min.0.2 ms

— at "0" to "1", max.12.8 ms

for interrupt inputs

— ParameterizableYes

for technological functions

— ParameterizableSingle phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz

Cable length

shielded, max.500 m; 50 m for technological functions

unshielded, max.300 m; for technological functions: No

Digital outputs

Number of digital outputs10

of which high-speed outputs4; 100 kHz Pulse Train Output

Limitation of inductive shutdown voltage toL+ (-48 V)

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Output voltage

for signal "0", max.0.1 V; with 10 kOhm load

for signal "1", min.20 V

Output current

for signal "1" rated value0.5 A

for signal "0" residual current, max.0.1 mA

Output delay with resistive load

"0" to "1", max.1 µs

"1" to "0", max.5 µs

Switching frequency

of the pulse outputs, with resistive load, max.100 kHz

Relay outputs

Number of relay outputs0

Cable length

shielded, max.500 m

unshielded, max.150 m

Analog inputs

Number of analog inputs2

Input ranges

VoltageYes

Input ranges (rated values), voltages

0 to +10 VYes

— Input resistance (0 to 10 V)≥100k ohms

Cable length

shielded, max.100 m; twisted and shielded

Analog outputs

Number of analog outputs0

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.10 bit

Integration time, parameterizableYes

Conversion time (per channel)625 µs

Connectable encoders

2-wire sensorYes

Interfaces

Number of PROFINET interfaces1

1. Interface

Interface typePROFINET

IsolatedYes

automatic detection of transmission rateYes

AutonegotiationYes

AutocrossingYes

Interface types

RJ 45 (Ethernet)Yes

Number of ports1

integrated switchNo

Protocols

PROFINET IO ControllerYes

PROFINET IO deviceYes

SIMATIC communicationYes

Open IE communicationYes; Optionally also encrypted

Web serverYes

Media redundancyNo

PROFINET IO Controller

Transmission rate, max.100 Mbit/s

Services

— PG/OP communicationYes; encryption with TLS V1.3 pre-selected

— Isochronous modeNo

— IRTNo

— PROFIenergyNo

— Prioritized startupYes

— Number of IO devices with prioritized startup, max.16

— Number of connectable IO Devices, max.16

— Number of connectable IO Devices for RT, max.16

— of which in line, max.16

— Number of IO Devices that can be simultaneously activated/deactivated, max.8

— Updating timeThe minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data.

— PG/OP communicationYes; encryption with TLS V1.3 pre-selected

— Isochronous modeNo

— IRTNo

— Dynamic Frame Packing (DFP)No

— PROFIenergyYes

— Prioritized startupYes

— Shared deviceYes

— Number of IO Controllers with shared device, max.2

— Asset management recordYes

Protocols

Supports protocol for PROFINET IOYes

PROFIsafeNo

PROFIBUSYes; CM 1243-5 (master) or CM 1242-5 (slave) required

OPC UAYes; OPC UA Server

AS-InterfaceYes; CM 1243-2 required

Protocols (Ethernet)

TCP/IPYes

DHCPNo

SNMPYes

DCPYes

LLDPYes

Redundancy mode

PROFINET system redundancy (S2)No

PROFINET system redundancy (R1)No

Media redundancy

— MRPNo

— MRP interconnection, supportedNo

— MRPDNo

SIMATIC communication

S7 routingYes

Open IE communication

TCP/IPYes

— Data length, max.8 kbyte

ISO-on-TCP (RFC1006)Yes

— Data length, max.8 kbyte

UDPYes

— Data length, max.1 472 byte

Web server

supportedYes

User-defined websitesYes

OPC UA

Runtime license requiredYes; "Basic" license required

OPC UA ServerYes; data access (read, write, subscribe), method call, runtime license required

— Application authenticationAvailable security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256

— User authentication"anonymous" or by user name & password

— Number of sessions, max.10

— Number of subscriptions per session, max.5

— Sampling interval, min.100 ms

— Publishing interval, min.200 ms

— Number of server methods, max.20

— Number of monitored items, recommended max.1 000

— Number of server interfaces, max.2

— Number of nodes for user-defined server interfaces, max.2 000

Further protocols

MODBUSYes

S7 communication

supportedYes

as serverYes

as clientYes

User data per job, max.See online help (S7 communication, user data size)

Number of connections

overallPG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 68 max

Status/control

Status/control variableYes

VariablesInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters

Forcing

ForcingYes

Diagnostic buffer

presentYes

Traces

Number of configurable Traces2

Memory size per trace, max.512 kbyte

Diagnostics indication LED

RUN/STOP LEDYes

ERROR LEDYes

MAINT LEDYes

Integrated Functions

Number of counters6

Counting frequency, max.100 kHz

Frequency measurementYes

controlled positioningYes

Number of position-controlled positioning axes, max.8

Number of positioning axes via pulse-direction interface4; With integrated outputs

PID controllerYes

Number of alarm inputs4

Number of pulse outputs4

Limit frequency (pulse)100 kHz

Potential separation digital inputs

Potential separation digital inputsNo

between the channels, in groups of1

Potential separation digital outputs

Potential separation digital outputsYes

between the channelsNo

between the channels, in groups of1

Interference immunity against discharge of static electricity

Interference immunity against discharge of static electricity acc. to IEC 61000-4-2Yes

— Test voltage at air discharge8 kV

— Test voltage at contact discharge6 kV

Interference immunity to cable-borne interference

Interference immunity on supply lines acc. to IEC 61000-4-4Yes

Interference immunity on signal cables acc. to IEC 61000-4-4Yes

Interference immunity against voltage surge

Interference immunity on supply lines acc. to IEC 61000-4-5Yes

Interference immunity against conducted variable disturbance induced by high-frequency fields

Interference immunity against high-frequency radiation acc. to IEC 61000-4-6Yes

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes; Group 1

Limit class B, for use in residential areasYes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

CE markYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ecological footprint

environmental product declarationYes; type II acc. to ISO 14021

Global warming potential

— global warming potential, (total) [CO2 eq]111 kg

— global warming potential, (during production) [CO2 eq]20.1 kg

— global warming potential, (during operation) [CO2 eq]91.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.9 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C; Number of simultaneously activated inputs or outputs 7 or 5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or 10 at 55 °C horizontal or 45 °C vertical

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Operation, min.795 hPa

Operation, max.1 080 hPa

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Altitude during operation relating to sea level

Installation altitude, min.-1 000 m

Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Relative humidity

Operation, max.95 %; no condensation

Vibrations

Vibration resistance during operation acc. to IEC 60068-2-62 g (m/s²) wall mounting, 1 g (m/s²) DIN rail

Operation, tested according to IEC 60068-2-6Yes

Shock testing

tested according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms

Pollutant concentrations

SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

Programming language

— LADYes

— FBDYes

— SCLYes

Know-how protection

User program protection/password protectionYes

Copy protectionYes

Block protectionYes

Access protection

protection of confidential configuration dataYes

Protection level: Write protectionYes

Protection level: Read/write protectionYes

Protection level: Complete protectionYes

User administrationYes; device-wide

Number of users42

Number of groups14

Number of roles20

Cycle time monitoring

can be setYes

Dimensions

Width110 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.415 g

Accessories 30

Genuine accessories that can be used with the Siemens 6ES7214-1AG40-0XB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK7277-1AA10-0AA0	Aksesuar · Network components · Ethernet switch
3RQ4118-1AM00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
6ES7954-8LP04-0AA0	Aksesuar · Memory card
6ES7954-8LL04-0AA0	Aksesuar · Memory card
6ES7954-8LF04-0AA0	Aksesuar · Memory card
6ES7954-8LE04-0AA0	Aksesuar · Memory card
6ES7954-8LC04-0AA0	Aksesuar · Memory card
6ES7954-8LT04-0AA0	Aksesuar · Memory card
3RQ4118-2AM00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4038-2AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4038-1AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
6ES7290-3AA30-0XA0	Aksesuar · Accessories
6ES7274-1XH30-0XA0	Aksesuar · Simulator module
6ES7226-6BA32-0XB0	Aksesuar · Digital module input
6ES7226-6RA32-0XB0	Aksesuar · Digital module output
6ES7226-6DA32-0XB0	Aksesuar · Digital module output
6ES7954-8LP03-0AA0	Yedek parça · Memory card
6ES7954-8LT03-0AA0	Yedek parça · Memory card
6ES7954-8LL03-0AA0	Yedek parça · Memory card
6ES7954-8LF03-0AA0	Yedek parça · Memory card
6ES7954-8LE03-0AA0	Yedek parça · Memory card
6ES7954-8LC03-0AA0	Yedek parça · Memory card
6ES7292-2BC30-0XA0	Yedek parça · spare part
6ES7292-2AV30-0XA0	Yedek parça · spare part
6ES7292-1BC30-0XA0	Yedek parça · spare part
6ES7292-1AV30-0XA0	Yedek parça · spare part
6ES7292-1AM30-0XA0	Yedek parça · spare part
6ES7291-1AB30-0XA0	Yedek parça · spare part
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
