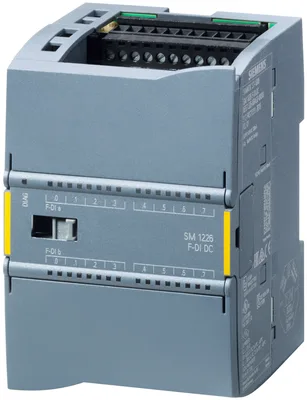

Photo may not represent actual item. Refer to name and product specs for all details.

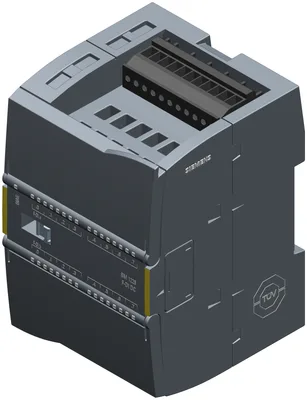

Siemens 6ES7226-6BA32-0XB0

SIMATIC S7-1200, Digital input SM 1226, F-DI 16X 24 V DC, PROFIsafe, 70 mm overall width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508)

SiemensMFR # 6ES7226-6BA32-0XB0SKU # CEY-8EF3B02C7AE9

Product type designationSM 1226, F-DI 16x24 V DC

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Power loss, typ.7 W

— up to 50 °C, max.16; 16 inputs at 55 °C horizontal

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Digital input SM 1226, F-DI 16X 24 V DC, PROFIsafe, 70 mm overall width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508)

Siemens 6ES7226-6BA32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1226, F-DI 16x24 V DC

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

power supply according to NEC Class 2 requiredNo

Input current

from backplane bus 5 V DC, max.155 mA; Current consumption (SM Bus, 5 V DC): 155 mA

Digital inputs

from load voltage L+ (without load), max.130 mA; 130 mA + 6 mA / input used + any Vs1/Vs2 current used

Power loss

Power loss, typ.7 W

Digital inputs

Number of digital inputs16; 16 (1oo1) or 8 (1oo2); Note: You can individually assign each pair of inputs "a.x" and "b.x" as a single (1oo2)-channel or as 2 separate (1oo1)-channels

horizontal installation

— up to 50 °C, max.16; 16 inputs at 55 °C horizontal

vertical installation

— up to 40 °C, max.16; 16 inputs at 45 °C vertical

Input voltage

for signal "0"-30 V DC to +5 V DC

for signal "1"15 V DC to 30 V DC

Input current

for signal "0", max. (permissible quiescent current)0.5 mA

for signal "1", typ.5 mA

for standard inputs

— parameterizableYes; 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms

Cable length

shielded, max.200 m; unshielded with input filter time of 1.6 ms to 12.6 ms (With an input delay of 0.8 ms, shielded cables must be used for the digital inputs and the sensor supply)

unshielded, max.200 m; Shielded with input filter time of 0.8 ms to 12.6 s (With an input delay of 0.8 ms, shielded cables must be used for the digital inputs and the sensor supply)

Diagnostics indication LED

for status of the inputsYes

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

cULusYes

FM approvalYes

Highest safety class achievable in safety mode

Performance level according to ISO 13849-11-channel, Category 3, PL d; 2-channel, Category 3 or 4, PL e

SIL acc. to IEC 61508SIL 2 (single-channel), SIL 3 (two-channel)

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL2< 5.00E-04

— Low demand mode: PFDavg in accordance with SIL3< 1.00E-05

— High demand/continuous mode: PFH in accordance with SIL2< 1.00E-08 1/h

— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-10 1/h

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.0 °C

max.55 °C

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Mechanics/material

plasticYes

Dimensions

Width70 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.250 g

Accessories 6

Genuine accessories that can be used with the Siemens 6ES7226-6BA32-0XB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ4038-1AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4038-2AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
6ES7291-1BB30-0XA0	Yedek parça · spare part
6ES7292-1AL30-0XA0	Yedek parça · spare part
6ES7214-1AF40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7214-1HF40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
