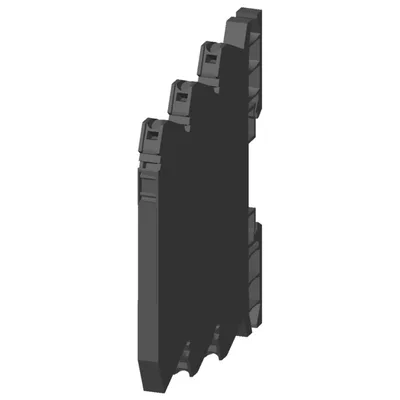

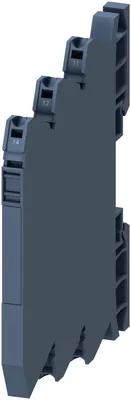

Siemens 3RQ4038-2AB00

input coupler with integrated relay, 24 V AC/DC, 1 change-over contact, spring-loaded terminal (push-in), width 6.2 mm, thermal current 6 A

SiemensMFR # 3RQ4038-2AB00SKU # YLSA8AW09HQWFRT

product brand nameSIRIUS

design of the productinput coupling link

product type designation3RQ4

display version LEDYes

relay outputYes

semi-conductor outputNo

Have questions?Chat on WhatsApp

About This Product

input coupler with integrated relay, 24 V AC/DC, 1 change-over contact, spring-loaded terminal (push-in), width 6.2 mm, thermal current 6 A

Siemens 3RQ4038-2AB00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySIRIUS 3RQ4 coupling relay, narrow design

product designationCoupling relay with integrated relay output

design of the productinput coupling link

product type designation3RQ4

General technical data

display version LEDYes

product feature protective coating on printed-circuit boardNo

relay outputYes

semi-conductor outputNo

power loss [W] maximum0.25 W

consumed active power0.3 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

surge voltage resistance rated value4 kV

between control and auxiliary circuit300 V

between control and auxiliary circuit according to IEC 60947-1300 V

percental drop-out voltage related to the input voltage10 %

protection class IPIP20

flammability class of enclosure materialUL94 V-0

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-66 ... 150 Hz: 2 g

operating frequency maximum72 000 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical10 000 000

at AC-15 at 250 V typical100 000

thermal current6 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)09/26/2024

Net Weight0.035 kg

Control circuit/ Control

at 50 Hz rated value24 V

at 60 Hz rated value24 V

1 rated value50 Hz

2 rated value60 Hz

control supply voltage at DC rated value24 V

initial value0.85

full-scale value1.25

initial value0.8

full-scale value1.25

initial value0.8

full-scale value1.25

inrush current maximum1 A

at AC maximum10 ms

at DC maximum10 ms

OFF-delay time maximum10 ms

Switching Function

design of the switching function positively drivenNo

Digital Outputs

property of the output short-circuit proofNo

Mechanical data

product component plug-in socketNo

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A

Auxiliary circuit

type of switching contactdouble contact

material of contact coatingother

material of switching contactsAgSnO2

material of the contact insertThermoplastic

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts1

at 24 V3 A

at 250 V3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)

Main circuit

type of voltageAC/DC

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

Electromagnetic compatibility

electromagnetic compatibilityacc. to EN 60947-5-1

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Display

display version as status display by LEDLED green

Connections/ Terminals

product function removable terminalNo

type of electrical connectionspring-loaded terminals

solid1x (0.25 ... 2.5 mm²)

finely stranded with core end processing1x (0.25 ... 1.5 mm²)

finely stranded without core end processing1x (0.25 ... 2.5 mm²)

for AWG cables solid1x (20 ... 14)

for AWG cables stranded1x (20 ... 14)

solid0.25 ... 2.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.25 ... 2.5 mm²

solid20 ... 14

stranded20 ... 14

size of the screwdriver tipPZ1

stripped length10 mm

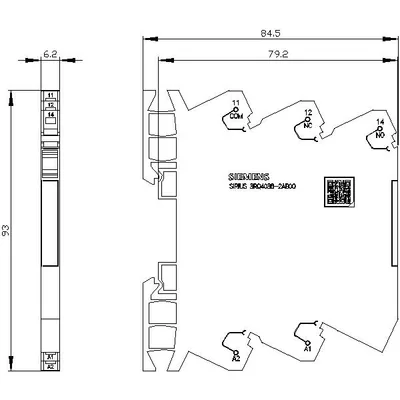

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height93 mm

width6.2 mm

depth84.5 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation10 ... 95 %
