How can I get a price quote for Siemens 6ES7145-6HD00-0AB0?

You can request a fast quote for Siemens 6ES7145-6HD00-0AB0 from Yılsa Engineering. Reference part number CEY-8EF3B0387E4E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7145-6HD00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7145-6HD00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7145-6HD00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

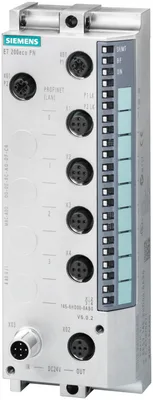

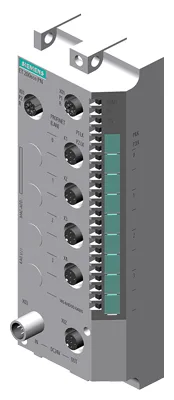

Siemens 6ES7145-6HD00-0AB0

*** spare part *** SIMATIC DP, ET 200eco PN, 4 AO U/I; 4xM12, degree of protection IP67

SiemensMFR # 6ES7145-6HD00-0AB0SKU # CEY-8EF3B0387E4E

Vendor identification (VendorID)002AH

Device identifier (DeviceID)0306H

Rated value (DC)24 V

Reverse polarity protectionYes

Current consumption, typ.280 mA

Number of outputs4

Have questions?Chat on WhatsApp

About This Product

*** spare part *** SIMATIC DP, ET 200eco PN, 4 AO U/I; 4xM12, degree of protection IP67

Siemens 6ES7145-6HD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Vendor identification (VendorID)002AH

Device identifier (DeviceID)0306H

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes

power supply according to NEC Class 2 requiredYes

Input current

Current consumption, typ.280 mA

Actuator supply

Number of outputs4

Short-circuit protectionYes; Electronic at 1.4 A

Output current

nominal1 A; Maximum

Power loss

Power loss, typ.5.5 W

Analog outputs

Number of analog outputs4

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.30 mA

Current output, no-load voltage, max.20 V

Output ranges, voltage

0 to 10 VYes

1 V to 5 VYes

-10 V to +10 VYes

Output ranges, current

0 to 20 mAYes

-20 mA to +20 mAYes

4 mA to 20 mAYes

Connection of actuators

for voltage output two-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.600 Ω

with current outputs, inductive load, max.1 mH

Destruction limits against externally applied voltages and currents

Voltages at the outputs towards MANA28.8 V permanent, 35 V for max. 500 ms

Cable length

shielded, max.30 m

Analog value generation for the outputs

Analog value displaySIMATIC S7 format

Conversion principleResistor network

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Conversion time (per channel)1 ms

Settling time

for resistive load2 ms

for capacitive load1.8 ms

for inductive load2 ms

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)U: ±0.6 mVrms; I: ±0.4 nArms

Linearity error (relative to output range), (+/-)0.02 %

Temperature error (relative to output range), (+/-)U: 0.001%/°C; I: 0.0025%/°C

Crosstalk between the outputs, min.70 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.008 %

Interfaces

Transmission procedure100BASE-TX

Number of PROFINET interfaces1

Interface types

M12 portYes

integrated switchYes

Services

— IRT with the option "high flexibility"Yes

— Prioritized startupYes

M12 port

AutonegotiationYes

AutocrossingYes

Transmission rate, max.100 Mbit/s

Protocols

Supports protocol for PROFINET IOYes

PROFINET CBANo

PROFIsafeNo

Media redundancy

— MRPYes

Open IE communication

TCP/IPNo

SNMPYes

DCPYes

LLDPYes

pingYes

ARPYes

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Monitoring the supply voltageYes; green "ON" LED

Wire breakYes; Channel-by-channel with current output

Short-circuitYes; Channel-by-channel with voltage output

Potential separation

between the load voltagesYes

between load voltage and all other switching componentsNo

between Ethernet and electronicsYes

Potential separation channels

between the channelsNo

Permissible potential difference

between M internally and the outputs10 Vpp AC

tested with

24 V DC circuits707 V DC (type test)

Test voltage for interface, rms value [Vrms]1 500 V; According to IEEE 802.3

Degree and class of protection

IP degree of protectionIP65/67

Use in hazardous areas

Explosion protection category for gasATEX gas explosion protection, Zone 2

Explosion protection category for dustATEX dust explosion protection, Zone 22

Connection method

Design of electrical connection4/5-pin M12 circular connectors

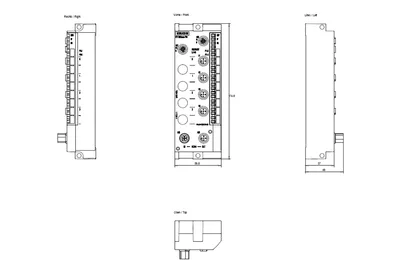

Dimensions

Width60 mm

Height175 mm

Depth49 mm

Weights

Weight, approx.930 g
