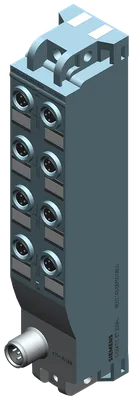

Siemens 6ES7143-5BF00-0BL0

SIMATIC ET 200AL, IO-Link, DIQ 4+DQ 4x 24 V DC/0.5 A, 8x M8, Degree of protection IP67

SiemensMFR # 6ES7143-5BF00-0BL0SKU # YLS1PUPXJFEDJT

Product type designationIO-Link DIQ 4+DQ 4x24VDC/0.5A

HW functional statusFS01

Firmware versionV1.0.x

Vendor identification (VendorID)42

Device identifier (DeviceID)229382

IODD fileYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200AL, IO-Link, DIQ 4+DQ 4x 24 V DC/0.5 A, 8x M8, Degree of protection IP67

Siemens 6ES7143-5BF00-0BL0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIO-Link DIQ 4+DQ 4x24VDC/0.5A

HW functional statusFS01

Firmware versionV1.0.x

Vendor identification (VendorID)42

Device identifier (DeviceID)229382

Engineering with

IODD fileYes

Load voltage 1L+

Rated value (DC)24 V; Supply from 1Us+ of the IO-Link master

permissible range, lower limit (DC)18 V

permissible range, upper limit (DC)30 V

Reverse polarity protectionYes; against destruction

Load voltage 2L+

Rated value (DC)24 V; Supply from 2UA+ of the IO-Link master

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; Against destruction; encoder power supply outputs applied with reversed polarity, loads pick up

Input current

Current consumption (rated value)15 mA; without load

from load voltage 2L+, max.4 A; Maximum value

Encoder supply

Number of outputs8; Supply from 2UA+ of the IO-Link master

24 V encoder supply

Short-circuit protectionYes; per module, electronic

Output current, max.0.7 A; Total current of all encoders (depending on IO-Link master supply via 2UA+)

Power loss

Power loss, typ.2.3 W

Digital inputs

Number of digital inputs4; Parameterizable as DIQ

Sourcing/sinking inputP-reading

Input characteristic curve in accordance with IEC 61131, type 3Yes

all mounting positions

— up to 55 °C, max.4

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"+11 to +30V

Input current

for signal "1", typ.3 mA

for standard inputs

— at "0" to "1", min.1.2 ms

— at "0" to "1", max.4.8 ms

— at "1" to "0", min.1.2 ms

— at "1" to "0", max.4.8 ms

Cable length

unshielded, max.30 m

Digital outputs

Number of digital outputs8; 4 DQ fixed, 4 DIQ parameterizable

Current-sourcingYes

output type acc. to IEC 61131, type 0.5Yes

Short-circuit protectionYes; per channel, electronic

Response threshold, typ.0.7 A

Limitation of inductive shutdown voltage to2L+ (-50 V)

Switching capacity of the outputs

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.L+ (-0.8 V)

Output current

for signal "1" rated value0.5 A

for signal "0" residual current, max.0.5 mA

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

Total current of the outputs

Current per module, max.4 A

Cable length

unshielded, max.30 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

IO-Link

IO-Link protocol 1.1Yes

Transmission rate38.4 kBd (COM2)

Cycle time, min.2.4 ms

Size of process data, input per module1 byte

Size of process data, output per module1 byte

Supported IO-Link profilescommon profile

Cable length unshielded, max.20 m

Connection of IO-Link devices

Port type BYes

Interrupts/diagnostics/status information

Substitute values connectableYes; channel by channel, parameterizable

Alarms

Diagnostic alarmYes; Parameterizable

Diagnoses

Short-circuitYes; outputs to ground; encoder supply to ground; module by module

Diagnostics indication LED

Channel status displayYes; green LED

for module diagnosticsYes; green/red LED

For load voltage monitoringYes; green LED

Potential separation

between the load voltagesYes

Potential separation channels

between the channelsNo

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Degree and class of protection

IP degree of protectionIP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modulesYes; from FS01

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Ambient temperature during operation

min.-30 °C

max.55 °C

Connection method

Design of electrical connection for the inputs and outputsM8, 3-pole

Type of electrical connection for IO-LinkM12, 5-pin, A-coded

Dimensions

Width30 mm

Height159 mm

Depth40 mm

Weights

Weight, approx.125 g
