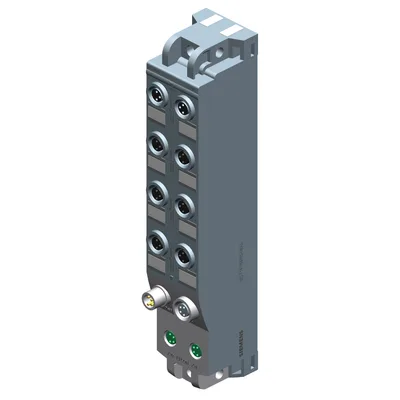

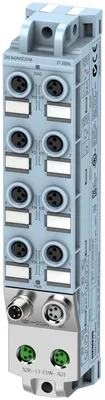

Siemens 6ES7141-5BF00-0BA0

SIMATIC ET 200AL, DI 8x 24 V DC, 8XM8, Degree of protection IP67

SiemensMFR # 6ES7141-5BF00-0BA0SKU # CEY-937FC77FF5E1

Product type designationDI 8x24VDC

HW functional statusFS06

Firmware versionV2.0.x

I&M dataYes; I&M0 to I&M3

PROFIBUS from GSD version/GSD revisionGSD as of Revision 5

PROFINET from GSD version/GSD revisionGSDML V2.3.1

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200AL, DI 8x 24 V DC, 8XM8, Degree of protection IP67

Siemens 6ES7141-5BF00-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDI 8x24VDC

HW functional statusFS06

Firmware versionV2.0.x

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V13 SP1 or higher

STEP 7 configurable/integrated from versionFrom V5.5 SP4 Hotfix 3

PROFIBUS from GSD version/GSD revisionGSD as of Revision 5

PROFINET from GSD version/GSD revisionGSDML V2.3.1

Supply voltage

power supply according to NEC Class 2 requiredNo

Load voltage 1L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; Against destruction; encoder power supply outputs applied with reversed polarity

Input current

Current consumption (rated value)25 mA; without load

from load voltage 1L+ (unswitched voltage)4 A; Maximum value

from load voltage 2L+, max.4 A; Maximum value

Encoder supply

Number of outputs8

24 V encoder supply

Short-circuit protectionYes; per module, electronic

Output current, max.0.7 A; Total current of all encoders

Power loss

Power loss, typ.1.9 W

Digital inputs

Number of digital inputs8

Sourcing/sinking inputP-reading

Input characteristic curve in accordance with IEC 61131, type 3Yes

all mounting positions

— up to 55 °C, max.8

Input voltage

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"+11 to +30V

Input current

for signal "1", typ.3.2 mA

for standard inputs

— at "0" to "1", min.1.2 ms

— at "0" to "1", max.4.8 ms

— at "1" to "0", min.1.2 ms

— at "1" to "0", max.4.8 ms

Cable length

unshielded, max.30 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Alarms

Diagnostic alarmYes; Parameterizable

Diagnoses

Short-circuitYes; Sensor supply to M; module by module

Diagnostics indication LED

Channel status displayYes; green LED

for module diagnosticsYes; green/red LED

Potential separation

between the load voltagesYes

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with707 V DC (type test)

Degree and class of protection

IP degree of protectionIP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modulesYes; from FS01

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Security

signed firmware updateYes

data integrityYes

Ambient temperature during operation

min.-30 °C

max.55 °C

Altitude during operation relating to sea level

Ambient air temperature-barometric pressure-altitudeUp to max. 5 000 m, at installation height > 2 000 m additional restrictions

Connection method

Design of electrical connection for the inputs and outputsM8, 3-pole

Design of electrical connection for supply voltageM8, 4-pole

ET-Connection

ET-ConnectionM8, 4-pin, shielded

Dimensions

Width30 mm

Height159 mm

Depth40 mm

Weights

Weight, approx.145 g
