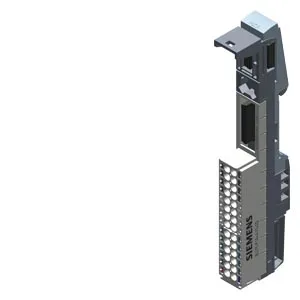

Siemens 6ES7193-6BP20-0DA0

SIMATIC ET 200SP, BaseUnit BU15-P16+A10+2D, BU type A0, Push-in terminals, with 10 AUX terminals, New load group, WxH: 15 mmx141 mm

SiemensMFR # 6ES7193-6BP20-0DA0SKU # CEY-937FC77C653D

Product type designationBU type A0

HW functional statusFrom FS07

Rated value (DC)24 V

For P1 and P2 bus, max.10 A

For AUX bus, max.10 A

For process terminals, max.2 A

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, BaseUnit BU15-P16+A10+2D, BU type A0, Push-in terminals, with 10 AUX terminals, New load group, WxH: 15 mmx141 mm

Siemens 6ES7193-6BP20-0DA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBU type A0

HW functional statusFrom FS07

Supply voltage

Rated value (DC)24 V

external protection for power supply linesYes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic

Current carrying capacity

For P1 and P2 bus, max.10 A

For AUX bus, max.10 A

For process terminals, max.2 A

Formation of potential groups

New potential groupYes

Potential group continued from the leftNo

Slots

Number of slots1; Type A0

Potential separation

between the potential groupsYes

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]1.09 kg

— global warming potential, (during production) [CO2 eq]1.08 kg

— global warming potential, (during operation) [CO2 eq]0 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.0045 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Color coding labels

for process terminalsCC00 to CC09

for AUX terminalsCC71 to CC73

for add-on terminalsdoes not exist

Terminals

Terminal typePush-in terminal

system-integrated shield connectionYes; Optional

Conductor cross-section, min.0.14 mm²; AWG 26

Conductor cross-section, max.2.5 mm²; AWG 14

Number of process terminals to I/O module16

Number of terminals to AUX bus10

Number of add-on terminals0

Number of terminals with connection to P1 and P2 bus2

Dimensions

Width15 mm

Height141 mm

Depth35 mm

Weights

Weight, approx.50 g

Accessories 6

Genuine accessories that can be used with the Siemens 6ES7193-6BP20-0DA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7133-6CV20-1AM0	Aksesuar · Cover
6ES7193-6CP51-2MC0	Aksesuar · label
6ES7193-6CP52-2MC0	Aksesuar · label
6ES7193-6CP84-2AC0	Aksesuar · label
6ES7193-6CP85-2AC0	Aksesuar · label
6ES7193-6CP86-2AC0	Aksesuar · label
