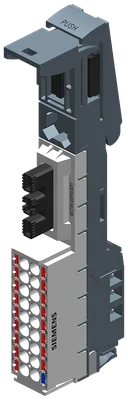

Siemens 6ES7193-6UP00-0DP1

SIMATIC ET 200SP, Potential distributor module, PotDis-BaseUnit PotDis-BU Typ P1, light-colored, 17 x P1-potential, 1 x P2-potential, Push-In terminals. P1-, P2- and AUX-rail diconnected from left BU, Packaging Unit: 1 Piece, WxH: 15mm x 117mm

SiemensMFR # 6ES7193-6UP00-0DP1SKU # CEY-8EF3B02C30D5

Product type designationPotDis BU type P1, light version

HW functional statusFS10 and higher

For P1 and P2 bus48 V; max.

for process terminals48 V; max.

For P1 and P2 bus, max.10 A

For process terminals, max.10 A

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7193-6UP00-0DP1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationPotDis BU type P1, light version

HW functional statusFS10 and higher

Color code for module-specific color-coded labelCC62

Supply voltage

For P1 and P2 bus48 V; max.

for process terminals48 V; max.

external protection for power supply linesYes; 10 A miniature circuit breaker with type B or C tripping characteristic for the respective rated supply voltage

Current carrying capacity

For P1 and P2 bus, max.10 A

For process terminals, max.10 A

Formation of potential groups

New potential groupYes

Potential group continued from the leftNo

Slots

Number of slots1

Potential separation

between backplane bus and supply voltageYes

Isolation

Isolation tested with3 250 V DC

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]0.873 kg

— global warming potential, (during production) [CO2 eq]0.866 kg

— global warming potential, (during operation) [CO2 eq]0 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.0011 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Color coding labels

for process terminalsCC62

Terminals

Terminal typePush-in terminal

Conductor cross-section, min.0.14 mm²

Conductor cross-section, max.2.5 mm²

Number of terminals with connection to P1 and P2 bus17 terminals to P1, 1 terminal to P2

Dimensions

Width15 mm

Height117 mm

Depth35 mm

Weights

Weight, approx.40 g
