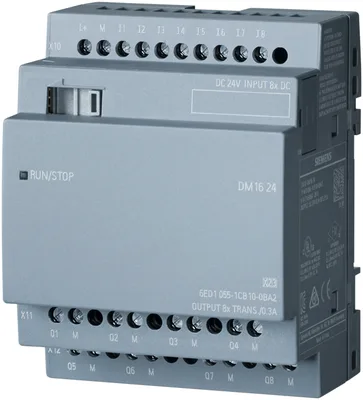

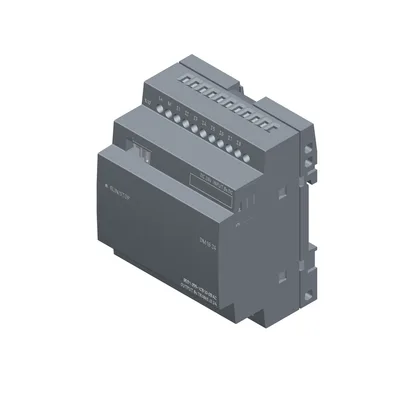

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ED1055-1CB10-0BA2

LOGO! DM16 24 expansion module, PS/I/O: 24 V DC/24 V DC/trans., 8 DI/8 DO, 4 MW for LOGO! 8

SiemensMFR # 6ED1055-1CB10-0BA2SKU # CEY-8EF3B0325EDC

Mountingon 35 mm DIN rail, 4 spacing units wide

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Number of digital inputs8

Type of input voltageDC

Have questions?Chat on WhatsApp

About This Product

LOGO! DM16 24 expansion module, PS/I/O: 24 V DC/24 V DC/trans., 8 DI/8 DO, 4 MW for LOGO! 8

Siemens 6ED1055-1CB10-0BA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Installation type/mounting

Mountingon 35 mm DIN rail, 4 spacing units wide

Supply voltage

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Digital inputs

Number of digital inputs8

Input voltage

Type of input voltageDC

for signal "0"< 5 V DC

for signal "1"> 12 V DC

Input current

for signal "0", max. (permissible quiescent current)0.85 mA

for signal "1", typ.2 mA

for standard inputs

— at "0" to "1", max.1.5 ms

— at "1" to "0", max.1.5 ms

Digital outputs

Number of digital outputs8

Short-circuit protectionYes

Output current

for signal "1" rated value0.3 A

Parallel switching of two outputs

for upratingNo

Switching frequency

with resistive load, max.10 Hz

with inductive load, max.0.5 Hz

Emission of radio interference acc. to EN 55 011

Limit class B, for use in residential areasYes

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

FM approvalYes

developed in accordance with IEC 61131Yes

according to VDE 0631Yes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]59.1 kg

— global warming potential, (during production) [CO2 eq]5.82 kg

— global warming potential, (during operation) [CO2 eq]53.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.373 kg

Ambient temperature during operation

min.-20 °C; No condensation

max.55 °C

Dimensions

Width71.5 mm

Height90 mm

Depth58 mm
