How can I get a price quote for Siemens 6BK1700-0BA20-0AA0?

You can request a fast quote for Siemens 6BK1700-0BA20-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B02DC450. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6BK1700-0BA20-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6BK1700-0BA20-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6BK1700-0BA20-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

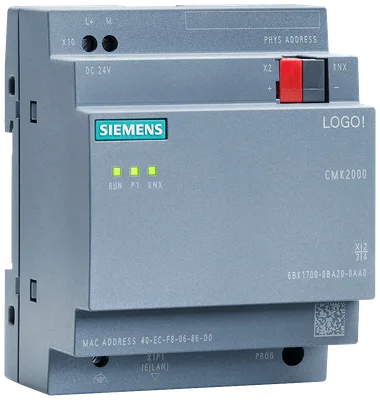

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6BK1700-0BA20-0AA0

LOGO! CMK2000 Communication module for integrating the LOGO! 8 "in the building system bus KNX;" connection 24 V DC 0.04A 1 RJ45 port for Ethernet 50 communication objects time-of-day synchronization Configuration/diagnostics via web interface

SiemensMFR # 6BK1700-0BA20-0AA0SKU # CEY-8EF3B02DC450

FW update possibleYes

Mountingon 35 mm DIN rail, 4 spacing units wide

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Current consumption, max.0.04 A

Have questions?Chat on WhatsApp

About This Product

Siemens 6BK1700-0BA20-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

FW update possibleYes

Installation type/mounting

Mountingon 35 mm DIN rail, 4 spacing units wide

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption, max.0.04 A

Storage

FlashYes

Clock synchronization

supportedYes

Interfaces

Number of industrial Ethernet interfaces1; Ethernet, 1 port, RJ45

Number of other interfaces1; EIB/KNX

Transmission rate, max.100 Mbit/s over Ethernet, 9 600 bit/s over KNX

Design of plug-in connectionKNX terminal 0.6 mm² - 1.0 mm²

Protocols

EIB/KNXYes

Web server

supportedYes

S7 basic communication

supportedNo

LOGO! communication

supportedYes

Diagnostics indication LED

RUN/STOP LEDYes

Emission of radio interference acc. to EN 55 011

Limit class B, for use in residential areasYes; In accordance with EN 61000-6-3

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalNo

RCM (formerly C-TICK)No

KC approvalYes

EAC (formerly Gost-R)Yes

according to VDE 0631No

Marine approvalNo

Ambient temperature during operation

min.0 °C

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Relative humidity

Operation, max.95 %

Connection method

Design of electrical connection for supply voltage2 screw-type terminals: L+, M 0.5 mm² - 2.5 mm² Screw-type terminal: FE 0.5 mm² ... 6.0 mm²

Dimensions

Width71.5 mm; 4TE

Height90 mm

Depth58.5 mm

Weights

Weight, approx.0.14 kg
