How can I get a price quote for Siemens 6ED1052-1CC08-0BA3?

You can request a fast quote for Siemens 6ED1052-1CC08-0BA3 from Yılsa Engineering. Reference part number YLSYHOM7V6XL8V3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ED1052-1CC08-0BA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ED1052-1CC08-0BA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ED1052-1CC08-0BA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

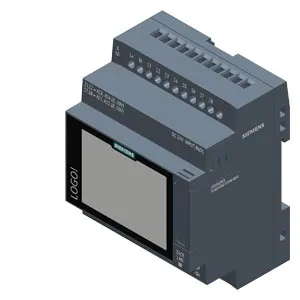

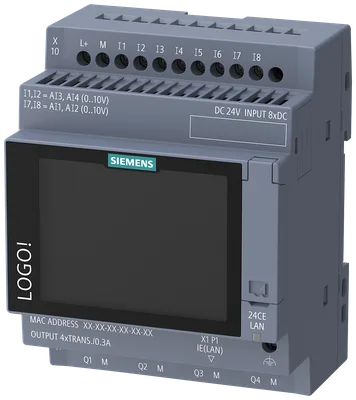

Siemens 6ED1052-1CC08-0BA3

LOGO! 24CE, logic module, display power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, memory 800 blocks, modularly expandable, Ethernet integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V9.0 or higher, older projects executable cloud connection, MQTT in all basic units touch display

SiemensMFR # 6ED1052-1CC08-0BA3SKU # YLSYHOM7V6XL8V3

with displayYes

Mountingon 35 mm DIN rail, 4 spacing units wide

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Number800; max. 800, function-specific

Have questions?Chat on WhatsApp

About This Product

Siemens 6ED1052-1CC08-0BA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Display

with displayYes

Installation type/mounting

Mountingon 35 mm DIN rail, 4 spacing units wide

Supply voltage

24 V DCYes

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Time switching clocks

Number800; max. 800, function-specific

Power reserve480 h

Digital inputs

Number of digital inputs8; Of which 4 can be used in analog mode (0 to 10 V)

Digital outputs

Number of digital outputs4; Transistor

Short-circuit protectionYes

Emission of radio interference acc. to EN 55 011

Limit class B, for use in residential areasYes; Radio interference suppression according to EN55011, Limit Value Class B

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

CE markYes

CSA approvalYes; covered by UL cert

UL approvalYes

FM approvalYes

developed in accordance with IEC 61131Yes

according to VDE 0631Yes

Marine approvalYes; in preparation

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]42.2 kg

— global warming potential, (during production) [CO2 eq]8.9 kg

— global warming potential, (during operation) [CO2 eq]33.77 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.43 kg

Ambient temperature during operation

min.-20 °C; No condensation

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Dimensions

Width71.5 mm; 4 modular widths (MW)

Height90 mm

Depth58 mm

Accessories 20

Genuine accessories that can be used with the Siemens 6ED1052-1CC08-0BA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AG1331-6SB00-7AY0	Aksesuar · #NO_DATA# · #NO_DATA#
6BK1700-0BA20-0AA0	Aksesuar · Communication module
6ED1055-5MC08-0BA3	Aksesuar · Communication module
6EP3333-6SC00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3320-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3322-6SB10-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3321-6SB10-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3333-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3332-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3330-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3322-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP4683-6LB00-0AY0	Aksesuar · Inrush current limiter · #NO_DATA#
6EP3311-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3310-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6ED1057-4EA00-0AA0	Aksesuar · Switching module
6ED1057-4CA00-0AA0	Aksesuar · Switching module
6EP3321-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6EP3331-6SB00-0AY0	Aksesuar · Power supply · #NO_DATA#
6GK7177-1MA20-0AA0	Aksesuar · Network components · Ethernet switch
6ED1058-0BA08-0YA3	Aksesuar
