Siemens 6DL1136-6AA00-0PH1

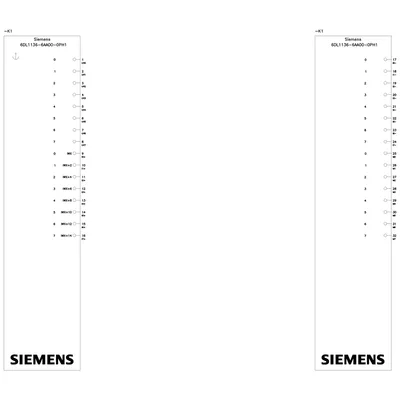

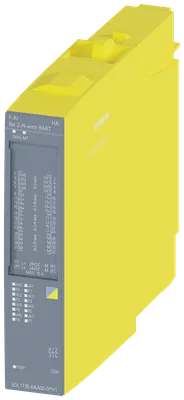

Limited delivery release with markings acc. to CE, ATEX/IECEx, cULus, cULus hazardous location, without FM marking. input module, safety-oriented, F-AI 8xI 2-wire/4-wire HART HA, 16-bit, 2-wire/4-wire, SIL3 (IEC 61508), up to PL e (ISO 13849-1), suitable for terminal block H1, F1, color code CC00, channel diagnostics

SiemensMFR # 6DL1136-6AA00-0PH1SKU # YLSRWQ1O6WNVINF

Product type designationF-AI 8xI 2-/4-wire HART HA

Firmware versionV1.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

PROFINET from GSD version/GSD revisionGSDML V2.42 2023.01

Redundancy capabilityYes; with TB type F1

Have questions?Chat on WhatsApp

About This Product

Siemens 6DL1136-6AA00-0PH1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationF-AI 8xI 2-/4-wire HART HA

Firmware versionV1.0

FW update possibleYes

Usable terminal blocktype H1, F1, N0, H0, F0 (see system manual for details)

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV21

STEP 7 configurable/integrated from versionV5.6 SP2 (with S7 F Systems V6.4)

PCS 7 configurable/integrated from versionV9.0 SP3 + UC04 (with F Systems V6.4)

PROFINET from GSD version/GSD revisionGSDML V2.42 2023.01

Redundancy

Redundancy capabilityYes; with TB type F1

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)90 mA; without sensor supply

Encoder supply

Number of outputs8

Short-circuit protectionYes

24 V encoder supply

24 VYes

Short-circuit protectionYes

Output current per channel, max.30 mA

Power

Power consumption from the backplane bus90 mW

Power loss

Power loss, typ.2.8 W

Address space per module

Inputs22 byte

Outputs5 byte

Analog inputs

For current measurement8

permissible input current for current input (destruction limit), max.35 mA

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)150 Ω

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)150 Ω

HART communication

Primary MasterYes

Secondary MasterNo

input resistance (with HART communication)150 Ω; for operation with an external secondary master (e.g. communicator), an external load may be necessary to achieve a total impedance of 230 - 600 Ω.

Cable length

shielded, max.1 000 m; shielded, twisted pair

Analog value generation for the inputs

Measurement principleSigma Delta

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes

Integration time (ms)20 ms (at 50 Hz); 16.66 ms (at 60 Hz)

Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz

Smoothing of measured values

ParameterizableYes; in 4 stages (1, 4, 16, 64 conversion cycles), channel-by-channel

Connection of signal encoders

for current measurement as 2-wire transducerYes

for current measurement as 4-wire transducerYes

Errors/accuracies

Crosstalk between the inputs, min.-70 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.008 %

up to 40 °C, max.0.6 %; (0.7% in vertical installation)

up to 70 °C, max.0.9 %

note regarding accuracythe safety-relevant accuracy consists of a basic error, a temperature-dependent drift, aging and internal safety measures

Influence of a HART signal modulated on the input signal in relation to input range

error at 16.6 ms integration time0.11 %

error at 20 ms integration time0.11 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.40 dB

Common mode voltage, max.35 V

Common mode interference, min.80 dB

Protocols

HART protocolYes

Protocol versionup to Revision 7

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes

short-circuitYes

Overflow/UnderflowYes

Diagnostics indication LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+No

Permissible potential difference

between the inputs (UCM)30 V DC / 25 V AC

tested with

between backplane bus and load voltage1 500 V DC (load voltage L+ and channels I+n bridged)

between the backplane bus and functional ground (FE)1 500 V DC

between load voltage and functional ground (FE)1 500 V DC (load voltage L+ and channels I+n bridged)

between the channels and load voltage370 V AC

between the potential groups of the channels370 V AC

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLd (PLe for 1oo2 voting on the F-CPU)

Category according to ISO 13849-1cat. 3 (cat. 4 for 1oo2 voting on the F-CPU)

SIL acc. to IEC 61508SIL 3

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL3< 27E-05 (< 9E-05 for 1oo2 voting on the F-CPU)

— High demand/continuous mode: PFH in accordance with SIL3< 4E-09 1/h (< 1E-09 1/h for 1oo2 voting on the F-CPU)

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

Dimensions

Width22.5 mm

Height115 mm

Depth138 mm

Weights

Weight, approx.220 g
