How can I get a price quote for Siemens 6DL1193-6TP00-0BH1?

You can request a fast quote for Siemens 6DL1193-6TP00-0BH1 from Yılsa Engineering. Reference part number YLSJTIHIAUCXCMO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6DL1193-6TP00-0BH1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6DL1193-6TP00-0BH1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6DL1193-6TP00-0BH1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

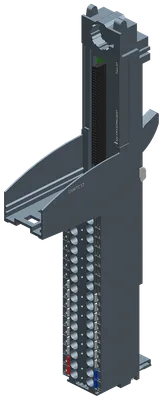

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6DL1193-6TP00-0BH1

SIMATIC ET 200SP HA, Terminal block, Type H1, 32 push-in terminals, internal reference temperature Width: 22.5 mm,

SiemensMFR # 6DL1193-6TP00-0BH1SKU # YLSJTIHIAUCXCMO

Product type designationType H1

I&M dataYes; Asset data

Rated value (DC)24 V

For process terminals, max.2 A

support of potential groupsYes

New potential groupNo

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP HA, Terminal block, Type H1, 32 push-in terminals, internal reference temperature Width: 22.5 mm,

Siemens 6DL1193-6TP00-0BH1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationType H1

Product function

I&M dataYes; Asset data

Supply voltage

Rated value (DC)24 V

Current carrying capacity

up to 70 °C, max.10 A; Permitted load current of the potential group depending on the number of terminal blocks

For process terminals, max.2 A

Hardware configuration

Temperature sensorYes; For internal reference junction with connecting thermocouple

Formation of potential groups

support of potential groupsYes

New potential groupNo

Potential group continued from the leftYes

Slots

Number of slots1

Temperature compensation

— internal temperature compensationYes

Potential separation

between backplane bus and supply voltageYes; 3 000 V DC/1 min, type test

between potential groups (power bus)Yes; 1 500 V DC/1 min, type test (SELV / PELV to functional ground FE)

between process terminals and supply voltageYes; 1 500 V DC/1 min, type test

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

Dimensions

Width22.5 mm

Height175 mm

Depth77 mm

Weights

Weight, approx.80 g

Accessories 9

Genuine accessories that can be used with the Siemens 6DL1193-6TP00-0BH1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6DL1193-6BH00-0RM0	Zorunlu ek ürün · Carrier module
6DL1193-6BH00-0SM0	Zorunlu ek ürün · Carrier module
6DL1193-6AF00-0AA0	Zorunlu ek ürün · BusAdapter
6DL1193-6AG00-0AA0	Zorunlu ek ürün · BusAdapter
6DL1193-6AR00-0AA0	Zorunlu ek ürün · BusAdapter
6DL1193-6MC00-0AA0	Zorunlu ek ürün · Mounting rail
6DL1193-6MD00-0AA0	Zorunlu ek ürün · Mounting rail
6DL1193-6AG20-0AA0	Zorunlu ek ürün · BusAdapter
6DL1193-6AG40-0AA0	Zorunlu ek ürün · BusAdapter
