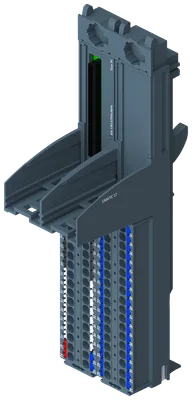

Siemens 6DL1193-6TP00-0BP0
SIMATIC ET 200SP HA, terminal block, type P0, 64 push-in terminals, Width: 45 mm
Product type designationType P0
I&M dataYes
Rated value (DC)24 V
Number of outputs32
Output voltage (DC)24 V
Short-circuit protectionYes; Per output, thermal
About This Product
SIMATIC ET 200SP HA, terminal block, type P0, 64 push-in terminals, Width: 45 mm
Siemens 6DL1193-6TP00-0BP0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationType P0
Product function
I&M dataYes
Supply voltage
Rated value (DC)24 V
Input current
Current consumption, max.640 mA; With one 20 mA encoder supply per channel
Encoder supply
Number of outputs32
Output voltage (DC)24 V
24 V encoder supply
Short-circuit protectionYes; Per output, thermal
Output current, max.20 mA; per output
Output current per module, max.640 mA
Current carrying capacity
up to 70 °C, max.10 A; Permitted load current of the potential group depending on the number of terminal blocks
For process terminals, max.2 A
Formation of potential groups
support of potential groupsYes
New potential groupNo
Potential group continued from the leftYes
Slots
Number of slots1
Potential separation
between backplane bus and supply voltageYes; 3 000 V DC/1 min, type test
between potential groups (power bus)Yes; 1 500 V DC/1 min, type test (SELV / PELV to functional ground FE)
between process terminals and supply voltageYes; 1 500 V DC/1 min, type test
Ambient temperature during operation
horizontal installation, min.-40 °C
horizontal installation, max.70 °C
vertical installation, min.-40 °C
vertical installation, max.60 °C
Dimensions
Width45 mm
Height175 mm
Depth77 mm
Weights
Weight, approx.155 g
