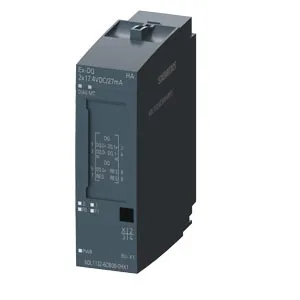

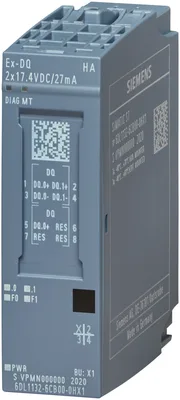

Siemens 6DL1132-6CB00-0HX1

Please take care of the sales information regarding to existing certificates. SIOS article 109796307 digital ex-i output module, Ex-DQ 2x17,4VDC/27mA suitable for BaseUnit type X1, channel diagnostics

SiemensMFR # 6DL1132-6CB00-0HX1SKU # YLSF1QMSWNFQIH

Product type designationEx-DQ 2x17.4VDC/27mA

Firmware versionV1.0

FW update possibleYes

usable BaseUnitsBU type X1

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6DL1132-6CB00-0HX1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationEx-DQ 2x17.4VDC/27mA

Firmware versionV1.0

FW update possibleYes

usable BaseUnitsBU type X1

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV16

STEP 7 configurable/integrated from versionV5.6 SP2

PCS 7 configurable/integrated from versionV9.1

PCS neo can be configured/integrated from versionV3.1

PROFINET from GSD version/GSD revisionGSDML V2.35

Operating mode

DQYes

MSOYes

Redundancy

Redundancy capabilityNo

Input current

Current consumption (rated value)80 mA; at 27 mA per channel

Current consumption, max.80 mA; at 27 mA per channel

Output voltage

Rated value (DC)17.4 V; See output characteristic in manual

Power loss

Power loss, typ.1.2 W

Address space per module

Address space per module, max.1 byte; + 1 byte for QI information

Hardware configuration

Mechanical coding elementYes

Selection of BaseUnit for connection variants

2-wire connectionBU type X1

Digital outputs

Number of digital outputs2

Current-sinkingNo

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionYes

Open-circuit detectionYes; capacitive loads can cause wire-break diagnostics when the channel is switched off

Overload protectionYes

Limitation of inductive shutdown voltage toDQ.n- (-1 V)

Switching capacity of the outputs

with resistive load, max.27 mA; See output characteristic in manual

with inductive load, max.27 mA; See output characteristic in manual

Load resistance range

lower limit480 Ω; parallel operation 240 ohm, see output characteristic in manual

upper limit10 kΩ; parallel operation 5 kOhm, see output characteristic in manual

Output current

for signal "1" rated value27 mA

for signal "0" residual current, max.100 µA; 250 µA test current for wire break diagnostics, parallel operation 500 µA

Output delay with resistive load

"0" to "1", typ.50 µs

"1" to "0", typ.100 µs

Parallel switching of two outputs

for upratingYes

Switching frequency

with resistive load, max.500 Hz

with inductive load, max.500 Hz

Total current of the outputs

Current per channel, max.27 mA

Current per module, max.54 mA

horizontal installation

— up to 70 °C, max.54 mA

vertical installation

— up to 60 °C, max.54 mA

Cable length

shielded, max.500 m; Ex characteristic values must be observed

unshielded, max.500 m; Ex characteristic values must be observed

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Maintenance interruptYes

Diagnoses

Diagnostic information readableYes

Monitoring the supply voltageYes

— parameterizableYes

Wire breakYes; channel by channel

Short-circuitYes; channel by channel

Group errorYes

Diagnostics indication LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

maximum values for connecting terminals for gas group IIC

Uo (no-load voltage), max.19.4 V

Io (short-circuit current), max.133 mA; parallel operation 266 mA

Po (power output), max.645 mW; parallel operation 1 290 mW

Co (permissible external capacity), max.232 nF; parallel operation 220 nF

Lo (permissible external inductivity), max.1.9 mH; parallel operation 328 uH

Um (voltage at non-intrinsically safe connecting terminals), max.60 V

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes; Electrical isolation between the channels and input voltage PME

Isolation

Isolation tested withfurther information on insulation can be found in the "ET 200SP HA / ET 200SP modules for devices in hazardous areas” System Manual

insulation of the field circuits to local ground acc. to IEC/EN 60079-11 tested with707 V DC (type test)

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Dimensions

Width20 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.55 g
