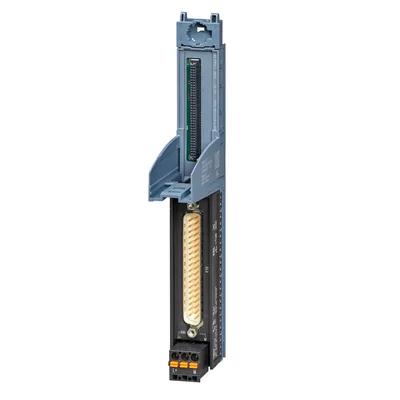

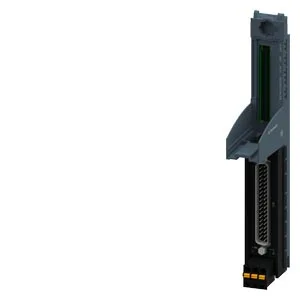

Siemens 6DL1193-6TC00-0DH0
SIMATIC ET 200SP HA, terminal block, type H0, D-sub plug 37-pole, 24 V infeed per TB, width: 22.5 mm
Product type designationtype H0, SUB-D
I&M dataYes; Asset data
Rated value (DC)24 V
up to 70 °C, max.10 A
For process terminals, max.2 A
Temperature sensorNo
About This Product
SIMATIC ET 200SP HA, terminal block, type H0, D-sub plug 37-pole, 24 V infeed per TB, width: 22.5 mm
Siemens 6DL1193-6TC00-0DH0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationtype H0, SUB-D
Product function
I&M dataYes; Asset data
Supply voltage
Rated value (DC)24 V
external protection for power supply linesYes; 24 V DC / 10 A (MCB with tripping characteristic type B or C, quick-response device protection fuse with sufficient breaking capacity, electronic fuse with characteristic according to type B or C)
Current carrying capacity
up to 70 °C, max.10 A
For process terminals, max.2 A
Hardware configuration
Temperature sensorNo
Formation of potential groups
support of potential groupsNo; no Powerbus
Slots
Number of slots1
Temperature compensation
— internal temperature compensationNo
Potential separation
between backplane bus and supply voltageYes; 3 000 V DC/1 min, type test
between potential groups (power bus)Yes; 1 200 V DC/1 min, type test (SELV / PELV to functional ground FE)
between process terminals and supply voltageYes; 1 200 V DC/1 min, type test
Ambient temperature during operation
horizontal installation, min.-40 °C
horizontal installation, max.70 °C
vertical installation, min.-40 °C
vertical installation, max.60 °C
Dimensions
Width22.5 mm
Height175 mm
Depth77 mm
Weights
Weight, approx.92 g
