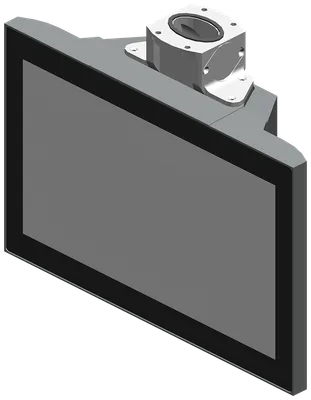

Siemens 6AV7863-5MA15-2NA0

SIMATIC IFP1500 V2 PRO, 15" multi-touch display (16:9) with 1920x1080 pixel resolution, PRO variant support arm, for 24 V DC, DisplayPort, can be placed up to 100 m away HDBaseT, USB on the rear side, neutral design

SiemensMFR # 6AV7863-5MA15-2NA0SKU # YLSRAP0JX9QRFZY

Product type designationIFP1500 V2 PRO

Short designationFlat Panel 15" multi-touch ext.

Design of displayTFT widescreen display, LED backlighting

Screen diagonal15.6 in; 15"

Screen diagonal [cm]39 mm

Display width344.2 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7863-5MA15-2NA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIFP1500 V2 PRO

Short designationFlat Panel 15" multi-touch ext.

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal15.6 in; 15"

Screen diagonal [cm]39 mm

Display width344.2 mm

Display height193.5 mm

On Screen Display (OSD) configurationNo; Adjustable by means of software

Number of colors16 777 216; 24 bit

Viewing angle178° x 178°

Resolution (pixels)

Image resolution1 920 x 1 080

Horizontal image resolution1 920 pixel

Vertical image resolution1 080 pixel

Pixel size, horizontal0.17925 mm

Pixel size, vertical0.17925 mm

General features

Brightness/contrast400 cd/m² / 1 000:1

non-reflective and tempered mineral glass screenYes

Detachable from computer unit100 m; HDBaseT protocol

Luminance400 cd/m²

Backlighting

Type of backlightingLED

MTBF backlighting (at 25 °C)50 000 h; At 25°C

Backlight dimmableYes; 0-100 %

Control elements

Control elementsmulti-touch screen

Input device

Integrated mouse cursor controlYes

Touch operation

Design as touch screenYes; Projective-capacitive

Design as multi-touch screenYes; Projective-capacitive

Monitor keyboardYes

Installation type/mounting

DesignSupport arm mounting

Front mountingNo

Support arm mountingYes; Suitable for support arm without extension components

Stand mountingNo

VESA mountingYes; With VESA adapter set

Mounting in portrait format possibleNo

maximum permitted forward tilt angle from vertical45°

maximum permitted backward tilt angle from vertical45°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V; PELV / SELV floating

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)1 A

Current consumption, max.1.3 A

Starting current inrush I²t0.5 A²·s

Power loss

Power loss, typ.24 W

Power loss, max.30 W

Interfaces

Number of USB interfaces2; USB 2.0 type A

USB on the rearYes; 2x onboard

Connection for keyboard/mouseUSB

Video interfaces

DisplayPortYes; Display port V1.2

Touch interfaces

USBYes

Degree and class of protection

IP (at the front)IP65

IP (rear)IP65

Enclosure Type 4 at the frontYes

Standards, approvals, certificates

CE markYes

cULusYes; Corresponds to UL 508

FM approvalYes; Class I Div. 2

RCM (formerly C-TICK)Yes

EAC (formerly Gost-R)Yes

EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]407.03365 kg

— global warming potential, (during production) [CO2 eq]72.70921 kg

— global warming potential, (during operation) [CO2 eq]347.89539 kg

— global warming potential, (after end of life cycle) [CO2 eq]-15.31161 kg

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

FM Class I Division 2No

Ambient temperature during operation

min.0 °C

max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.3 500 m

Relative humidity

Operation, max.95 %; no condensation

Vibrations

Vibration load in operation1 gn

Vibration load during transport/storage1 gn

Shock testing

Shock load during operation15 gn

shock acceleration during storage/transport15 gn

Mechanics/material

Enclosure material (front)With neutral design

AluminumYes

Aluminum castingYes

GlassYes; at front

Enclosure material (rear)aluminum

Dimensions

Width of the housing front396 mm

Height of housing front255 mm; Without basic adapter

Weights

Weight (without packaging)5.3 kg

Weight (with packaging)6 kg
