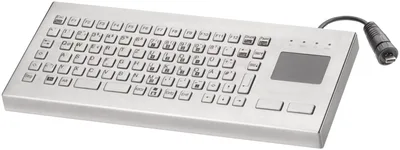

Siemens 6AV6881-0AU14-1DB0

USB stainless steel keyboard, international layout, IP65, USB 2.0 plug type A with IP67, tamper-proof, keyboard shelf with mounting option, scope of supply: 1 keyboard including mounting accessories

SiemensMFR # 6AV6881-0AU14-1DB0SKU # YLSA5WJY1KC6GSP

Product type designationUSB keyboard international US

Version of actuating elementLong-stroke key with 2 mm contact travel

Movement trackingCapacitive touchpad

DesignKeyboard with long-stroke keys

Keyboard assignment86 (International QWERTY, US version)

Color of the buttonsStainless steel

Have questions?Chat on WhatsApp

About This Product

USB stainless steel keyboard, international layout, IP65, USB 2.0 plug type A with IP67, tamper-proof, keyboard shelf with mounting option, scope of supply: 1 keyboard including mounting accessories

Siemens 6AV6881-0AU14-1DB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationUSB keyboard international US

Control elements

Version of actuating elementLong-stroke key with 2 mm contact travel

Operating principle of the actuating elementCarbon pellet on gold-plated PCB

Input device

Scroll wheelNo; Cursor control possible, left and right mouse button

Movement trackingCapacitive touchpad

Keyboard

DesignKeyboard with long-stroke keys

Keyboard assignment86 (International QWERTY, US version)

Color of the buttonsStainless steel

Color of the key inscriptionBlack, laser-inscribed

Key illuminationNo

Function keysYes

— Number of function keys12

— Number of function keys with LEDs0

— ProgrammableNo

Number padYes; Integrated into key layout

status LED displaysYes; Num, FN, Shift, Scroll lock

— for number padYes

— for Shift keysYes

— 2-key rolloverYes; 1 finger, slow typing, robust industry standard

— n-key rolloverNo

Connection type

USBYes; USB 2.0 type A

PS/2No

Cable length0 m; See cable length

Frame size/design

StandardYes; For industrial applications

Installation type/mounting

MountingDesktop, PRO support arm, drawer

Mounting typeSuitable for PRO devices

Supply voltage

Rated value (DC)5 V; 4.35 V to 5.25 V (USB)

Input current

Current consumption (rated value)55 mA; including touchpad and LED

Battery

Battery-operatedNo; maintenance-free

Interfaces

Number of USB interfaces1; USB 2.0 (IP67 plug enclosure)

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes; EN 55022, EN 55024

Degree and class of protection

IP (all-round)IP65

IP (at the front)USB plug, meets IP67 with screws, if only inserted then without IP

Standards, approvals, certificates

CE markYes

UKCA markYes

UL approvalYes; in preparation

cULusYes; in preparation

KC approvalYes

EAC (formerly Gost-R)Yes; in preparation

CCCNo; not necessary

BISNo; required for export to India

RoHS conformityYes

China RoHS complianceYes; in preparation

Suitable for safety functionsNo

Ambient conditions

Suited for indoor useYes

Suited for outdoor useNo; > 0 °C possible under certain conditions

Ambient temperature during operation

min.0 °C

max.60 °C

Ambient temperature during storage/transportation

min.-25 °C

max.85 °C

Relative humidity

Operation, max.80 %; no condensation

Condensation permissibleNo

Runs under operating system

Windows CEYes

Windows VistaYes

Windows XPYes

Windows 7Yes

Windows 8Yes

Windows 10Yes

Cables

Cable length0.4 m; USB

Mechanics/material

Stainless steelYes; Front stainless steel AISI 304

Enclosure material (rear)aluminum

Material of the front ringGenerally silicone-free PORON seal

Enclosure color (front)INOX AISI 304

Enclosure color (rear)Aluminum paint

Torques/forces

Breakdown torque1.5 N·m; Switching force buttons 1.5 N to 1.8 N

Service life

Number of operating cycles, keys20 000 000; Operations (minimum)

Dimensions

Width369 mm

Height18 mm

Depth130 mm; Without cable outlet (with + 3 cm)

Scope of supply

Delivery quantity in pieces1

Other

printable with laser printerNo

MerchandiseYes; GETT KV27610 / VES001681

Manufacturer nameGETT Gerätetechnik GmbH

Manufacturer's addressMittlerer Ring 1, 08233 Treuen (Vogtland), Germany

contacting the manufacturerPhone +49 37468 660-0, email: info@gett.de

Target devicesFor SIMATIC HMI devices and IPCs with the appropriate slot

Accessories 4

Genuine accessories that can be used with the Siemens 6AV6881-0AU14-1DB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV6881-0AF21-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF22-0DC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF22-0LC0	Aksesuar · Bus cable · input devices, cables
6AV7674-1NF01-0AA0	Aksesuar · Accessories · input devices, cables
