How can I get a price quote for Siemens 6AV6881-0AF22-0DC0?

You can request a fast quote for Siemens 6AV6881-0AF22-0DC0 from Yılsa Engineering. Reference part number YLSNSGJX39VZE2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV6881-0AF22-0DC0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV6881-0AF22-0DC0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV6881-0AF22-0DC0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

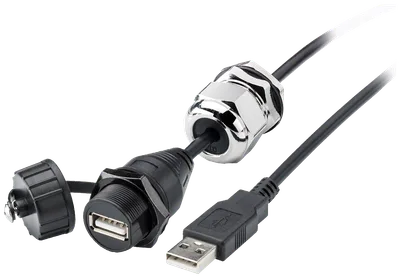

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AV6881-0AF22-0DC0

USB cable type B, female USB A, IP67, male USB A, IP20, with M20 screw sealing, length: 0.8 m scope of supply: 1 USB cable with screw sealing

SiemensMFR # 6AV6881-0AF22-0DC0SKU # YLSNSGJX39VZE2

Product type designationConnecting cable USB

USBYes; USB 2.0 Typ x IP67 to Typ A IP20

CE markNo; No CE marking obligation

RoHS conformityYes

min.0 °C

max.55 °C

Have questions?Chat on WhatsApp

About This Product

USB cable type B, female USB A, IP67, male USB A, IP20, with M20 screw sealing, length: 0.8 m scope of supply: 1 USB cable with screw sealing

Siemens 6AV6881-0AF22-0DC0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationConnecting cable USB

Connection type

USBYes; USB 2.0 Typ x IP67 to Typ A IP20

Degree and class of protection

IP (all-round)On the female side up to IP65 screw connection, then IP20

Standards, approvals, certificates

CE markNo; No CE marking obligation

RoHS conformityYes

Ambient conditions

Suited for indoor useYes; Always comply with the operating instructions of the target device.

Ambient temperature during operation

min.0 °C

max.55 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.95 %

Cables

Cable length0.8 m

smallest bending radius0 mm; 10x d (cable diameter)

Color of cable sheathBlack

Mechanics/material

PlasticYes; Connector enclosure

Torques/forces

Tightening torque, min.1 N·m; Hand-tight

Tightening torque, max.1.5 N·m; Hand-tight

Scope of supply

Delivery quantity in pieces1; USB 2.0 cable (max. 500 mA)

Other

MerchandiseYes; USB-IP67-800M-C7294-Siemens

Manufacturer nameGETT Gerätetechnik GmbH

Manufacturer's addressMittlerer Ring 1, 08233 Treuen (Vogtland), Germany

Target devicesFor Panels and PC systems with suitable interface; observe operating instructions of the target device!

Note:Request certificates and drawings from manufacturer
