How can I get a price quote for Siemens 6AV7863-4MA00-2AA0?

You can request a fast quote for Siemens 6AV7863-4MA00-2AA0 from Yılsa Engineering. Reference part number YLSXUXH227X8012. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV7863-4MA00-2AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV7863-4MA00-2AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV7863-4MA00-2AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

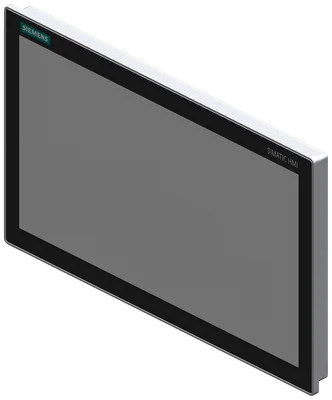

Siemens 6AV7863-4MA00-2AA0

SIMATIC IFP2200 V2, 22" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit, for 24 V DC, display port/DVI interface, including DP/USB cable 1.8 m, on the rear USB, standard design

SiemensMFR # 6AV7863-4MA00-2AA0SKU # YLSXUXH227X8012

Product type designationIFP2200 V2

Short designationSIMATIC IFP2200 V2

Design of displayTFT widescreen display, LED backlighting

Screen diagonal21.5 in; 22"

Screen diagonal [cm]56 cm

Display width476 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7863-4MA00-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIFP2200 V2

Short designationSIMATIC IFP2200 V2

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal21.5 in; 22"

Screen diagonal [cm]56 cm

Display width476 mm

Display height268 mm

On Screen Display (OSD) configurationNo; Adjustable by means of software

Number of colors16 777 216; 24 bit

Viewing angle170° x 170°

Resolution (pixels)

Image resolution1 920 x 1 080

Horizontal image resolution1 920 pixel

Vertical image resolution1 080 pixel

Pixel size, horizontal0.2475 mm

Pixel size, vertical0.2475 mm

General features

Brightness/contrast250 cd/m² / 1 000:1

Detachable from computer unit5 m

Luminance250 cd/m²

Backlighting

Type of backlightingLED

MTBF backlighting (at 25 °C)50 000 h; At 25°C

Backlight dimmableYes; 0-100 %

Control elements

Control elementsmulti-touch screen

Input device

Integrated mouse cursor controlYes; Also externally via USB

Touch operation

Design as touch screenYes; Projective-capacitive

Design as multi-touch screenYes; Projective-capacitive

Monitor keyboardYes; If supported by operating system

Installation type/mounting

DesignBuilt-in unit

Front mountingYes

VESA mountingYes; VESA 100 x 100 integrated

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

Built-in unitYes; Portrait mode possible

maximum permitted forward tilt angle from vertical45°

maximum permitted backward tilt angle from vertical45°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)1 A

Current consumption, max.1.3 A

Inrush current, max.2 A

Starting current inrush I²t0.5 A²·s

Power loss

Power loss, typ.24 W

Power loss, max.30 W

Interfaces

Number of USB interfaces2; USB 2.0 type A

USB on the rearYes; 2x onboard

Video interfaces

DVI-DYes

DisplayPortYes; Display port V1.2

Touch interfaces

USBYes

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Enclosure Type 12 at the frontYes

Standards, approvals, certificates

Certificate of suitabilityhazardous zone 2/22; shipbuilding

CE markYes

UL approvalYes; cULus, cUL

FM approvalYes; Class I Div. 2

EAC (formerly Gost-R)Yes

EMCCE, EN 55011, EN 61000-6-4, EN 61000-6-2

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]424.98835 kg

— global warming potential, (during production) [CO2 eq]90.85845 kg

— global warming potential, (during operation) [CO2 eq]347.89539 kg

— global warming potential, (after end of life cycle) [CO2 eq]-16.20242 kg

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)Yes

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Ambient temperature during operation

min.0 °C

max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.3 500 m

Relative humidity

Operation, max.90 %; no condensation

Vibrations

Vibration load in operation10 m/s²

Vibration load during transport/storage10 m/s²

Shock testing

Shock load during operation150 m/s²

shock acceleration during storage/transport250 m/s²

Mechanics/material

AluminumYes

Aluminum castingYes

GlassYes; at front

Enclosure material (rear)aluminum

Dimensions

Width of the housing front529 mm

Height of housing front331 mm

Mounting cutout, width513 mm; Tolerance: +1 mm

Mounting cutout, height315 mm; Tolerance: +1 mm

mounting depth63.4 mm

Weights

Weight (without packaging)6.4 kg

Weight (with packaging)8.4 kg

Accessories 31

Genuine accessories that can be used with the Siemens 6AV7863-4MA00-2AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV6671-8XA00-0AX0	Aksesuar · Connection plug · HMI connecting components
6AV2181-8AT00-0AX1	Aksesuar · Accessories · input devices, cables
6AV7860-0DH50-0AA0	Aksesuar · Cable · process coupling, connecting cables
6AV7860-0DH30-0AA0	Aksesuar · Cable · process coupling, connecting cables
6AV7860-0BH50-0AA0	Aksesuar · line · process coupling, connecting cables
6AV7860-0BH30-0AA0	Aksesuar · line · process coupling, connecting cables
6AV6645-7AB14-0AS1	Aksesuar · Accessories
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV7860-0CH50-0AA0	Aksesuar · line · input devices, cables
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV6881-0VJ22-1AA0	Aksesuar · protective film · protective films
6AV6881-0VJ22-0AA0	Aksesuar · protective film · protective films
6ES7193-4JB00-0AA0	Aksesuar · Connection plug · HMI connecting components
6AV6881-0AU14-1DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AF22-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF22-0DC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0VH21-2BA0	Aksesuar · Accessories (mounting) · protective covers, protective caps
6AV6881-0VH21-2AA0	Aksesuar · Accessories (mounting)
6AV6881-0VD33-0DA0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV6881-6AD10-0AA0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV6671-8XK00-0AX3	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
