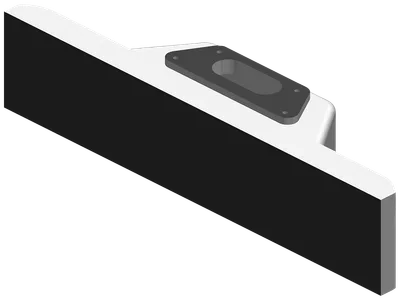

Siemens 6AV7674-1LA51-0AA0

Extension unit 19" hardwired for mounting on all fully IP65-enclosed 16:9 HMI/IPC devices. For the flexible installation of operator controls, 10 mounting positions, max. 8 operator controls + 1 emergency stop equippable; connection via hardwired connection (without equipment)

SiemensMFR # 6AV7674-1LA51-0AA0SKU # YLSNCQZT20OAQ

Product type designationExtension Unit 19" hardwired

Connection type of the LED module12-pin connector

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Type of supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7674-1LA51-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationExtension Unit 19" hardwired

Connection type

Connection type of the LED module12-pin connector

Connection type of the contacts of the control elements16-pin connector

Connection type of the safety-related contacts (emergency stop)8-pin connector

Installation type/mounting

MountingFor mounting on a 16:9 HMI / IPC PRO device (lower part)

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Number of slots for command devices and signaling units10; Max. 8 control elements + 1 emergency stop button can be mounted (refer to manual)

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)10 mA; without load

Power

Active power input, typ.0.1 W

Emitted active power5 W; Max. with lamp load

Degree and class of protection

IP (all-round)IP65

Enclosure Type 4 at the frontYes

Standards, approvals, certificates

CE markYes

UL approvalYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Suitable for safety functionsYes; e.g. installation of emergency stop

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Relative humidity

Operation, max.90 %; no condensation

Cables

Cable length30 m

Mechanics/material

aluminumYes

AluminumYes; Knockout covered with black film

Dimensions

Width462 mm

Height99 mm

Thickness100.65 mm

Weights

Weight (without packaging)2.7 kg

Scope of supply

Delivery quantity in pieces1

Components includedall connectors required for customer interfaces

Accessories 21

Genuine accessories that can be used with the Siemens 6AV7674-1LA51-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV7674-1LB20-0AA0	Aksesuar · label
6ES7193-4JB00-0AA0	Aksesuar · Connection plug · HMI connecting components
6AV6671-3XY38-4AX0	Aksesuar · Connection plug · HMI connecting components
6AV6671-3XY48-4AX0	Aksesuar · Connection plug · HMI connecting components
6GT2831-6AA60	Aksesuar · Identification systems · RFID
6GT2831-6CA60	Aksesuar · Identification systems · RFID
6GT2831-6BA60	Aksesuar · Identification systems · RFID
6AV7674-0LX01-0AA0	Aksesuar · Accessories
6AV7674-0LX00-0AA0	Aksesuar · Accessories · distribution boards, HUBs
6AV6881-0HE20-0AA0	Aksesuar · Connection plug · HMI connecting components
6AV7674-1MG00-0AA0	Aksesuar · Accessories
6AV7674-1MG50-0AA0	Aksesuar · Accessories
6AV7674-1ME50-0AA0	Aksesuar · Accessories
6AV7674-1ME00-0AA0	Aksesuar · Accessories
6AV7674-1MD00-0AA0	Aksesuar · Accessories
6AV7674-1MC00-0AA0	Aksesuar · Accessories
6AV7674-1MB00-0AA0	Aksesuar · Accessories
6AV7674-1MA00-0AA0	Aksesuar · Accessories
6AV7674-1LB30-0AA0	Aksesuar · label
6AV7674-1MF00-0AA0	Aksesuar · Accessories
6GT2831-6BA60-0AX0	Aksesuar · Identification systems · RFID
