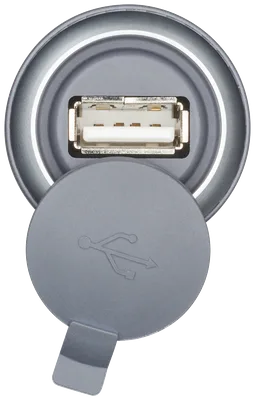

Siemens 6AV7674-1MF00-0AA0

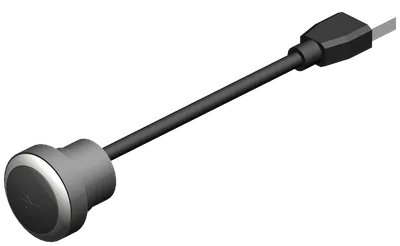

USB interface for front mounting in Extension Unit, with cable, plug USB 2.0 type A, IP65 with closed protective cap, scope of supply: 1 USB socket with 630 mm connection cable, including 1 protective cap

SiemensMFR # 6AV7674-1MF00-0AA0SKU # YLSIESWRO93NQ5N

Product type designationUSB interface for Extension Unit

USBYes; USB 2.0 type A

Cable length0.7 m

Mounting typeThreaded ring

IP (at the front)IP20 when protective cover is open

CE markYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7674-1MF00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationUSB interface for Extension Unit

Connection type

USBYes; USB 2.0 type A

Cable length0.7 m

Installation type/mounting

Mounting typeThreaded ring

Front mountingYes; Front plate attachment in an Extension Unit for 16:9 PRO devices

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Degree and class of protection

IP (all-round)IP65 fully enclosed (when protective cover is closed)

IP (at the front)IP20 when protective cover is open

Standards, approvals, certificates

CE markYes

UKCA markYes

UL approvalYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.3 500 m

Relative humidity

Operation, max.90 %

Condensation permissibleNo

Runs under operating system

otherYes; Windows 7 Ultimate 32-bit / 64-bit, MUI; Windows Embedded Standard 7 E/P, 32-bit / 64-bit

Cables

Cable length0.5 m

smallest bending radius0 mm

Mechanics/material

Materialaluminum

Enclosure color (front)Silver metallic

Service life

Number of operating cycles, keys1 500; Insertion cycles

Dimensions

mounting depth10 mm

Mounting diameter22.3 mm

Weights

Weight (without packaging)0.13 g

Weight (with packaging)0.14 g

Scope of supply

Components includedUSB socket with cable and connector, threaded ring

Other

Target devicesSuitable for Extension Units of the 16:9 HMI/IPC PRO devices (refer to manual)
