How can I get a price quote for Siemens 6AV6671-3XY48-4AX0?

You can request a fast quote for Siemens 6AV6671-3XY48-4AX0 from Yılsa Engineering. Reference part number CEY-8EF3B038777D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV6671-3XY48-4AX0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV6671-3XY48-4AX0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV6671-3XY48-4AX0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

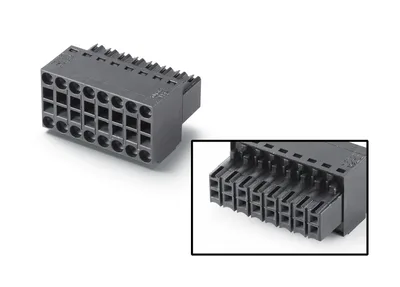

Siemens 6AV6671-3XY48-4AX0

plug, female, 16-pole, 180°, max.: 1.5 mm2, scope of supply: 10 plugs

SiemensMFR # 6AV6671-3XY48-4AX0SKU # CEY-8EF3B038777D

Product type designationConnector, female, 16-pin

Mounting typeConductor cross-section 0.14 to 1.5 mm²

Rated value (DC)24 V

Current consumption (rated value)9 A; Typical, maximum value

CE markYes

CSA approvalYes; 200039-1121690

Have questions?Chat on WhatsApp

About This Product

plug, female, 16-pole, 180°, max.: 1.5 mm2, scope of supply: 10 plugs

Siemens 6AV6671-3XY48-4AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationConnector, female, 16-pin

Installation type/mounting

Mounting typeConductor cross-section 0.14 to 1.5 mm²

Wall mounting/direct mountingYes; can be plugged into SIMATIC HMI device

Supply voltage

Rated value (DC)24 V

Input current

Current consumption (rated value)9 A; Typical, maximum value

Interfaces

Number of pins HMI-side16; Female, spring-loaded terminals, 3.5 mm grid

Number of pins device-side16; Female, spring-loaded terminals 0.75 mm²

Standards, approvals, certificates

CE markYes

CSA approvalYes; 200039-1121690

UL approvalYes; E60693

cULusYes; cURus

EAC (formerly Gost-R)Yes

RoHS conformityYes

Use in hazardous areas

ATEX Zone 2Yes; Device-dependent, see operating instructions

ATEX Zone 22Yes; Device-dependent, see operating instructions

IECEx Zone 2Yes; Device-dependent, see operating instructions

IECEx Zone 22Yes; Device-dependent, see operating instructions

cULus Class I Zone 1Yes; Device-dependent, see operating instructions

cULus Class I Zone 2, Division 2Yes; Device-dependent, see operating instructions

FM Class I Division 2Yes; Device-dependent, see operating instructions

Marine approval

Germanischer Lloyd (GL)Yes; Always comply with the operating instructions of the target device.

American Bureau of Shipping (ABS)Yes; Always comply with the operating instructions of the target device.

Bureau Veritas (BV)Yes; Always comply with the operating instructions of the target device.

Det Norske Veritas (DNV)Yes; Always comply with the operating instructions of the target device.

Korean Register of Shipping (KRS)Yes; Always comply with the operating instructions of the target device.

Lloyds Register of Shipping (LRS)Yes; Always comply with the operating instructions of the target device.

Nippon Kaiji Kyokai (Class NK)Yes; Always comply with the operating instructions of the target device.

Polski Rejestr Statkow (PRS)Yes; Always comply with the operating instructions of the target device.

Chinese Classification Society (CCS)Yes; Always comply with the operating instructions of the target device.

Ambient conditions

Suited for indoor useYes; Flammability class according to UL 94-V0

Suited for outdoor useYes; possible under certain conditions

Ambient temperature during operation

min.0 °C

max.55 °C

Ambient temperature during storage/transportation

min.-20 °C

max.70 °C

Relative humidity

Operation, max.80 %

Mechanics/material

plasticYes; Insulating material PA66 GF30, actuators PA66/6

PlasticYes; Spring-loaded terminals 1.5 mm²

Enclosure color (front)Black

Service life

Mechanical service life (mating cycles)25

Dimensions

Width28 mm; 16-pin connector

Height15.2 mm

Depth26.25 mm

Weights

Weight, approx.10.5 g

Scope of supply

Delivery quantity in pieces10; Without ejector

Other

MerchandiseNo

Manufacturer nameSIEMENS AG

Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany

Target devicesfor KP8F PN, KP32F PN
