How can I get a price quote for Siemens 6AV6646-1BD22-1AA1?

You can request a fast quote for Siemens 6AV6646-1BD22-1AA1 from Yılsa Engineering. Reference part number YLSKSZJAWPPAOF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV6646-1BD22-1AA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV6646-1BD22-1AA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV6646-1BD22-1AA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

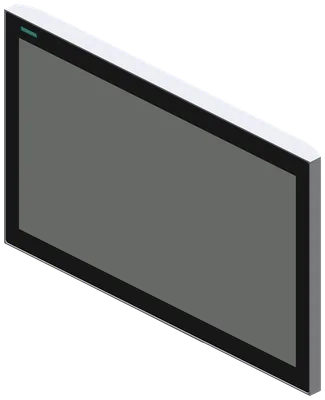

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AV6646-1BD22-1AA1

SIMATIC ITC2200 V3 PRO, industrial thin client, 22" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer, HTML5 and others, standard design, prepared for support arm with expansion elements

SiemensMFR # 6AV6646-1BD22-1AA1SKU # YLSKSZJAWPPAOF

Product type designationITC2200 V3 PRO

Design of displayTFT widescreen display, LED backlighting

Screen diagonal21.5 in

Display width476 mm

Display height267.8 mm

Number of colors16 777 216

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV6646-1BD22-1AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationITC2200 V3 PRO

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal21.5 in

Display width476 mm

Display height267.8 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution1 920 pixel

Vertical image resolution1 080 pixel

General features

non-reflective and tempered mineral glass screenYes

Backlighting

MTBF backlighting (at 25 °C)30 000 h; At 25°C

Backlight dimmableYes; LED, dimmable

Touch operation

Design as touch screenYes

Design as multi-touch screenYes; Projective-capacitive

Monitor keyboardYes

Installation type/mounting

DesignSupport arm mounting

Front mountingNo

Support arm mountingYes; Suitable for support arm and extension components (please refer to manual)

Stand mountingNo

Built-in unitNo

maximum permitted forward tilt angle from vertical35°

maximum permitted backward tilt angle from vertical35°

Supply voltage

Type of supply voltage24 V DC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)1.7 A

Current consumption, max.2.1 A

Starting current inrush I²t0.5 A²·s

Power

Active power input, typ.40.8 W

Interfaces

Number of industrial Ethernet interfaces2; 2 ports (switch)

Number of USB interfaces4; on rear

Connection for keyboard/mouseUSB

Industrial Ethernet

Transmission rate, max.1 000 Mbit/s

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPYes

HTTPSYes

HTMLYes; HTML5

XMLYes

CSSYes

JavaScriptYes

Java VMNo

Protocols (terminal link)

Sm@rtServerYes

RDPYes

VNC viewerYes

CitrixYes

SINUMERIKYes

Degree and class of protection

IP (at the front)IP65

Enclosure Type 4x at the frontYes

Enclosure Type 12 at the frontYes

Standards, approvals, certificates

CE markYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)No; in preparation

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

cULus Class I Zone 2, Division 2Yes

FM Class I Division 2Yes

Marine approval

Germanischer Lloyd (GL)No

American Bureau of Shipping (ABS)No

Bureau Veritas (BV)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (Class NK)No

Polski Rejestr Statkow (PRS)No

Chinese Classification Society (CCS)No

Ambient temperature during operation

min.0 °C

max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Vibrations

Vibration load in operation10 m/s²

Vibration load during transport/storage10 m/s²

Shock testing

Shock load during operation150 m/s²

shock acceleration during storage/transport150 m/s²

Software

Web browserYes; HTML5, CSS

PDF readerYes

Configuration

LocalYes

RemoteYes; Via web page

Online languages

Number of online/runtime languages2; german / english

Peripherals/Options

USB memoryYes; USB storage medium can be connected

Mechanics/material

AluminumYes

Dimensions

Width of the housing front527 mm

Height of housing front329 mm; Without basic adapter

mounting depth163 mm; Without basic adapter

Weights

Weight (without packaging)8.1 kg

Accessories 35

Genuine accessories that can be used with the Siemens 6AV6646-1BD22-1AA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV7674-0LX00-0AA0	Aksesuar · Accessories · distribution boards, HUBs
6AV7674-0KE00-0AA0	Aksesuar · Adapter
6AV7674-0LX01-0AA0	Aksesuar · Accessories
6AV7674-1KA00-0AA0	Aksesuar · spare part
6AV7674-1LA60-0AA0	Aksesuar · Extension Unit
6AV7674-1LA61-0AA0	Aksesuar · Extension Unit
6AV7674-1LA62-0AA0	Aksesuar · Extension Unit
6AV7674-0KD00-0AA0	Aksesuar · Adapter
6AV7674-1LA63-0AA0	Aksesuar · Extension Unit
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV7860-0CH50-0AA0	Aksesuar · line · input devices, cables
6AV7674-1LB40-0AA0	Aksesuar · Cover
6AV7674-1LB50-0AA0	Aksesuar · Adapter
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV7674-1LB10-0AA0	Aksesuar · Accessories
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0VJ22-1AA0	Aksesuar · protective film · protective films
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AD56-3CA0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF22-0DC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0VJ22-0AA0	Aksesuar · protective film · protective films
6AV6881-0AF22-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AD56-0AA0	Aksesuar · Adapter · fixing elements, mounting
6AV7674-1KF00-0AA0	Aksesuar · Adapter
6AV7674-1NF01-0AA0	Aksesuar · Accessories · input devices, cables
6AV7674-1NG00-0AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AD56-2CA0	Aksesuar · Adapter · fixing elements, mounting
6AV6881-0AU14-0DB0	Aksesuar · Accessories · input devices, cables
6AV2181-8AT00-0AX1	Aksesuar · Accessories · input devices, cables
