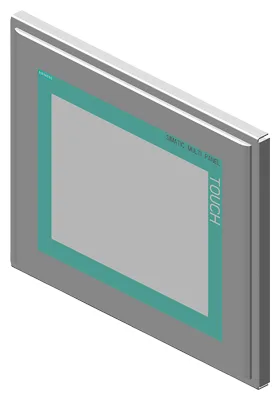

Siemens 6AV6643-0CD01-1AX2

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC MP 277 10" Touch Multi Panel with retentive memory 10.4" TFT display 6 MB configuration memory configurable with WinCC flexible 2008 Standard SP3 Update 5 WinCC Comfort V13 HSP

SiemensMFR # 6AV6643-0CD01-1AX2SKU # CEY-8EF3B0387AC9

Product type designationMP277 10" touch

Customer-specific configurationYes

Design of displayTFT

Screen diagonal10.4 in

Color displayYes

Number of colors65 536

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV6643-0CD01-1AX2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationMP277 10" touch

Customer-specific configurationYes

Display

Design of displayTFT

Screen diagonal10.4 in

Color displayYes

Number of colors65 536

Resolution (pixels)

Horizontal image resolution640 pixel

Vertical image resolution480 pixel

Backlighting

MTBF backlighting (at 25 °C)50 000 h

Control elements

Control elementsTouch screen

Keyboard

— Number of function keys0

— Number of function keys with LEDs0

System keysNo

— Number of system keys0

Numeric keyboardYes

alphanumeric keyboardYes

hexadecimal keyboardYes

Touch operation

Design as touch screenYes; analog, resistive

Connection type

Type of connection for mouse/keyboard/barcode readerUSB / USB / USB

Installation type/mounting

Mounting positionvertical

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Processor

Processor typeARM

Storage

Type of memoryFlash / RAM

Memory available for user data6 Mbyte

Capacity of main memory, max.128 Mbyte

Clock

TypeHardware clock, battery backup, synchronizable

retentiveYes

synchronizableYes

Interfaces

Interfaces/bus type1x RS 422, 1x RS 485, 1x Ethernet (RJ45)

Number of industrial Ethernet interfaces1

Number of RS 485 interfaces1

Number of RS 422 interfaces1

Number of USB interfaces2

Multimedia card/SD card slot1x MultiMediaCard slot

With software interfacesNo

Protocols

Supports protocol for PROFINET IOYes

PROFIsafeNo

PROFIBUSYes

EtherNet/IPNo

Protocols (Ethernet)

TCP/IPYes

Further protocols

MODBUSYes

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

NEMA (front)NEMA 4x (when installed)

Standards, approvals, certificates

CE markYes

UL approvalYes

cULusYes

Suitable for safety functionsNo

Use in hazardous areas

ATEX Zone 2No; certificate no longer available as of 1 October 2020

ATEX Zone 22No; certificate no longer available as of 1 October 2020

FM Class I Division 2Yes

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %

Operating systems

pre-installed operating systemWindows CE

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

Configuration toolWinCC flexible Standard Version 2005 SP1 or higher (to be ordered separately)

STEP 7 Basic (TIA Portal)No

STEP 7 Professional (TIA Portal)No

WinCC flexible CompactNo

WinCC flexible StandardYes

WinCC flexible AdvancedYes

WinCC Basic (TIA Portal)No

WinCC Comfort (TIA Portal)Yes

WinCC Advanced (TIA Portal)Yes

WinCC Professional (TIA Portal)Yes

Online languages

Number of online/runtime languages16

Project languages

Languages per project32

Functionality under WinCC (TIA Portal)

LibrariesYes

Task plannerYes

Help systemYes

Number of characters per info text80

Message system

Number of alarm classes32

Number of messages4 000

Bit messagesYes

— Number of bit messages4 000

Analog messagesYes

— Number of analog messages200

System messages HMIYes

System messages PLCYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Lines1

Number of characters per message80

Number of process values per message8

Acknowledgment groupsYes

Message indicatorYes

First/last valueYes

Recipe management

Number of recipes300

Data records per recipe500

Entries per data record1 000

Recipe memory64 KB integrated Flash, expandable

Variables

Number of variables per device2 048

Number of variables per screen200

Number of variables1 000

Type Date & Time2 048

Limit valuesYes

MultiplexingYes

StructuresYes

Images

Number of configurable images500

Permanent window/defaultYes

Start screen configurableYes

Image selection by PLCYes

Image number in the PLCYes

Image objects

Text objects10 000 text elements

Number of I/O fields per image200

Number of date/time fields200

ReturnYes

Graphics objectBit maps, icons, vector graphics

— Icons1 000

Complex image objects

Status/controlWith SIMATIC S7

dynamic objectsDiagrams, bar graphs, sliders, analog display, invisible buttons

— Number of objects per project1 000

— Number of curve diagrams per image10

MethodsTrend / profile

— Number of bars per chart10

— Number of slides per image10

— Number of analog indicators per image10

Limit value linesYes

Number of alphanumerical fields300

— alphanumeric fields per image200

Number of numerical fields2 048

— numerical fields per image200

Number of password fields2 048

Number of visible switches per project200

— visible switches per image200

— hidden switches per image200

Number of status switches per project200

— Number of status switches per image200

Number of selector switches per project200

— Selector switches per image200

Number of decade switches per project200

— Decade switches per image200

Number of signal lamps per project200

— Signal lamps per image200

Attributes for dynamic objects

Color changeYes

X/Y movementYes

HideYes

Lists

Number of text lists per project500

Number of text lists per image200

Number of entries per text list256

Number of graphics lists per project400

Number of graphic lists per image200

Number of entries per graphics list256

Archiving

Number of archives per device20

Number of measuring points per project20

Number of entries per archive10 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

Memory locationSD and MultiMediaCard

— CSVYes

— using trend curvesYes

Filters

cyclicYes

ToleranceYes

ChangeYes

Security

Number of user groups50

Number of user rights32

Password export/importYes

Logging through printer

Recording/PrintingAlarms, report (shift report), color print, hardcopy

Transfer (upload/download)

Transfer of configurationMPI/PROFIBUS DP, USB, Ethernet, automatic transfer recognition

Process coupling

Connection to controllerS5, S7-200, S7-300/400, TI 505, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus) see chapter "System interfaces"

S7-1200Yes

S7-1500Yes

S7-200Yes

— PPI (point-to-point)Yes

— PPI networkYes

— MPIYes

— PROFIBUS DPYes

— EthernetYes

S7-300/400Yes

— MPIYes

— PROFIBUS DPYes

— PROFINETYes

S5Yes

— PROFIBUS DPYes

TI 505Yes

Allen Bradley (DF1)Yes

Allen Bradley (DF485)Yes

Mitsubishi (FX)Yes

Mitsubishi (MP4)Yes

Telemecanique (Uni-Telway)Yes

OMRON (Host Link)Yes

Modicon (Modbus RTU)Yes

GE-Fanuc (SNP)Yes

Functions

TAB sequenceYes

Calculating functionsYes

AnimateYes

Service tools/configuration aids

Clean screenYes

Touch calibrationYes

Backup/Restore manuallyYes

SimulationYes

Device switchoverYes

Delta transferYes

Expandability/openness

Open Platform ProgramYes

Peripherals/Options

PeripheralsPrinter, barcode reader

SIMATIC HMI MM memory card: Multi Media CardYes

SIMATIC HMI SD memory card: Secure Digital memory cardYes

USB memoryYes

Additional software components loadableYes

Dimensions

Width of the housing front335 mm

Height of housing front275 mm

Mounting cutout, width310 mm

Mounting cutout, height248 mm

mounting depth61 mm

Weights

Weight (without packaging)2.65 kg

Other

free hotlineYes
