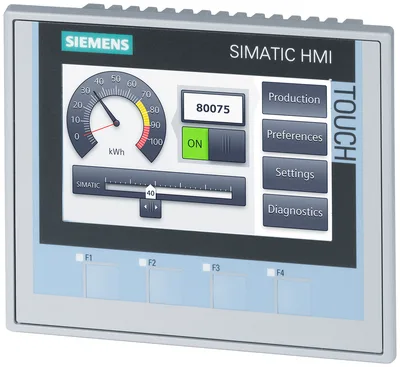

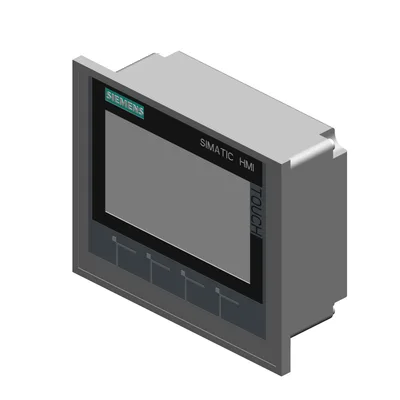

Siemens 6AV2124-2DC01-0AX0

6AV2128-3GB06-0AX1 !installation dimensions! www.siemens.com/modernize-now Comfort Panel, key/touch operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11

SiemensMFR # 6AV2124-2DC01-0AX0SKU # CEY-937FC77F99C6

Product type designationKTP400 Comfort

Design of displayTFT

Screen diagonal4.3 in

Display width95 mm

Display height53.8 mm

Number of colors16 777 216

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV2124-2DC01-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationKTP400 Comfort

Display

Design of displayTFT

Screen diagonal4.3 in

Display width95 mm

Display height53.8 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution480 pixel

Vertical image resolution272 pixel

Backlighting

MTBF backlighting (at 25 °C)80 000 h

Backlight dimmableYes; 0-100 %

Keyboard

— Number of function keys4

— Number of function keys with LEDs4

Keys with LEDYes

System keysNo

Numeric keyboardYes; Onscreen keyboard

alphanumeric keyboardYes; Onscreen keyboard

Touch operation

Design as touch screenYes; Analog-resistive

Expansions for operator control of the process

— F1...Fx4

Direct keys (touch buttons as S7 input I/O)32

Installation type/mounting

Mounting positionvertical

Wall mounting/direct mountingNo

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.13 A

Starting current inrush I²t0.5 A²·s

Power

Active power input, typ.3.1 W

Processor

Processor typeARM

Storage

FlashYes

RAMYes

Memory available for user data4 Mbyte

Type of output

Info LEDNo

Power LEDNo

Error LEDNo

BuzzerYes

SpeakerNo

Clock

Hardware clock (real-time)Yes

Software clockYes

retentiveYes; Back-up duration typically 6 weeks

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1

Number of RS 485 interfaces1; RS 422 / 485 combined

Number of RS 422 interfaces1

Number of RS 232 interfaces0

Number of USB interfaces1; USB 2.0

USB Mini B1; 5-pole

Number of 20 mA interfaces (TTY)0

Number of parallel interfaces0

Number of SD card slots2

With software interfacesNo

Industrial Ethernet

Industrial Ethernet status LED2

Number of ports of the integrated switch1; No switch integrated

Protocols

PROFINETYes

Supports protocol for PROFINET IOYes

IRTNo

PROFIBUSYes

EtherNet/IPYes

MPIYes

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPYes

HTTPSNo

HTMLYes

XMLNo

CSSYes

Active XNo

JavaScriptYes

Java VMNo

Media redundancy

— MRPNo

Further protocols

CANNo

MODBUSYes

Diagnoses

Diagnostic information readableYes; S7 controller

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Standards, approvals, certificates

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2Yes

FM Class I Division 2Yes

Marine approval

Germanischer Lloyd (GL)Yes

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Polski Rejestr Statkow (PRS)No

Operation (vertical installation)

— For vertical installation, min.0 °C

— For vertical installation, max.50 °C

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.40 °C

Operation (vertical installation, portrait format)

— For vertical installation, min.0 °C

— For vertical installation, max.40 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.35 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Operating systems

proprietaryNo

pre-installed operating system

Windows CEYes

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

STEP 7 Basic (TIA Portal)No

STEP 7 Professional (TIA Portal)No

WinCC flexible CompactNo

WinCC flexible StandardNo

WinCC flexible AdvancedNo

WinCC Basic (TIA Portal)No

WinCC Comfort (TIA Portal)Yes; from V11

WinCC Advanced (TIA Portal)Yes; from V11

WinCC Professional (TIA Portal)Yes; from V11

Online languages

Number of online/runtime languages32

Project languages

Languages per project32

Functionality under WinCC (TIA Portal)

LibrariesYes

Web browserYes

Pocket WordYes

Pocket ExcelYes

PDF ViewerYes

Media PlayerYes

SIMATIC WinCC Sm@rtServerYes

SIMATIC WinCC AuditYes

Number of Visual Basic ScriptsYes

time-controlledYes

task-controlledYes

Number of characters per info text70

Message system

Number of alarm classes32

Bit messagesYes

— Number of bit messages2 000

Analog messagesYes

— Number of analog messages50

S7 alarm number procedureYes

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Number of characters per message80

Number of process values per message8

Acknowledgment groupsYes

Message indicatorYes

— Number of entries256

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Recipe management

Number of recipes100

Data records per recipe200

Entries per data record200

Size of internal recipe memory512 kbyte

Recipe memory expandableYes

Variables

Number of variables per device1 024

Number of variables per screen50

Limit valuesYes

MultiplexingYes

StructuresYes

ArraysYes

Images

Number of configurable images500

Permanent window/defaultYes

Global imageYes

Pop-up imagesYes

Slide-in imagesYes

Image selection by PLCYes

Image number in the PLCYes

Image objects

Number of objects per image50

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Date/time fieldsYes

SwitchesYes

ButtonsYes

Graphic displayYes

IconsYes

Geometric objectsYes

Complex image objects

Number of complex objects per screen5

Alarm viewYes

Trend viewYes

User viewYes

Status/controlYes

Sm@rtClient viewYes

Recipe viewYes

f(x) trend viewYes

System diagnostics viewYes

Media PlayerYes

HTML browserNo

PDF displayYes

IP camera displayYes

Bar graphsYes

SlidersYes

Pointer instrumentsYes

Analog/digital clockYes

Lists

Number of text lists per project300

Number of entries per text list30

Number of graphics lists per project100

Number of entries per graphics list30

Archiving

Number of archives per device10

Number of entries per archive10 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

— Memory cardYes

— USB memoryYes

— EthernetYes

— CSVYes

— TXTYes

— RDBYes

Security

Number of user groups50

Number of user rights32

Number of users50

Password export/importYes

SIMATIC LogonYes

Logging through printer

AlarmsYes

Report (shift log)Yes

HardcopyYes

Electronic print to fileYes; PDF, HTML

Character sets

— US EnglishYes

Transfer (upload/download)

MPI/PROFIBUS DPYes

USBYes

EthernetYes

using external storage mediumYes

Process coupling

S7-1200Yes

S7-1500Yes

S7-200Yes

S7-300/400Yes

LOGO!Yes

WinACYes

SINUMERIKYes; with SINUMERIK option package

SIMOTIONYes

Allen Bradley (EtherNet/IP)Yes

Allen Bradley (DF1)Yes

Mitsubishi (MC TCP/IP)Yes

Mitsubishi (FX)Yes

OMRON (FINS TCP)No

OMRON (Host Link)Yes

Modicon (Modbus TCP/IP)Yes

Modicon (Modbus RTU)Yes

OPC UA ClientYes

OPC UA ServerYes

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyYes

SimulationYes

Device switchoverYes

Peripherals/Options

PrinterYes

SIMATIC HMI MM memory card: Multi Media CardYes; Up to 128 MB

SIMATIC HMI SD memory card: Secure Digital memory cardYes; Up to 2 GB

SIMATIC HMI CF memory card Compact Flash CardNo

USB memoryYes

SIMATIC IPC USB Flashdrive (USB stick)Yes; Up to 16 GB

SIMATIC HMI USB stickYes; Up to 8 GB

Network cameraYes

Mechanics/material

PlasticYes

AluminumNo

Stainless steelNo

Dimensions

Width of the housing front140 mm

Height of housing front116 mm

Mounting cutout, width124 mm

Mounting cutout, height100 mm

mounting depth48 mm

Weights

Weight (without packaging)0.6 kg

Weight (with packaging)0.7 kg

Accessories 23

Genuine accessories that can be used with the Siemens 6AV2124-2DC01-0AX0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV6671-8XD00-0AX0	Aksesuar · Adapter · HMI connecting components
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AD56-2CA0	Aksesuar · Adapter · fixing elements, mounting
6ES7648-1AA50-0XG0	Aksesuar · Accessories · service sets
6AV6881-0AD56-0AA0	Aksesuar · Adapter · fixing elements, mounting
6AV6881-0AQ10-0AA0	Aksesuar · Memory card · Storage media
6AV6881-0AU14-1DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AF22-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AD56-3CA0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV2181-8XP00-0AX0	Aksesuar · Memory card · Storage media
6AV2181-4XM00-0AX0	Aksesuar · Accessories · fixing elements, mounting
6AV6671-8XJ00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6671-8XE00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6881-0AF22-0DC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV2181-8AV60-0AX0	Aksesuar · spare part · input tools
