How can I get a price quote for Siemens 6AV2124-0JC01-0AX0?

You can request a fast quote for Siemens 6AV2124-0JC01-0AX0 from Yılsa Engineering. Reference part number CEY-937FC7804F57. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV2124-0JC01-0AX0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV2124-0JC01-0AX0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV2124-0JC01-0AX0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

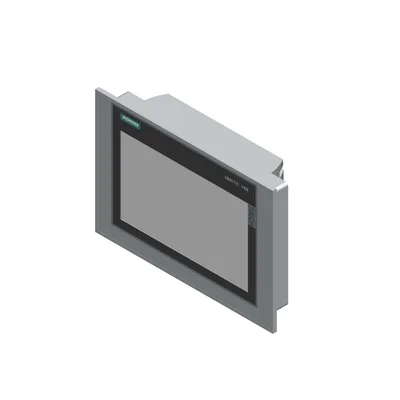

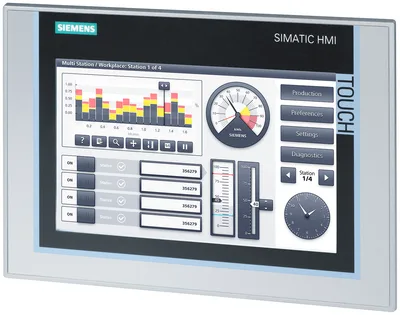

Siemens 6AV2124-0JC01-0AX0

SIMATIC HMI TP900 Comfort, Comfort Panel, touch operation, 9" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11

SiemensMFR # 6AV2124-0JC01-0AX0SKU # CEY-937FC7804F57

Product type designationTP900 Comfort

Design of displayTFT

Screen diagonal9 in

Display width195 mm

Display height117 mm

Number of colors16 777 216

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV2124-0JC01-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationTP900 Comfort

Display

Design of displayTFT

Screen diagonal9 in

Display width195 mm

Display height117 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution800 pixel

Vertical image resolution480 pixel

Backlighting

MTBF backlighting (at 25 °C)80 000 h

Backlight dimmableYes; 0-100 %

Keyboard

— Number of function keys0

— Number of function keys with LEDs0

Keys with LEDNo

System keysNo

Numeric keyboardYes; Onscreen keyboard

alphanumeric keyboardYes; Onscreen keyboard

Touch operation

Design as touch screenYes; Analog-resistive

Expansions for operator control of the process

— F1...Fx0

Direct keys (touch buttons as S7 input I/O)40

Installation type/mounting

Mounting positionvertical

Wall mounting/direct mountingNo

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.75 A

Starting current inrush I²t0.5 A²·s

Power

Active power input, typ.18 W

Processor

Processor typeX86

Storage

FlashYes

RAMYes

Memory available for user data12 Mbyte

Type of output

Info LEDNo

Power LEDNo

Error LEDNo

BuzzerNo

SpeakerYes

Clock

Hardware clock (real-time)Yes

Software clockYes

retentiveYes; Back-up duration typically 6 weeks

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1; 2 ports (switch)

Number of RS 485 interfaces1; RS 422 / 485 combined

Number of RS 422 interfaces0; together with RS 485

Number of RS 232 interfaces0

Number of USB interfaces2; USB 2.0

USB Mini B1; 5-pole

Number of 20 mA interfaces (TTY)0

Number of parallel interfaces0

Number of SD card slots2

With software interfacesNo

Industrial Ethernet

Industrial Ethernet status LED2

Number of ports of the integrated switch2

Protocols

PROFINETYes

Supports protocol for PROFINET IOYes

IRTYes; As of WinCC V12

PROFIBUSYes

EtherNet/IPYes

MPIYes

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPYes

HTTPSYes

HTMLYes

XMLYes

CSSYes

Active XYes

JavaScriptYes

Java VMNo

Media redundancy

— MRPYes; As of WinCC V12

Further protocols

CANNo

MODBUSYes

Diagnoses

Diagnostic information readableYes; S7 controller

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Standards, approvals, certificates

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]254 kg

— global warming potential, (during production) [CO2 eq]61.5 kg

— global warming potential, (during operation) [CO2 eq]194 kg

— global warming potential, (after end of life cycle) [CO2 eq]-1.87 kg

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2Yes

FM Class I Division 2Yes

Marine approval

Germanischer Lloyd (GL)Yes

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Polski Rejestr Statkow (PRS)No

Ambient conditions

Suited for indoor useYes

Suited for outdoor useNo

Operation (vertical installation)

— For vertical installation, min.0 °C

— For vertical installation, max.50 °C; (55 °C, see entry ID: 64847814)

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.40 °C

Operation (vertical installation, portrait format)

— For vertical installation, min.0 °C

— For vertical installation, max.40 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.35 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Operating systems

proprietaryNo

pre-installed operating system

Windows CEYes

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

STEP 7 Basic (TIA Portal)No

STEP 7 Professional (TIA Portal)No

WinCC flexible CompactNo

WinCC flexible StandardNo

WinCC flexible AdvancedNo

WinCC Basic (TIA Portal)No

WinCC Comfort (TIA Portal)Yes; from V11

WinCC Advanced (TIA Portal)Yes; from V11

WinCC Professional (TIA Portal)Yes; from V11

Online languages

Number of online/runtime languages32

Project languages

Languages per project32

Functionality under WinCC (TIA Portal)

LibrariesYes

Web browserYes

Pocket WordYes

Pocket ExcelYes

PDF ViewerYes

Media PlayerYes

SIMATIC WinCC Sm@rtServerYes

SIMATIC WinCC AuditYes

Number of Visual Basic ScriptsYes

time-controlledYes

task-controlledYes

Number of characters per info text70

Message system

Number of alarm classes32

Bit messagesYes

— Number of bit messages4 000

Analog messagesYes

— Number of analog messages200

S7 alarm number procedureYes

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Number of characters per message80

Number of process values per message8

Acknowledgment groupsYes

Message indicatorYes

— Number of entries1 024

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Recipe management

Number of recipes300

Data records per recipe500

Entries per data record1 000

Size of internal recipe memory2 Mbyte

Recipe memory expandableYes

Variables

Number of variables per device2 048

Number of variables per screen400

Limit valuesYes

MultiplexingYes

StructuresYes

ArraysYes

Images

Number of configurable images500

Permanent window/defaultYes

Global imageYes

Pop-up imagesYes

Slide-in imagesYes

Image selection by PLCYes

Image number in the PLCYes

Image objects

Number of objects per image400

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Date/time fieldsYes

SwitchesYes

ButtonsYes

Graphic displayYes

IconsYes

Geometric objectsYes

Complex image objects

Number of complex objects per screen20

Alarm viewYes

Trend viewYes

User viewYes

Status/controlYes

Sm@rtClient viewYes

Recipe viewYes

f(x) trend viewYes

System diagnostics viewYes

Media PlayerYes

HTML browserYes

PDF displayYes

IP camera displayYes

Bar graphsYes

SlidersYes

Pointer instrumentsYes

Analog/digital clockYes

Lists

Number of text lists per project500

Number of entries per text list500

Number of graphics lists per project500

Number of entries per graphics list500

Archiving

Number of archives per device50

Number of entries per archive20 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

— Memory cardYes

— USB memoryYes

— EthernetYes

— CSVYes

— TXTYes

— RDBYes

Security

Number of user groups50

Number of user rights32

Number of users50

Password export/importYes

SIMATIC LogonYes

Logging through printer

AlarmsYes

Report (shift log)Yes

HardcopyYes

Electronic print to fileYes; PDF, HTML

Character sets

— US EnglishYes

Transfer (upload/download)

MPI/PROFIBUS DPYes

USBYes

EthernetYes

using external storage mediumYes

Process coupling

S7-1200Yes

S7-1500Yes

S7-200Yes

S7-300/400Yes

LOGO!Yes

WinACYes

SINUMERIKYes; with SINUMERIK option package

SIMOTIONYes

Allen Bradley (EtherNet/IP)Yes

Allen Bradley (DF1)Yes

Mitsubishi (MC TCP/IP)Yes

Mitsubishi (FX)Yes

OMRON (FINS TCP)No

OMRON (Host Link)Yes

Modicon (Modbus TCP/IP)Yes

Modicon (Modbus RTU)Yes

OPC UA ClientYes

OPC UA ServerYes

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyYes

SimulationYes

Device switchoverYes

Peripherals/Options

PrinterYes

SIMATIC HMI MM memory card: Multi Media CardYes; Up to 128 MB

SIMATIC HMI SD memory card: Secure Digital memory cardYes; Up to 2 GB

SIMATIC HMI CF memory card Compact Flash CardNo

USB memoryYes

SIMATIC IPC USB Flashdrive (USB stick)Yes; Up to 16 GB

SIMATIC HMI USB stickYes; Up to 8 GB

Network cameraYes

Mechanics/material

PlasticNo

AluminumYes

Stainless steelNo

Dimensions

Width of the housing front274 mm

Height of housing front190 mm

Mounting cutout, width251 mm

Mounting cutout, height166 mm

mounting depth62.7 mm

Weights

Weight (without packaging)1.9 kg

Weight (with packaging)2.6 kg

Accessories 33

Genuine accessories that can be used with the Siemens 6AV2124-0JC01-0AX0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV6671-8XA00-0AX0	Aksesuar · Connection plug · HMI connecting components
6AV7674-1LX00-0AA0	Aksesuar · Accessories
6AV7674-1LB50-0AA0	Aksesuar · Adapter
6AV7674-1LB10-0AA0	Aksesuar · Accessories
6AV7674-0KE00-0AA0	Aksesuar · Adapter
6AV7674-0KD00-0AA0	Aksesuar · Adapter
6AV2181-8AT00-0AX1	Aksesuar · Accessories · input devices, cables
6AV7674-1KA00-0AA0	Aksesuar · spare part
6AV6881-0MJ22-1AA0	Aksesuar · protective film · protective films
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0MJ22-0AA0	Aksesuar · protective film · protective films
6AV7860-0CH50-0AA0	Aksesuar · line · input devices, cables
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AQ10-0AA0	Aksesuar · Memory card · Storage media
6AV6881-0AU14-1DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AF22-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF22-0DC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6ES7648-1AA50-0XG0	Aksesuar · Accessories · service sets
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV2181-8XP00-0AX0	Aksesuar · Memory card · Storage media
6AV6881-0AS42-0AA1	Aksesuar · Storage · Storage media
6AV6671-8XJ00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6671-8XE00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6671-8XD00-0AX0	Aksesuar · Adapter · HMI connecting components
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
