How can I get a price quote for Siemens 6AV2123-3KB32-0AW0?

You can request a fast quote for Siemens 6AV2123-3KB32-0AW0 from Yılsa Engineering. Reference part number YLSUUZ5BXPIRPRK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV2123-3KB32-0AW0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV2123-3KB32-0AW0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV2123-3KB32-0AW0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

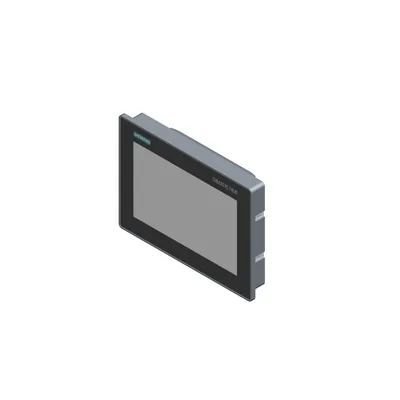

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6AV2123-3KB32-0AW0

SIMATIC HMI MTP1000, Unified Basic Panel, touch operation, 10" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Basic V18 Update 3, contains open-source software, which is provided free of charge see enclosed Blu-ray

SiemensMFR # 6AV2123-3KB32-0AW0SKU # YLSUUZ5BXPIRPRK

Product type designationMTP1000 Unified Basic

Design of displayTFT

Screen diagonal10.1 in

Display width217 mm

Display height135.6 mm

Number of colors16 777 216

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV2123-3KB32-0AW0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationMTP1000 Unified Basic

Display

Design of displayTFT

Screen diagonal10.1 in

Display width217 mm

Display height135.6 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution1 280 pixel

Vertical image resolution800 pixel

Backlighting

MTBF backlighting (at 25 °C)20 000 h; At 25°C

Backlight dimmableYes; 10 ... 100%

Keyboard

Numeric keyboardYes; Onscreen keyboard

alphanumeric keyboardYes; Onscreen keyboard

Touch operation

Design as touch screenYes

Design as multi-touch screenYes

Monitor keyboardYes

Installation type/mounting

Mounting positionvertical

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.28 A

current consumption (for rated value of supply voltage), min.0.2 A

current consumption (for rated value of supply voltage), max.0.6 A

Current consumption, max.0.8 A; at 19.2 V

Starting current inrush I²t0.36 A²·s

Power

Active power input, typ.9.3 W

Processor

Processor typeARM

Storage

FlashYes

RAMYes

Type of output

BuzzerNo

SpeakerNo

Clock

Hardware clock (real-time)Yes

Software clockYes

retentiveYes; Back-up duration typically 6 weeks

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1; Gigabit Ethernet (IE/PN), RJ45

Number of RS 485 interfaces0

Number of RS 422 interfaces0

Number of USB interfaces2; USB 2.0

Number of SD card slots0

Industrial Ethernet

Industrial Ethernet status LED2

Number of ports of the integrated switch1

Protocols

PROFINETYes

Supports protocol for PROFINET IONo

MPINo

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

Media redundancy

— MRPNo

Further protocols

CANNo

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

NEMA (front)NEMA 4, NEMA 4x (when installed)

Enclosure Type 4 at the frontYes

Enclosure Type 4x at the frontYes

Enclosure Type 12 at the frontNo

Standards, approvals, certificates

CE markYes

UKCA markYes

cULusYes

FM approvalNo

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)No

CCCNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]202 kg

— global warming potential, (during production) [CO2 eq]41.2 kg

— global warming potential, (during operation) [CO2 eq]164 kg

— global warming potential, (after end of life cycle) [CO2 eq]-3.93 kg

Use in hazardous areas

ATEX Zone 2No

ATEX Zone 22No

IECEx Zone 2No

IECEx Zone 22No

cULus Class I Zone 2, Division 2No

cULus Class II Division 2No

FM Class I Division 2No

FM Class II Division 2No

Marine approval

Germanischer Lloyd (GL)No; included in DNV

American Bureau of Shipping (ABS)Yes; in preparation

Bureau Veritas (BV)Yes; in preparation

Det Norske Veritas (DNV)Yes

Korean Register of Shipping (KRS)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Chinese Classification Society (CCS)Yes

Ambient conditions

Suited for indoor useYes

Suited for outdoor useNo

Operation (vertical installation)

— For vertical installation, min.0 °C

— For vertical installation, max.50 °C

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.40 °C

Operation (vertical installation, portrait format)

— For vertical installation, min.0 °C

— For vertical installation, max.40 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.35 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Operating systems

proprietaryYes

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Recipe managementYes

Configuration software

WinCC Advanced (TIA Portal)Yes

WinCC Professional (TIA Portal)Yes

WinCC Unified Basic Engineering (TIA Portal)Yes

WinCC Unified Comfort Engineering (TIA Portal)Yes

WinCC Unified PC Engineering (TIA Portal)Yes

Online languages

Number of online/runtime languages32

Project languages

Languages per project32

Functionality under WinCC Unified

LibrariesYes

Applications/optionsNo

Number of Visual Basic ScriptsNo

JavaScriptYes

time-controlledYes

task-controlledYes

Number of characters per info text70

Number of message texts per message10

Message system

Number of alarm classes32

— Number of bit messages2 000

— Number of analog messages100

S7 alarm number procedureYes

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Number of characters per message512

Number of process values per message10

Acknowledgment groupsYes

Message indicatorNo

Message bufferYes; Configured as alarm archive

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Parameter set management (recipes)

Number of parameter set types250

Parameter sets per parameter set type250

Entries per parameter set250

Size of internal parameter set memory5 Mbyte

Parameter set memory expandableYes

Variables

Number of variables per device1 000

Number of variables per screen300

Limit valuesYes

StructuresYes

ArraysYes

Images

Number of configurable images300

FaceplateYes

Image objects

Number of objects per image600

Picture windowYes

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Scalable Vector Graphics (SVG)Yes

Date/time fieldsYes

CheckboxYes

Option buttonYes

SwitchesYes

ButtonsYes

Graphic displayYes

IconsYes

Custom web displayNo

Geometric objectsYes

Complex image objects

Number of complex objects per screen5

Alarm viewYes

Trend viewYes

User viewYes

Status/controlYes

Parameter set displayYes

HTML browserYes

Bar graphsYes

SlidersYes

Pointer instrumentsYes

Analog/digital clockYes

Lists

Number of text lists per project300

Number of entries per text list250

Number of graphics lists per project100

Number of entries per graphics list250

Archiving

Number of archives per device10

Number of entries per archive50 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

— Memory cardNo

— USB memoryYes

— EthernetNo

Security

Number of roles50

Number of function rights20; V18

Number of users200

Password export/importYes

Central user administrationYes

Transfer (upload/download)

USBYes

EthernetYes

using external storage mediumYes

Process coupling

S7-1200Yes

S7-1500Yes

S7-200No

S7-300/400Yes

Number of S7 connections8

LOGO!Yes; as of WinCC Unified V20

SIMOTIONNo

OPC UA ClientYes

OPC UA ServerNo

Software Controller/Open ControllerNo

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyNo

SimulationYes

Device switchoverYes

Peripherals/Options

PeripheralsBarcode reader

PrinterNo

SIMATIC HMI MM memory card: Multi Media CardNo

SIMATIC HMI SD memory card: Secure Digital memory cardNo

SIMATIC HMI CF memory card Compact Flash CardNo

USB memoryYes

SIMATIC IPC USB Flashdrive (USB stick)Yes

SIMATIC HMI USB stickYes

Network cameraNo

Mechanics/material

PlasticYes

Dimensions

Width of the housing front280 mm

Height of housing front205 mm

Mounting cutout, width264 mm

Mounting cutout, height189 mm

mounting depth55 mm

Weights

Weight (without packaging)1.55 kg

Weight (with packaging)2.22 kg

Accessories 28

Genuine accessories that can be used with the Siemens 6AV2123-3KB32-0AW0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV6671-8XA00-0AX0	Aksesuar · Connection plug · HMI connecting components
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV6645-7AB14-0AS1	Aksesuar · Accessories
6AV6881-0AV63-0BA0	Aksesuar · spare part
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AQ10-0AA0	Aksesuar · Memory card · Storage media
6AV6881-0AU14-1DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0DB0	Aksesuar · Accessories · input devices, cables
6AV6881-0AF22-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF22-0DC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LC0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV2124-6JJ00-0AX0	Aksesuar · protective film · protective films
6AV6671-8XK00-0AX1	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV6671-8XK00-0AX0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV2181-8XP00-0AX0	Aksesuar · Memory card · Storage media
6AV2181-4XM00-0AX0	Aksesuar · Accessories · fixing elements, mounting
6AV6881-0AS42-0AA1	Aksesuar · Storage · Storage media
6AV6671-8XJ00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6671-8XE00-0AX0	Aksesuar · Accessories · HMI connecting components
6AV6671-8XD00-0AX0	Aksesuar · Adapter · HMI connecting components
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
