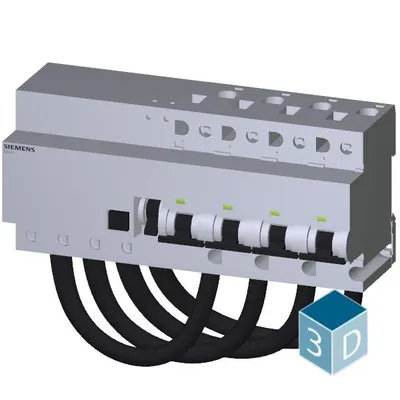

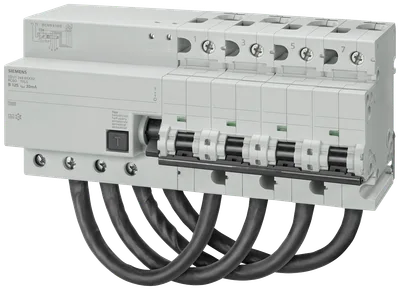

Siemens 5SU1674-7BK82

RCBO, 10 kA, 4P, type B, selective, 300 mA, C-Char, In: 125 A, Un AC: 400 V

SiemensMFR # 5SU1674-7BK82SKU # CEY-8EF3B0389AB9

product brand nameSENTRON

product designationRCBO

design of the productselective

number of poles4

number of poles with protection4

design of pole4P

Have questions?Chat on WhatsApp

About This Product

RCBO, 10 kA, 4P, type B, selective, 300 mA, C-Char, In: 125 A, Un AC: 400 V

Siemens 5SU1674-7BK82

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCBO

design of the productselective

General technical data

number of poles4

number of poles with protection4

design of pole4P

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value440 V

surge voltage resistance rated value4 000 V

surge current resistance at (8/20) µs5 kA

tripping fault current rated value300 mA

— at 30 °C rated value125 A

— at 40 °C rated value115.62 A

— at 45 °C rated value111.25 A

— at 50 °C rated value106.25 A

— at 55 °C rated value101.25 A

— at 60 °C rated value96.25 A

operational current at AC rated value125 A

residual current typeB

Supply voltage

at AC rated value230/400 V

for testing equipment minimum100 V

operating frequency50/60 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value10 kA

according to IEC 60947-2 rated value10 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA

rated residual switching capacity (IΔm) according to IEC 61009-110 kA

energy limitation class3

Dissipation

for rated value of the current at AC in hot operating state per pole22 W

maximum66 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeYes

product feature silicon-freeYes

Connections

minimum6 mm²

maximum50 mm²

minimum6 mm²

maximum50 mm²

minimum6 mm²

maximum35 mm²

minimum3 N·m

maximum3.5 N·m

position of power supply cordEither top or bottom

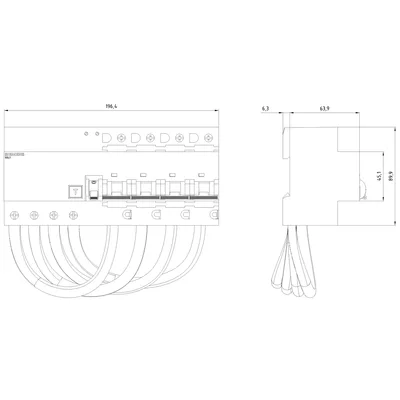

Mechanical Design

height90 mm

width198 mm

depth77 mm

installation depth70 mm

number of modular width units11

mounting positionany

Net Weight2.085 kg

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum55 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
