How can I get a price quote for Siemens 5SU1324-6FA13?

You can request a fast quote for Siemens 5SU1324-6FA13 from Yılsa Engineering. Reference part number CEY-8EF3B0388F94. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SU1324-6FA13 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SU1324-6FA13 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SU1324-6FA13?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

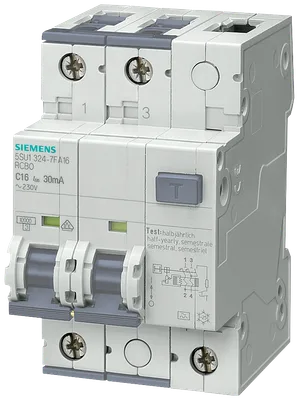

Photo may not represent actual item. Refer to name and product specs for all details.

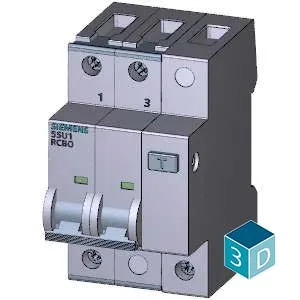

Siemens 5SU1324-6FA13

RCBO, 10 kA, 2P, type A, 30 mA, B char., In: 13 A, Un AC: 230 V

SiemensMFR # 5SU1324-6FA13SKU # CEY-8EF3B0388F94

product brand nameSENTRON

product designationRCBO

design of the productInstantaneous

number of poles2

number of poles with protection2

design of pole2P

Have questions?Chat on WhatsApp

About This Product

RCBO, 10 kA, 2P, type A, 30 mA, B char., In: 13 A, Un AC: 230 V

Siemens 5SU1324-6FA13

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCBO

design of the productInstantaneous

General technical data

number of poles2

number of poles with protection2

design of pole2P

tripping characteristic classB

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value264 V

surge voltage resistance rated value4 000 V

surge current resistance at (8/20) µs1 kA

tripping fault current rated value30 mA

— at 30 °C rated value13 A

— at 40 °C rated value12.48 A

— at 45 °C rated value12.22 A

— at 50 °C rated value11.96 A

— at 55 °C rated value11.57 A

— at 60 °C rated value11.31 A

— at 65 °C rated value10.53 A

— at 70 °C rated value10.01 A

operational current at AC rated value13 A

residual current typeA

Supply voltage

at AC rated value230/240 V

for testing equipment minimum195 V

operating frequency50 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value10 kA

according to IEC 60947-2 rated value20 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value10 kA

rated residual switching capacity (IΔm) according to IEC 61009-110 kA

energy limitation class3

Dissipation

maximum4.1 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeYes

product feature silicon-freeYes

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum25 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordEither top or bottom

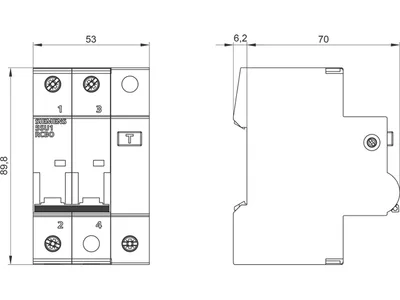

Mechanical Design

height90 mm

width54 mm

depth77 mm

installation depth70 mm

number of modular width units3

mounting positionany

Net Weight414 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum55 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
