How can I get a price quote for Siemens 3VA1110-4FF46-0AA0?

You can request a fast quote for Siemens 3VA1110-4FF46-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B038CC49. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA1110-4FF46-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA1110-4FF46-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA1110-4FF46-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

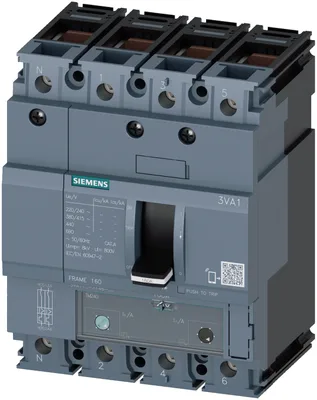

Siemens 3VA1110-4FF46-0AA0

circuit breaker 3VA1 IEC Frame 160 breaking capacity class S Icu=36 kA @ 415 V 4-pole, line protection TM240, ATAM, In=100 A overload protection Ir=70 A...100 A short-circuit protection Ii=5...10 x In neutral conductor protection 50% terminal connection

SiemensMFR # 3VA1110-4FF46-0AA0SKU # CEY-8EF3B038CC49

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM240

number of poles4

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA1110-4FF46-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM240

protection function of the overcurrent releaseLI

number of poles4

General technical data

insulation voltage / rated value800 V

operating voltage / at DC / rated value600 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum25 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V9 000

electrical endurance (operating cycles) / at AC-1 / at 690 V6 300

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionWithout

communication functionNo

other measurement functionNo

Net Weight1.17 kg

Current

at 40 °C100 A

at 45 °C100 A

at 50 °C100 A

at 55 °C98 A

at 60 °C96 A

at 65 °C94 A

at 70 °C91 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerS

at 240 V55 kA

at 415 V36 kA

at 440 V25 kA

at 500 V7 kA

at 690 V7 kA

at 240 V55 kA

at 415 V36 kA

at 440 V25 kA

at 500 V5 kA

at 690 V5 kA

at 240 V121 kA

at 415 V75.6 kA

at 440 V52.5 kA

at 500 V11.9 kA

at 690 V11.9 kA

design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum70 A

maximum100 A

minimum1 s

maximum1 s

minimum500 A

maximum1 000 A

minimum50 A

maximum50 A

design of the N-conductor protection50%

product function / grounding protectionNo

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]5.12 in

height130 mm

width [in]4 in

type of connectable conductor cross-sections / of the round conductor terminal / stranded1 x (1,5 - 70 mm²)

width101.6 mm

depth [in]2.76 in

depth70 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuitbox terminal on both sides

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Tin

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] / total190 kg

global warming potential [CO2 eq] / during manufacturing4.67 kg

global warming potential [CO2 eq] / during operation186 kg

global warming potential [CO2 eq] / after end of life-0.826 kg

reference code / according to IEC 81346-2Q
