How can I get a price quote for Siemens 3VA9114-0RL21?

You can request a fast quote for Siemens 3VA9114-0RL21 from Yılsa Engineering. Reference part number YLSH8MLYUEWJT0T. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9114-0RL21 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9114-0RL21 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9114-0RL21?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

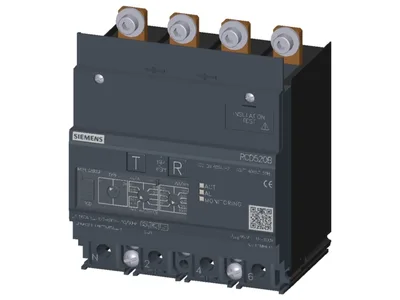

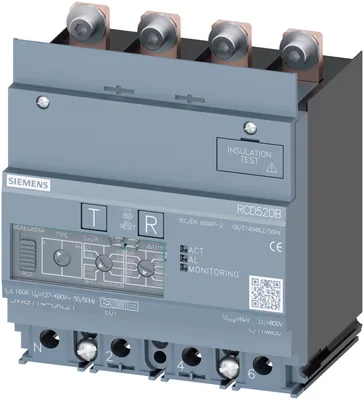

Siemens 3VA9114-0RL21

residual current device RCD520B basic RCD type B or B+ loadside mounted rated resid. current 0.03...5 A adjustable tv 0...10,000 ms 4-pole In=160 A Ue=127-690 V accessory for: 3VA11

SiemensMFR # 3VA9114-0RL21SKU # YLSH8MLYUEWJT0T

product brand nameSENTRON

fastening methodscrew fixing

number of poles4

protection class IP / on the frontIP40

minimum127 V

maximum690 V

Have questions?Chat on WhatsApp

About This Product

residual current device RCD520B basic RCD type B or B+ loadside mounted rated resid. current 0.03...5 A adjustable tv 0...10,000 ms 4-pole In=160 A Ue=127-690 V accessory for: 3VA11

Siemens 3VA9114-0RL21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationResidual current protection device types B and B+

accessoriesResidual current protection module type B and B+

General technical data

fastening methodscrew fixing

number of poles4

protection class IP / on the frontIP40

Voltage

minimum127 V

maximum690 V

Current

operational current / at AC / rated value160 A

response value / of the residual current0.03;0.05;0.1;0.3;0.5;1;3;5

product function / communication with residual current equipmentNo

product function / integrated / alarm managementYes

product function / integrated / alarm managementPre-alarm indication 30%

product function / remote-controlled trippingNo

product feature / sealableYes

product function / selectable tripping characteristicYes

product function / selectable RCD or monitoring modeYes

position / of the infeed / on the RCD componentTop or bottom

type of electrical connection / for main current circuitbusbar connection

set values / of the limit value of not tripping time0;0.06;0.15;0.3;0.5;1.0;2.0;3.0;5.0;10.0

type of trip indicator / electricalYes

type of trip indicator / communicationNo

power loss [W] / maximum7.6 W

operating frequency / rated value / maximum60 Hz

minimum0 Hz

maximum100 000 Hz

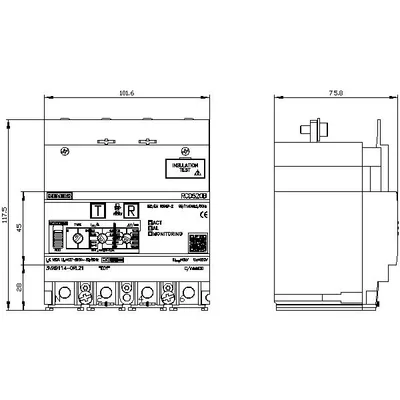

Mechanical Design

height100 mm

width101.5 mm

depth70 mm

net weight710 g

Net Weight933 g

Connetctions according UL

minimum-25 °C

maximum70 °C

minimum-40 °C

maximum80 °C
