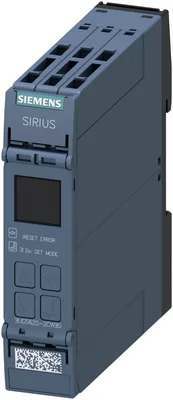

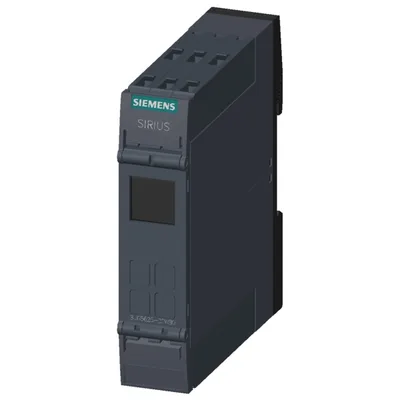

Siemens 3UG5625-2CW30

digital monitoring relay residual current monitoring (with current transformer 3UL23) adjustment range 0.03...40 A supply voltage 24 ... 240 V AC/DC, 50 .. 60 Hz ON delay and tripping delay 0.1..999.9 s 2 changeover contacts spring-loaded terminal

SiemensMFR # 3UG5625-2CW30SKU # YLSVWIPCMDROKG

product brand nameSIRIUS

product type designation3UG5

product functionresidual current monitoring relay

design of the displayLCD

power loss [W] maximum1.8 W

power loss [V∙A] maximum4.5 V·A

Have questions?Chat on WhatsApp

About This Product

Siemens 3UG5625-2CW30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationResidual current monitoring relay with digital setting

design of the productmonitoring of residual current, external power supply with auxiliary voltage

product type designation3UG5

General technical data

product functionresidual current monitoring relay

design of the displayLCD

power loss [W] maximum1.8 W

power loss [V∙A] maximum4.5 V·A

rated value690 V

— with degree of pollution 2 rated value690 V

— with degree of pollution 3 rated value690 V

degree of pollution3

for monitoringAC/DC

of the control supply voltageAC/DC

surge voltage resistance rated value4 kV

of the enclosureIP20

of the terminalIP20

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)06/01/2023

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.152 kg

Product Function

phase sequence recognitionNo

phase failure detectionNo

asymmetry detectionNo

residual current displayYes

error memoryYes

overcurrent detection 1 phaseYes

undercurrent detection 1 phaseNo

adjustable open/closed-circuit current principleYes

external resetNo

auto-RESETYes

manual RESETYes

Control circuit/ Control

at 50 Hz rated value24 ... 240 V

at 60 Hz rated value24 ... 240 V

control supply voltage at DC rated value24 ... 240 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

Measuring circuit

type of current for monitoringAC

measurable current30 ... 40 000 mA

measurable line frequency16 ... 400 Hz

adjustable operating delay time0 ... 999.9 s

130 mA ... 40 A

230 mA ... 40 A

adjustable response delay time0 ... 999.9 s

adjustable response delay time when starting0 ... 999.9 s

adjustable switching hysteresis for measured current value0 mA

buffering time in the event of power failure minimum10 ms

accuracy of digital display+/-1 digit

Precision

relative metering precision5 %

temperature drift per °C0 %/°C

Communication/ Protocol

protocol is supported IO-Link protocolNo

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

for auxiliary contacts2

delayed switching2

operating frequency with 3RT2 contactor maximum5 000 1/h

Main circuit

type of voltageAC/DC

operating voltage rated value24 ... 240 V

operating frequency rated value16 ... 400 Hz

at 230 V at 50/60 Hz3 A

at 250 V at 50/60 Hz3 A

at 400 V at 50/60 Hz3 A

at 24 V1 A

at 110 V0.2 A

at 125 V0.2 A

at 230 V0.1 A

at 250 V0.1 A

operational current at 17 V minimum5 mA

continuous current of the DIAZED fuse link of the output relay6 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationgalvanic isolation

between input and outputYes

between the outputsYes

between the voltage supply and other circuitsYes

Safety related data

product function suitable for safety functionNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing0.5 ... 4 mm²

for AWG cables solid1x (20 ... 12)

for AWG cables stranded20 ... 12

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid20 ... 12

stranded20 ... 12

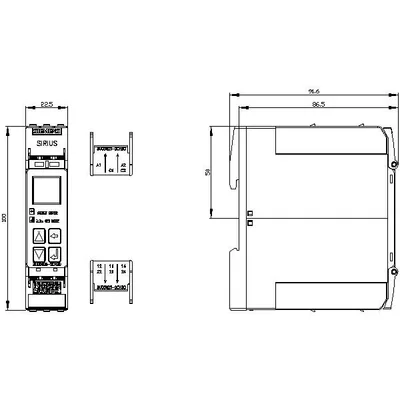

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

Accessories 13

Genuine accessories that can be used with the Siemens 3UG5625-2CW30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3UL2302-1A	Aksesuar
3UL2303-1A	Aksesuar
3UL2304-1A	Aksesuar
3UL2305-1A	Aksesuar
3UL2306-1A	Aksesuar
3UL2307-1A	Aksesuar
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1122-2BA00	Aksesuar · Removable terminals
3ZY1450-1AB00	Aksesuar · Further accessories
