How can I get a price quote for Siemens 3UL2306-1A?

You can request a fast quote for Siemens 3UL2306-1A from Yılsa Engineering. Reference part number CEY-8EF3B02D03D3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3UL2306-1A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3UL2306-1A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3UL2306-1A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

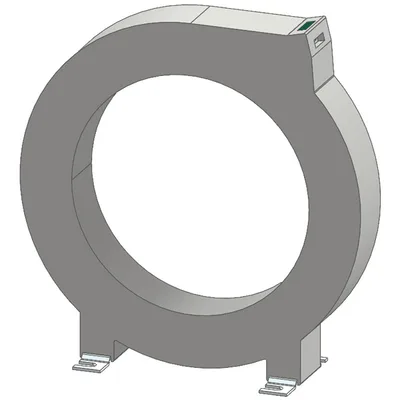

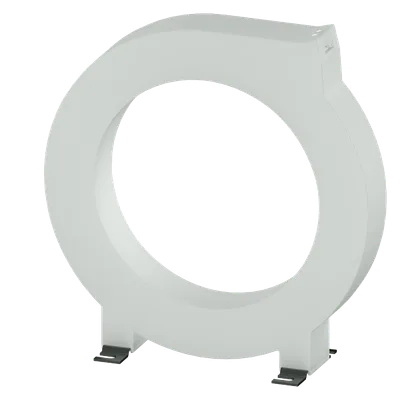

Siemens 3UL2306-1A

Residual-current transformer for residual current monitoring Bushing opening 140 mm Residual current 30 mA...40 A

SiemensMFR # 3UL2306-1ASKU # CEY-8EF3B02D03D3

product brand nameSIRIUS

product designationResidual-current transformers

product feature touch protectionYes

type of electrical connection at outputscrew-type terminals

operating voltage rated value maximum690 V

continuous current per phase maximum500 A

Have questions?Chat on WhatsApp

About This Product

Residual-current transformer for residual current monitoring Bushing opening 140 mm Residual current 30 mA...40 A

Siemens 3UL2306-1A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

product brand nameSIRIUS

product designationResidual-current transformers

product feature touch protectionYes

type of electrical connection at outputscrew-type terminals

operating voltage rated value maximum690 V

continuous current per phase maximum500 A

fault current at input rated value40 A

surge voltage resistance rated value6 kV

reference code according to IEC 81346-2B

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750T

reference code according to EN 61346-2B

Connections/ Terminals

solid1x (0.5 ... 2.5 mm²)

— with core end processing1x (0.5 ... 1.5 mm²)

— solid1x (20 ... 13)

Ambient conditions

during transport-25 ... +60 °C

during operation-25 ... +60 °C

during storage-40 ... +85 °C

relative humidity during operation95 %

installation altitude at height above sea level2 000 m

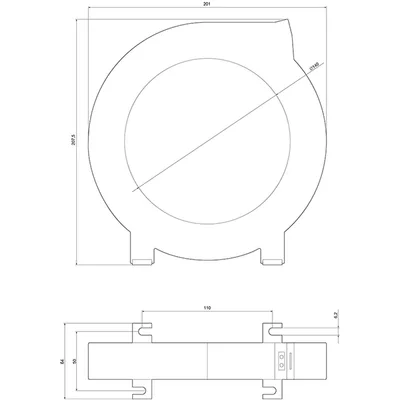

Installation/ mounting/ dimensions

diameter of inlet opening140 mm

width201 mm

height64 mm

depth207.5 mm

mounting positionstanding, on horizontal mounting surface

fastening methodscrew fixing

tightening torque with screw-type terminals0.5 ... 0.6 N·m

tightening torque [lbf·in] with screw-type terminals4.4 ... 5.3 lbf·in

Accessories 5

Genuine accessories that can be used with the Siemens 3UL2306-1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
