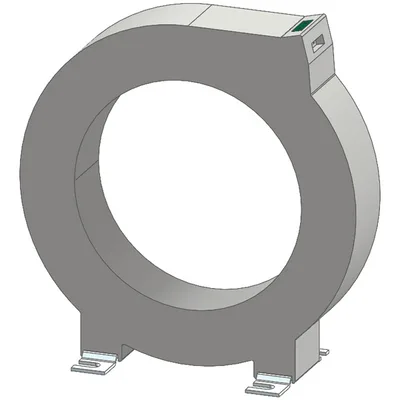

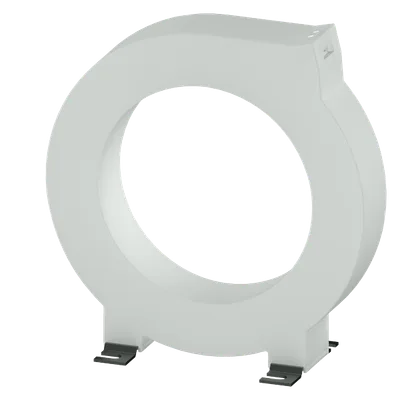

Siemens 3UL2305-1A

Residual-current transformer for residual current monitoring Bushing opening 105 mm Residual current 30 mA...40 A

SiemensMFR # 3UL2305-1ASKU # CEY-8EF3B038D9DA

product brand nameSIRIUS

product designationResidual-current transformers

product feature touch protectionYes

type of electrical connection at outputscrew-type terminals

operating voltage rated value maximum690 V

continuous current per phase maximum400 A

Have questions?Chat on WhatsApp

About This Product

Residual-current transformer for residual current monitoring Bushing opening 105 mm Residual current 30 mA...40 A

Siemens 3UL2305-1A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

product brand nameSIRIUS

product designationResidual-current transformers

product feature touch protectionYes

type of electrical connection at outputscrew-type terminals

operating voltage rated value maximum690 V

continuous current per phase maximum400 A

fault current at input rated value40 A

surge voltage resistance rated value6 kV

reference code according to IEC 81346-2B

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750T

reference code according to EN 61346-2B

Connections/ Terminals

solid1x (0.5 ... 2.5 mm²)

— with core end processing1x (0.5 ... 1.5 mm²)

— solid1x (20 ... 13)

Ambient conditions

during transport-25 ... +60 °C

during operation-25 ... +60 °C

during storage-40 ... +85 °C

relative humidity during operation95 %

installation altitude at height above sea level2 000 m

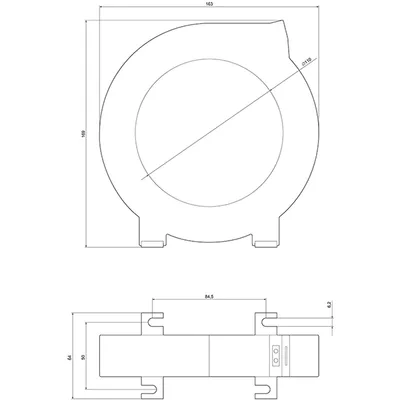

Installation/ mounting/ dimensions

diameter of inlet opening105 mm

width163 mm

height64 mm

depth169 mm

mounting positionstanding, on horizontal mounting surface

fastening methodscrew fixing

tightening torque with screw-type terminals0.5 ... 0.6 N·m

tightening torque [lbf·in] with screw-type terminals4.4 ... 5.3 lbf·in
