Siemens 3SX5601-3SB55

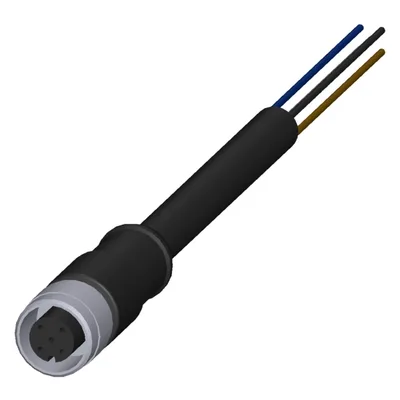

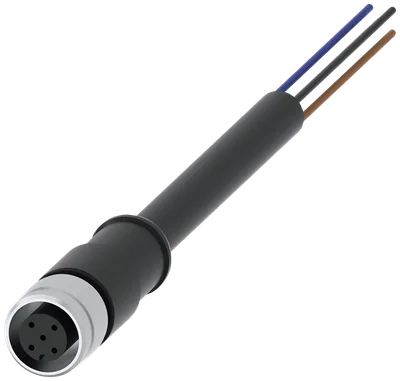

connecting cable with M12 socket 5-pole and bare cable end, 5 m long, for connecting position switch 3SE51/52, wired with M12 plug, 5-pole
product brand nameSIRIUS
operational current at 40 °C rated value4 A
operating voltage rated value60 V
number of poles5
insulation resistance100 MΩ

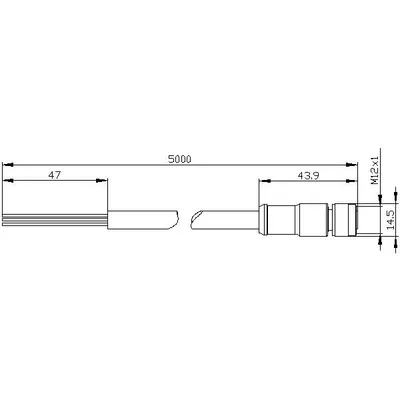

wire length of connection cable5 m
About This Product
connecting cable with M12 socket 5-pole and bare cable end, 5 m long, for connecting position switch 3SE51/52, wired with M12 plug, 5-pole
Siemens 3SX5601-3SB55
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General technical data
product brand nameSIRIUS
operational current at 40 °C rated value4 A
operating voltage rated value60 V
number of poles5
insulation resistance100 MΩ
wire length of connection cable5 m
ambient temperature during operation-25 ... +85 °C
connector coding of the M12 circular connectorA - Standard
type of electrical connectionconnector M12

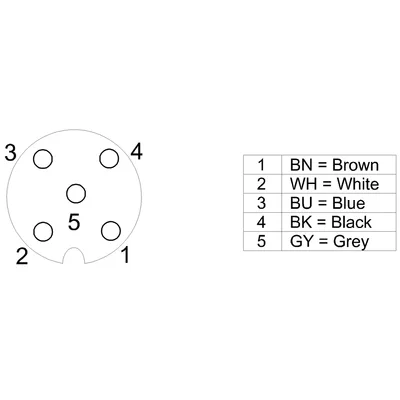

color coding of the corePin 1 = BN, pin 2 = WH, pin 3 = BU, pin 4 = BK, pin 5 = GY
overvoltage category2
degree of pollution3
protection class IPIP67
of the contactCuSn
of contact coatingAu
of contact main bodyPUR
Accessories 19
Genuine accessories that can be used with the Siemens 3SX5601-3SB55 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3SY3128 | Aksesuar · Miscellaneous accessories · plugs | |
| 3RK1902-4DA00-5AA0 | Aksesuar | |
| 3SE5423-0CN20-1EB1 | Uyumlu ürün | |
| 3SE5423-0CD20-1EB1 | Uyumlu ürün | |
| 3SE5423-0CC20-1EB1 | Uyumlu ürün | |
| 3SE5413-0CN20-1EB1 | Uyumlu ürün | |
| 3SE5413-0CD23-1EB1 | Uyumlu ürün | |
| 3SE5413-0CD20-1EB1 | Uyumlu ürün | |
| 3SE5413-0CC20-1EB1 | Uyumlu ürün | |
| 3SE5234-0QV40-1AE2 | Uyumlu ürün | |
| 3SE5234-0LE11-1AE2 | Uyumlu ürün | |
| 3SE5234-0LD03-1AE2 | Uyumlu ürün | |
| 3SE5234-0LC05-1AE2 | Uyumlu ürün | |
| 3SE5234-1CC05-1AF3 | Uyumlu ürün | |
| 3SE5234-1BC05-1AF3 | Uyumlu ürün | |
| 8WD5620-5HH46 | Uyumlu ürün | |
| 8WD5620-5JH46 | Uyumlu ürün | |
| 3SE5234-1RV40-1AF3 | Uyumlu ürün |
