How can I get a price quote for Siemens 3SE5234-0LD03-1AE2?

You can request a fast quote for Siemens 3SE5234-0LD03-1AE2 from Yılsa Engineering. Reference part number YLSM4TTOOTV3UIA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5234-0LD03-1AE2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5234-0LD03-1AE2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5234-0LD03-1AE2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

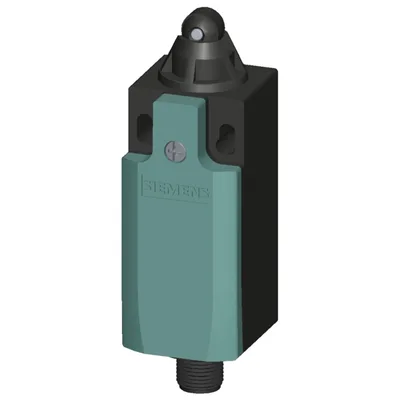

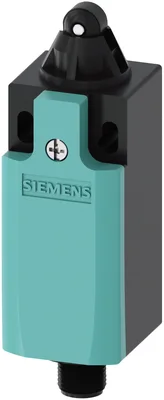

Siemens 3SE5234-0LD03-1AE2

position switch, plastic enclosure according to DIN EN 50047, 31 mm, 1 NO/2 NC quick action contacts, with M12 plug, 5-pole, pin assignment: Pin1=21, Pin4=22 Pin2=31, Pin5=32, for maximum 125 V and 4 A, roller plunger with plastic roller 10 mm, suitable for connection to all SIMATIC ET 200 compact block I/O modules

SiemensMFR # 3SE5234-0LD03-1AE2SKU # YLSM4TTOOTV3UIA

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

product function positive openingYes

insulation voltage rated value125 V

degree of pollutionclass 3

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5234-0LD03-1AE2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied actuator head for position switches3SE5000-0AD03

General technical data

product function positive openingYes

insulation voltage rated value125 V

degree of pollutionclass 3

surge voltage resistance rated value2 kV

protection class IPIP65

according to IEC 60068-2-2730 g / 11 ms

according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current4 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG4 A

active principlemechanical

repeat accuracy0.05 mm

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1 Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7

Net Weight0.078 kg

minimum actuating force in directions of actuation20 N

length of the sensor89.7 mm

width of the sensor31 mm

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

operating frequency rated value50 ... 60 Hz

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

at 24 V rated value4 A

at 125 V rated value4 A

at 24 V rated value3 A

at 125 V rated value0.55 A

Enclosure

design of the housingblock, narrow

material of the enclosureplastic

coating of the enclosureOther types

design of the housing according to standardYes

Drive Head

design of the actuating elementRoller plunger, plastic roller

standard-compliant actuator headEN 50047, design B

shape of the switch headroller

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related2

cable entry typeM12 plug

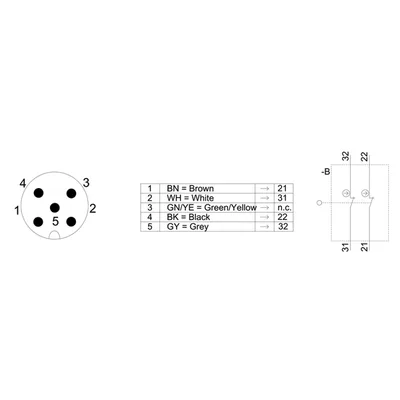

design of plug-in connectionM12 connector, 5-pin: Pin 1= terminal 21, pin 2= 31, pin 4= 22, pin 5= 32

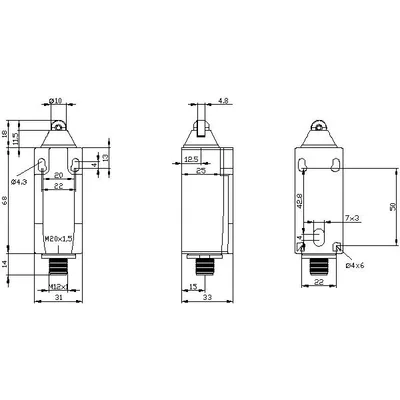

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Accessories 5

Genuine accessories that can be used with the Siemens 3SE5234-0LD03-1AE2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
