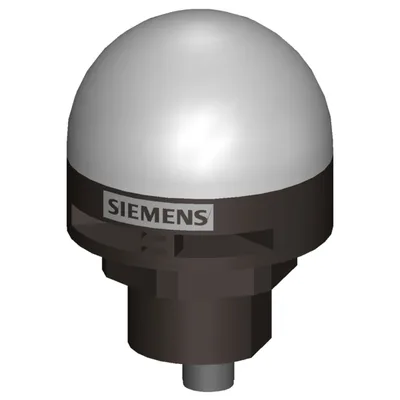

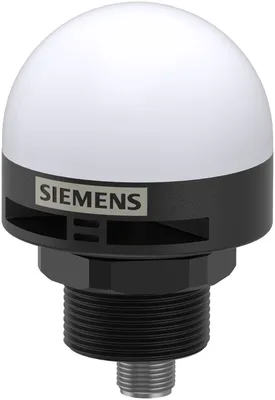

Siemens 8WD5620-5JH46

electronically configurable integrated signal lamp, IO-Link, with acoustics, M12 plug, 4-pole

SiemensMFR # 8WD5620-5JH46SKU # YLSNMTKDK9Z30

product brand nameSIRIUS

design of the productintegrated signal lamp for IO-Link

number of light segments1

type of parameterizationIODD

type of voltage of the operating voltageDC

operating voltage at DC rated value24 V

Have questions?Chat on WhatsApp

About This Product

electronically configurable integrated signal lamp, IO-Link, with acoustics, M12 plug, 4-pole

Siemens 8WD5620-5JH46

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationElectronically configurable integrated signal lamp

design of the productintegrated signal lamp for IO-Link

General technical data

number of light segments1

product function adjustable optical signalYes

product function adjustable acoustic signalYes

type of interface for parameter assignmentIO-Link

type of parameterizationIODD

type of voltage of the operating voltageDC

operating voltage at DC rated value24 V

operating voltage at DC rated value18 ... 30 V

relative positive tolerance of the operating voltage0 %

relative negative tolerance of the operating voltage0 %

insulation voltage (Ui) rated value50 V

impulse withstand voltage (Uimp) rated value330 V

operational current rated value55 mA

consumed current minimum10 mA

inrush current rated value350 mA

design of external power supply requiredSELV/PELV functional extra low voltage

overvoltage categoryI

degree of pollution3

operating resource protection class according to IEC 61140III

Safety related data

MTTFd514 a

Lamp

type of light sourceRGB-LED, multicolor

light intensity0.5 ... 3.9 cd

number of colors adjustable minimum1 000 000

flash frequency1 Hz

11 Hz

22 Hz

33 Hz

product component light sourceYes

service life of LED50 000 h

color of lensmilky

design of the optical signalblink, flash, continuous, double flash, triple flash, pulsating

product function adjustable luminous intensityYes

number of signal stages preset1

11 Hz

22 Hz

33 Hz

Acoustic signal

type of acoustic signalmulti-tone

service life of acoustic signal device5 000 h

loudness level55 ... 85 dB

number of sounds adjustable10

tone frequency of alternating tone2.3 ... 3.6 kHz

Communication

operating mode at input/ output link24-bit input / 64-bit output

type of IO-Link device connectableintegrated signal lamp

IO-Link transfer rateCom 2

protocol is supported IO-Link protocolYes

number of IO-Link ports1

point-to-point cycle time between master and IO-Link device minimum5 ms

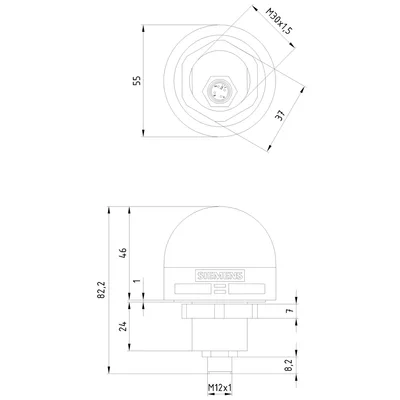

Enclosure

height82 mm

width55 mm

outer diameter55 mm

materialPC

color of the enclosureblack

fastening methodbase mounting

protection class IPIP65, IP69k

degree of protection NEMA rating4/4X

type of electrical connectionM12 connector, 4-pole

Ambient conditions

ambient temperature during operation-20 ... +50 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

Siemens eco profile (SEP)Siemens EcoTech
