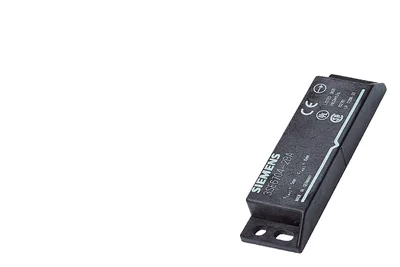

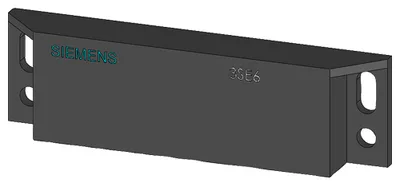

Siemens 3SE6704-2BA

solenoid rectangular large 25 x 88 mm, for operating distance 5 mm, for contact blocks 3SE660*-2BA*

SiemensMFR # 3SE6704-2BASKU # CEY-8EF3B032C75C

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productcoded magnet, rectangular

product type designation3SE67

positive openingNo

cross-circuit/short-circuit recognitionNo

Have questions?Chat on WhatsApp

About This Product

solenoid rectangular large 25 x 88 mm, for operating distance 5 mm, for contact blocks 3SE660*-2BA*

Siemens 3SE6704-2BA

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productcoded magnet, rectangular

product type designation3SE67

suitability for use safety-related circuitsYes

General technical data

positive openingNo

cross-circuit/short-circuit recognitionNo

protection class IPIP67

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.029 kg

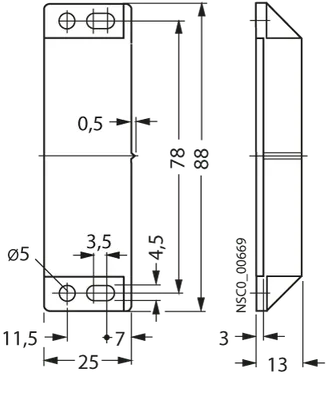

height of the sensor13 mm

length of the sensor88 mm

width of the sensor25 mm

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Enclosure

design of the housingblock

material of the enclosureplastic

Display

evaluation unit requiredyes

Contact

switching frequency5 Hz

Installation/ mounting/ dimensions

fastening methodscrew fixing

Inputs/ Outputs

type of switching outputReed contacts

Safety related data

category according to EN 954-14

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083

Accessories 6
