Siemens 3SE6604-2BA

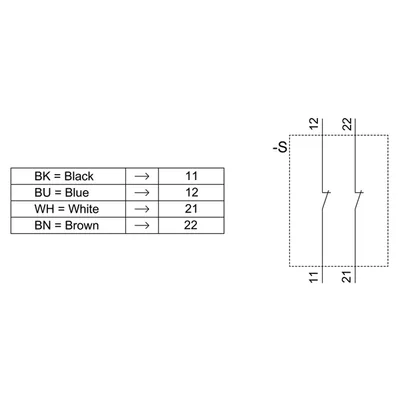

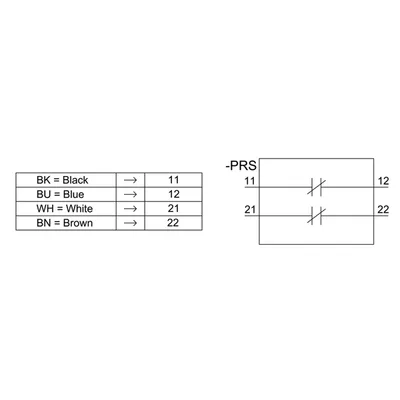

magnetically operated switch contact block large 25 x 88 mm, 2 NC connection cable 3 m LIYY 4 x 0.25 mm², required solenoid 3SE6704-2BA or with increased operating distance 3SE6701-2BA

SiemensMFR # 3SE6604-2BASKU # CEY-8EF3B02C7CF1

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

positive openingNo

cross-circuit/short-circuit recognitionNo

Have questions?Chat on WhatsApp

About This Product

magnetically operated switch contact block large 25 x 88 mm, 2 NC connection cable 3 m LIYY 4 x 0.25 mm², required solenoid 3SE6704-2BA or with increased operating distance 3SE6701-2BA

Siemens 3SE6604-2BA

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

suitability for use safety-related circuitsYes

General technical data

positive openingNo

cross-circuit/short-circuit recognitionNo

type of voltage of the operating voltageAC/DC

protection class IPIP67

shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.171 kg

height of the sensor13 mm

length of the sensor88 mm

width of the sensor25 mm

material of the active sensor areaplastic

Ambient conditions

ambient temperature during operation-25 ... +70 °C

Control circuit/ Control

type of voltageAC/DC

operating voltage rated value100 V

operational current rated value250 mA

operating power rated value3 W

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts0

Enclosure

design of the housingblock

material of the enclosureplastic

material of cable sheathPVC

Actuator

design of the actuating elementmagnet

Display

evaluation unit requiredyes

Contact

circuit principlereed switches

switching frequency5 Hz

assured operating distance OFF15 mm

assured operating distance ON5 mm

design of the switching functionNC contact

Installation/ mounting/ dimensions

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectioncable

wire length3 m

Inputs/ Outputs

type of switching outputReed contacts

Safety related data

category according to EN 954-14

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083

Accessories 4

Genuine accessories that can be used with the Siemens 3SE6604-2BA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX3260	Aksesuar · Miscellaneous accessories · spacers
3SX5601-3GA05	Aksesuar
3SE6704-2BA	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6701-2BA	Seçmeli zorunlu ürün · Non-contact safety switch
