How can I get a price quote for Siemens 3SE6605-2BA01?

You can request a fast quote for Siemens 3SE6605-2BA01 from Yılsa Engineering. Reference part number CEY-8EF3B02EE5E3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE6605-2BA01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE6605-2BA01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE6605-2BA01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SE6605-2BA01

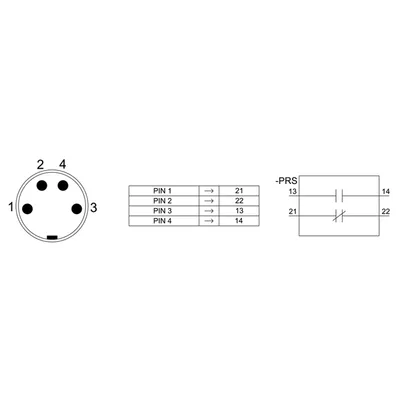

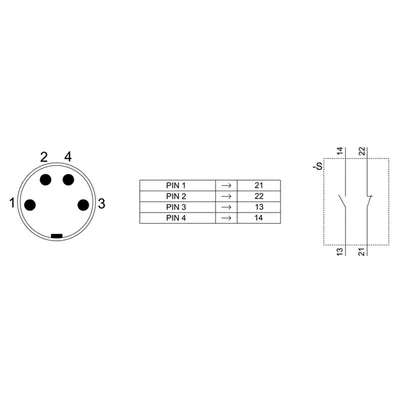

magnetically operated switch contact block rectangular large 25 x 88 mm, contact elements 1 NO+1 NC, plug M8 pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14, required solenoid 3SE6704-2BA or with increased operating distance 8 mm 3SE6701-2BA.

SiemensMFR # 3SE6605-2BA01SKU # CEY-8EF3B02EE5E3

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

positive openingNo

cross-circuit/short-circuit recognitionYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE6605-2BA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

suitability for use safety-related circuitsYes

General technical data

positive openingNo

cross-circuit/short-circuit recognitionYes

type of voltage of the operating voltageAC/DC

protection class IPIP67

shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.024 kg

height of the sensor13 mm

length of the sensor88 mm

width of the sensor25 mm

material of the active sensor areaplastic

Ambient conditions

ambient temperature during operation-25 ... +70 °C

Control circuit/ Control

type of voltageAC/DC

operating voltage rated value60 V

operational current rated value400 mA

operating power rated value10 W

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Enclosure

design of the housingblock

material of the enclosureplastic

Actuator

design of the actuating elementmagnet

Display

evaluation unit requiredyes

Contact

circuit principlereed switches

switching frequency5 Hz

assured operating distance OFF15 mm

assured operating distance ON5 mm

design of the switching functionNC contact and NO contact

Installation/ mounting/ dimensions

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM8 connector, 4-pole

Inputs/ Outputs

type of switching outputReed contacts

Safety related data

category according to EN 954-14

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083

Accessories 4

Genuine accessories that can be used with the Siemens 3SE6605-2BA01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX3260	Aksesuar · Miscellaneous accessories · spacers
3SX5601-3GA05	Aksesuar
3SE6704-2BA	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6701-2BA	Seçmeli zorunlu ürün · Non-contact safety switch
