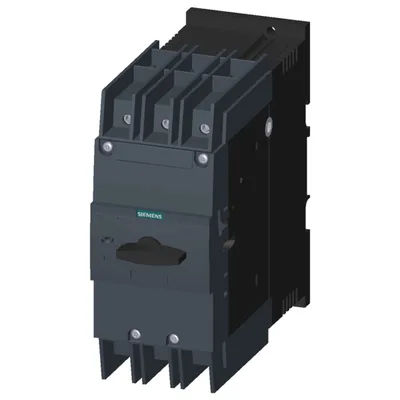

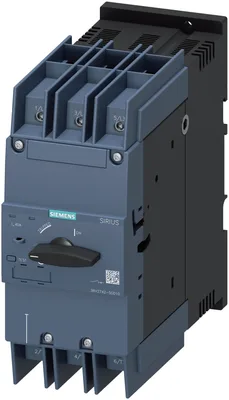

Siemens 3RV2742-5GD10

circuit breaker size S3 for system protection with approval circuit breaker UL 489, CSA C22.2 no. 5-02 thermal release 40 A short-circuit release 520 A screw terminal

SiemensMFR # 3RV2742-5GD10SKU # YLSOCUPBBMWD6H

product brand nameSIRIUS

product designationCircuit breaker

product type designation3RV2

size of the circuit-breakerS3

product extension auxiliary switchYes

at AC in hot operating state18 W

Have questions?Chat on WhatsApp

About This Product

circuit breaker size S3 for system protection with approval circuit breaker UL 489, CSA C22.2 no. 5-02 thermal release 40 A short-circuit release 520 A screw terminal

Siemens 3RV2742-5GD10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor system protection according to UL 489/CSA C22.2 No. 5

product type designation3RV2

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection deviceYes

size of the circuit-breakerS3

product function disconnector functionalityYes

product extension auxiliary switchYes

at AC in hot operating state18 W

at AC in hot operating state per pole6 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value1 000 V

surge voltage resistance rated value8 kV

in networks with ungrounded star point between main and auxiliary circuit400 V

in networks with grounded star point between main and auxiliary circuit400 V

on the front according to IEC 60529IP20

on the frontIP20

of the terminalIP00

shock resistance according to IEC 60068-2-2725 g / 11 ms (rectangular impulse and sine pulse)

of the main contacts typical25 000

of auxiliary contacts typical25 000

electrical endurance (operating cycles) typical25 000

reference code according to IEC 81346-2Q

continuous current rated value40 A

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight2.196 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

temperature compensation-20 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

type of voltage for main current circuitAC

rated value600 V

rated value20 ... 600 V

operating frequency rated value50 ... 60 Hz

operational current rated value40 A

Auxiliary circuit

type of voltage for auxiliary and control circuitAC/DC

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

Protective and monitoring functions

ground fault detectionNo

phase failure detectionNo

design of the overload releasethermal

protection function thermal overload protection (ANSI 49)Yes

at AC at 240 V rated value100 kA

at AC at 400 V rated value100 kA

at 480 AC Y/277 V according to UL 489 rated value65 kA

at 240 V rated value100 kA

at 400 V rated value50 kA

response value current of instantaneous short-circuit trip unit520 A

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

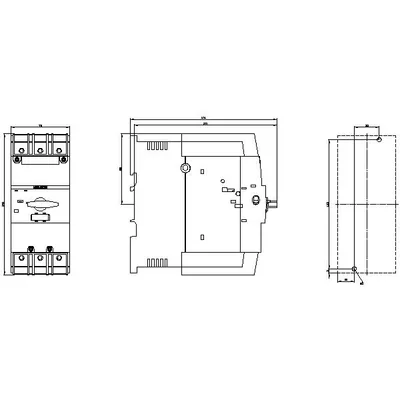

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingYes

height170 mm

width70 mm

depth176 mm

— downwards90 mm

— upwards90 mm

— at the side10 mm

— downwards90 mm

— upwards90 mm

— at the side10 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid2x (2.5 ... 16 mm²)

— solid or stranded2x (2,5 ... 50 mm²), 1x (10 ... 70 mm²)

— finely stranded with core end processing2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²)

— finely stranded without core end processing2x (10 ... 35 mm²), 1x (10 ... 50 mm²)

for AWG cables for main contacts8

for AWG cables for main contacts for box terminal using the front clamping point8

finely stranded with core end processing2.5 ... 50 mm²

finely stranded without core end processing10 ... 50 mm²

AWG number as coded connectable conductor cross section for main contacts8

for main contacts with screw-type terminals4.5 ... 6 N·m

design of screwdriver shaftHexagonal socket

size of the screwdriver tip4 mm

for main contactsM8

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

service life maximum10 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319205 000

failure rate [FIT] with low demand rate according to SN 3192050 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

for proof test interval or service life according to IEC 6150810 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusHandle

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing18.5 kg

global warming potential [CO2 eq] / during sales1.24 kg

global warming potential [CO2 eq] / during operation265 kg

global warming potential [CO2 eq] / after end of life-1.5 kg

global warming potential [CO2 eq] / total283.24 kg
