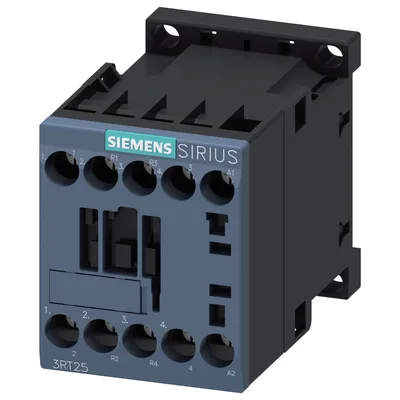

Siemens 3RT2516-1AP60

power contactor, AC-3, 9 A, 4 kW / 400 V, 4-pole, 220 V AC, 50 Hz / 240 V, 60 Hz, main contacts: 2 NO + 2 NC, screw terminal, size: S00

SiemensMFR # 3RT2516-1AP60SKU # CEY-8EF3B039363B

product brand nameSIRIUS

product designationcontactor

product type designation3RT25

size of contactorS00

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

power contactor, AC-3, 9 A, 4 kW / 400 V, 4-pole, 220 V AC, 50 Hz / 240 V, 60 Hz, main contacts: 2 NO + 2 NC, screw terminal, size: S00

Siemens 3RT2516-1AP60

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcontactor

product type designation3RT25

General technical data

size of contactorS00

function module for communicationNo

auxiliary switchYes

at AC in hot operating state per pole0.3 W

without load current share typical1.2 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at AC6,7 g / 5 ms, 4,2 g / 10 ms

at AC10,5 g / 5 ms, 6,6 g / 10 ms

of contactor typical30 000 000

of the contactor with added electronically optimized auxiliary switch block typical5 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.217 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts2

number of NC contacts for main contacts2

— at ambient temperature 40 °C rated value18 A

— at ambient temperature 60 °C rated value16 A

— per NO contact rated value9 A

— per NC contact rated value9 A

minimum cross-section in main circuit at maximum AC-1 rated value2.5 mm²

— at 24 V rated value16 A

— at 110 V rated value2.1 A

— at 220 V rated value0.8 A

— at 440 V rated value0.6 A

— at 24 V rated value16 A

— at 110 V rated value12 A

— at 220 V rated value1.6 A

— at 440 V rated value0.8 A

— at 24 V per NC contact rated value16 A

— at 24 V per NO contact rated value16 A

— at 110 V per NC contact rated value0.075 A

— at 110 V per NO contact rated value0.15 A

— at 220 V per NC contact rated value0.375 A

— at 220 V per NO contact rated value0.75 A

— at 24 V per NC contact rated value16 A

— at 24 V per NO contact rated value16 A

— at 110 V per NC contact rated value0.175 A

— at 110 V per NO contact rated value0.35 A

at 230 V per NC contact rated value2.2 kW

at 230 V per NO contact rated value2.2 kW

at 400 V per NC contact rated value4 kW

at 400 V per NO contact rated value4 kW

limited to 1 s switching at zero current maximum110 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum110 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum86 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum66 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum54 A; Use minimum cross-section acc. to AC-1 rated value

power loss [W] at AC-3 at 400 V for rated value of the operational current per conductor0.3 W

power loss [W] at AC-3e at 400 V for rated value of the operational current per conductor0.3 W

at AC10 000 1/h

at DC10 000 1/h

at AC-1 maximum1 000 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value220 V

at 60 Hz rated value240 V

at 50 Hz0.8 ... 1.1

at 60 Hz0.8 ... 1.1

apparent pick-up power of magnet coil at AC31.7 V·A

at 60 Hz31.7 V·A

inductive power factor with closing power of the coil0.81

at 60 Hz0.81

apparent holding power of magnet coil at AC4.8 V·A

at 60 Hz4.8 V·A

inductive power factor with the holding power of the coil0.25

at 60 Hz0.25

at AC9 ... 35 ms

at AC4 ... 15 ms

arcing time10 ... 15 ms

at AC at 230 V maximum permissible0.003 A

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact0

number of NO contacts for auxiliary contacts instantaneous contact0

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0.15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

for single-phase AC motor at 230 V rated value1 hp

for 3-phase AC motor at 460/480 V rated value5 hp

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

— with type of coordination 1 requiredgG: 35 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 20 A (690 V, 100 kA)

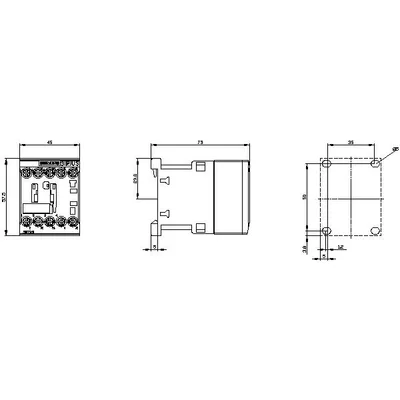

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

height57.5 mm

width45 mm

depth73 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side6 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side6 mm

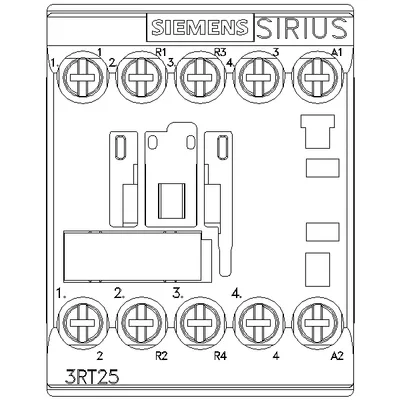

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

AWG number as coded connectable conductor cross section for main contacts20 ... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 12

Safety related data

mirror contact according to IEC 60947-4-1Yes; with 3RH29

positively driven operation according to IEC 60947-5-1No

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.18 kg

global warming potential [CO2 eq] / during operation38.5 kg

global warming potential [CO2 eq] / after end of life-0.155 kg

global warming potential [CO2 eq] / total39.6 kg
