How can I get a price quote for Siemens 3RT2336-1NP30?

You can request a fast quote for Siemens 3RT2336-1NP30 from Yılsa Engineering. Reference part number CEY-8EF3B0393652. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RT2336-1NP30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RT2336-1NP30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RT2336-1NP30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

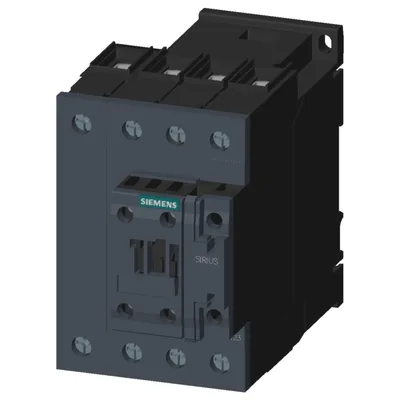

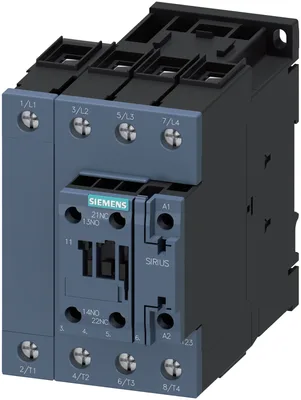

Siemens 3RT2336-1NP30

contactor AC-1, 60 A, 400 V / 40 °C, 4-pole, 175-280 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2

SiemensMFR # 3RT2336-1NP30SKU # CEY-8EF3B0393652

product brand nameSIRIUS

product designationContactor

product type designation3RT23

size of contactorS2

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

contactor AC-1, 60 A, 400 V / 40 °C, 4-pole, 175-280 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2

Siemens 3RT2336-1NP30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationContactor

product type designation3RT23

General technical data

size of contactorS2

function module for communicationNo

auxiliary switchYes

at AC in hot operating state12.8 W

at AC in hot operating state per pole3.2 W

without load current share typical2 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of the auxiliary and control circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

at AC7.7 g / 5 ms, 4.5 g / 10 ms

at DC7.7 g / 5 ms, 4.5 g / 10 ms

at AC12 g / 5 ms, 7 g / 10 ms

at DC12 g / 5 ms, 7 g / 10 ms

of contactor typical10 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight1.226 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts4

type of voltage for main current circuitAC

at AC-1 at 400 V at ambient temperature 40 °C rated value60 A

— up to 690 V at ambient temperature 40 °C rated value60 A

— up to 690 V at ambient temperature 60 °C rated value55 A

— at 400 V rated value38 A

minimum cross-section in main circuit at maximum AC-1 rated value16 mm²

— at 24 V rated value55 A

— at 60 V rated value23 A

— at 110 V rated value4.5 A

— at 220 V rated value1 A

— at 440 V rated value0.4 A

— at 24 V rated value55 A

— at 60 V rated value55 A

— at 110 V rated value45 A

— at 220 V rated value5 A

— at 440 V rated value1 A

— at 24 V rated value55 A

— at 60 V rated value55 A

— at 110 V rated value55 A

— at 220 V rated value45 A

— at 440 V rated value2.9 A

— at 24 V rated value20 A

— at 60 V rated value5 A

— at 110 V rated value2.5 A

— at 220 V rated value1 A

— at 440 V rated value0.1 A

— at 24 V rated value45 A

— at 60 V rated value45 A

— at 110 V rated value25 A

— at 220 V rated value5 A

— at 440 V rated value0.27 A

— at 24 V rated value45 A

— at 60 V rated value45 A

— at 110 V rated value45 A

— at 220 V rated value25 A

— at 440 V rated value0.6 A

at AC1 500 1/h

at DC1 500 1/h

at AC-1 maximum700 1/h

Control circuit/ Control

type of voltageAC/DC

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value175 ... 280 V

at 60 Hz rated value175 ... 280 V

control supply voltage at DC rated value175 ... 280 V

initial value0.8

full-scale value1.1

at 50 Hz0.8 ... 1.1

at 60 Hz0.8 ... 1.1

design of the surge suppressorwith varistor

inrush current peak5 A

duration of inrush current peak30 µs

pickup current mean value0.2 A

pickup current peak0.42 A

duration of pickup current230 ms

holding current mean value6 mA

at 50 Hz40 V·A

at 60 Hz40 V·A

at 50 Hz2 V·A

at 60 Hz2 V·A

at 50 Hz0.95

at 60 Hz0.95

closing power of magnet coil at DC23 W

holding power of magnet coil at DC1 W

at AC35 ... 110 ms

at DC35 ... 110 ms

at AC30 ... 55 ms

at DC30 ... 55 ms

arcing time10 ... 20 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts1

attachable2

instantaneous contact1

number of NO contacts for auxiliary contacts1

attachable2

instantaneous contact1

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0.15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0.9 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

— with type of coordination 1 requiredgG: 160 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 63 A (690 V,100 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

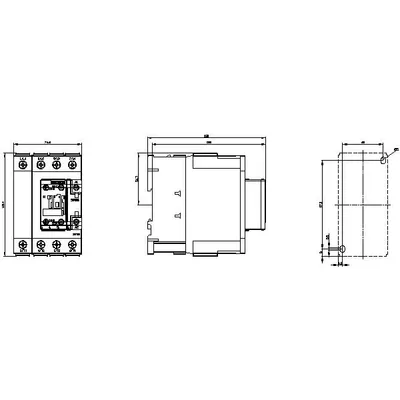

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height114 mm

width75 mm

depth130 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— solid or stranded2x (1 ... 35 mm²), 1x (1 ... 50 mm²)

— finely stranded with core end processing2x (1 ... 25 mm²), 1x (1 ... 35 mm²)

for AWG cables for main contacts2x (18 ... 2), 1x (18 ... 1)

solid or stranded1 ... 50 mm²

finely stranded with core end processing1 ... 35 mm²

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 2.5 mm²

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

AWG number as coded connectable conductor cross section for main contacts18 ... 1

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

Safety related data

mirror contact according to IEC 60947-4-1Yes

positively driven operation according to IEC 60947-5-1No

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Communication/ Protocol

product function bus communicationNo

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing6.76 kg

global warming potential [CO2 eq] / during operation157 kg

global warming potential [CO2 eq] / after end of life-1.08 kg

global warming potential [CO2 eq] / total162 kg
