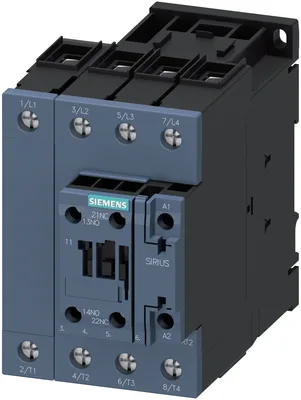

Siemens 3RT2336-1AP00-4AA0

power contactor, AC-3, 51 A, 22 kW / 400 V, 4-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2

SiemensMFR # 3RT2336-1AP00-4AA0SKU # CEY-8EF3B039365B

product brand nameSIRIUS

product designationPower contactor

product type designation3RT23

size of contactorS2

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

power contactor, AC-3, 51 A, 22 kW / 400 V, 4-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S2

Siemens 3RT2336-1AP00-4AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationPower contactor

product type designation3RT23

General technical data

size of contactorS2

function module for communicationNo

auxiliary switchYes

at AC in hot operating state17.2 W

at AC in hot operating state per pole4.3 W

without load current share typical5.9 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of the auxiliary and control circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

at AC11.8 g / 5 ms, 7.4 g / 10 ms

at AC18.5 g / 5 ms, 11.6 g / 10 ms

of contactor typical10 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2014

Net Weight1.105 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts4

type of voltage for main current circuitAC

at AC-1 at 400 V at ambient temperature 40 °C rated value60 A

— up to 690 V at ambient temperature 40 °C rated value60 A

— up to 690 V at ambient temperature 60 °C rated value55 A

— at 400 V rated value51 A

— at 690 V rated value24 A

at AC-4 at 400 V rated value41 A

minimum cross-section in main circuit at maximum AC-1 rated value25 mm²

— at 24 V rated value55 A

— at 60 V rated value23 A

— at 110 V rated value4.5 A

— at 220 V rated value1 A

— at 440 V rated value0.4 A

— at 24 V rated value55 A

— at 60 V rated value55 A

— at 110 V rated value45 A

— at 220 V rated value5 A

— at 440 V rated value1 A

— at 24 V rated value55 A

— at 60 V rated value55 A

— at 110 V rated value55 A

— at 220 V rated value45 A

— at 440 V rated value2.9 A

— at 24 V rated value20 A

— at 60 V rated value5 A

— at 110 V rated value2.5 A

— at 220 V rated value1 A

— at 440 V rated value0.1 A

— at 24 V rated value45 A

— at 60 V rated value45 A

— at 110 V rated value25 A

— at 220 V rated value5 A

— at 440 V rated value0.27 A

— at 24 V rated value45 A

— at 60 V rated value45 A

— at 110 V rated value45 A

— at 220 V rated value25 A

— at 440 V rated value0.6 A

at AC-3 at 400 V rated value22 kW

at AC-4 at 400 V rated value22 kW

limited to 1 s switching at zero current maximum628 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum628 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum468 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum282 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum227 A; Use minimum cross-section acc. to AC-1 rated value

at AC5 000 1/h

at AC-1 maximum1 000 1/h

Control circuit/ Control

type of voltageAC

type of voltage of the control supply voltageAC

at 50 Hz rated value230 V

at 50 Hz0.8 ... 1.1

at 50 Hz190 V·A

at 50 Hz0.72

at 50 Hz16 V·A

at 50 Hz0.37

at AC10 ... 80 ms

at AC10 ... 18 ms

arcing time10 ... 20 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts1

attachable2

instantaneous contact1

number of NO contacts for auxiliary contacts1

attachable2

instantaneous contact1

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0.15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0.9 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

— with type of coordination 1 requiredgG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)

— with type of coordination 2 requiredgG: 80 A (690 V, 100 kA), aM: 50 A (690 V, 100 kA), BS88: 63 A (415 V, 80 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height114 mm

width55 mm

depth130 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— solid or stranded2x (1 ... 35 mm²), 1x (1 ... 50 mm²)

— finely stranded with core end processing2x (1 ... 25 mm²), 1x (1 ... 35 mm²)

for AWG cables for main contacts2x (18 ... 2), 1x (18 ... 1)

solid or stranded1 ... 50 mm²

finely stranded with core end processing1 ... 35 mm²

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

AWG number as coded connectable conductor cross section for main contacts18 ... 1

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

Safety related data

mirror contact according to IEC 60947-4-1Yes

positively driven operation according to IEC 60947-5-1No

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Communication/ Protocol

product function bus communicationNo

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing4.83 kg

global warming potential [CO2 eq] / during operation297 kg

global warming potential [CO2 eq] / after end of life-0.64 kg

global warming potential [CO2 eq] / total302 kg
