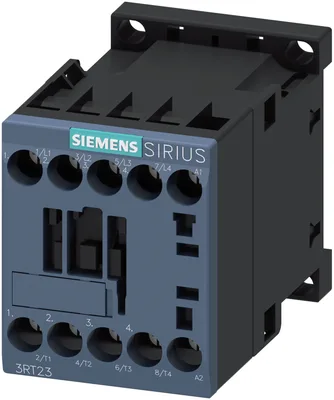

Siemens 3RT2317-1AP60

contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 220 V AC, 50 Hz / 240 V, 60 Hz, screw terminal, size: S00

SiemensMFR # 3RT2317-1AP60SKU # CEY-8EF3B03936D6

product brand nameSIRIUS

product designationContactor

product type designation3RT23

size of contactorS00

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 220 V AC, 50 Hz / 240 V, 60 Hz, screw terminal, size: S00

Siemens 3RT2317-1AP60

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationContactor

product type designation3RT23

General technical data

size of contactorS00

function module for communicationNo

auxiliary switchYes

at AC in hot operating state6.4 W

at AC in hot operating state per pole1.6 W

without load current share typical1.4 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of the auxiliary and control circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

at AC7,3 g / 5 ms, 4,7 g / 10 ms

at AC11,4 g / 5 ms, 7,3 g / 10 ms

of contactor typical30 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2009

Net Weight231.9 g

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts4

type of voltage for main current circuitAC

at AC-1 at 400 V at ambient temperature 40 °C rated value22 A

— up to 690 V at ambient temperature 40 °C rated value22 A

— up to 690 V at ambient temperature 60 °C rated value20 A

— at 400 V rated value12 A

at AC-4 at 400 V rated value8.5 A

minimum cross-section in main circuit at maximum AC-1 rated value4 mm²

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value2.1 A

— at 220 V rated value0.8 A

— at 440 V rated value0.6 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value12 A

— at 220 V rated value1.6 A

— at 440 V rated value0.8 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value20 A

— at 220 V rated value20 A

— at 440 V rated value1.3 A

— at 24 V rated value20 A

— at 60 V rated value0.5 A

— at 110 V rated value0.15 A

— at 24 V rated value20 A

— at 60 V rated value5 A

— at 110 V rated value0.35 A

— at 24 V rated value20 A

— at 60 V rated value20 A

— at 110 V rated value20 A

— at 220 V rated value1.5 A

— at 440 V rated value0.2 A

at AC-3 at 400 V rated value5.5 kW

at AC-4 at 400 V rated value4 kW

at AC10 000 1/h

at AC-1 maximum1 000 1/h

Control circuit/ Control

type of voltageAC

type of voltage of the control supply voltageAC

at 50 Hz rated value220 V

at 60 Hz rated value240 V

at 50 Hz0.8 ... 1.1

at 60 Hz0.8 ... 1.1

at 50 Hz36 V·A

at 60 Hz36 V·A

at 50 Hz0.8

at 60 Hz0.8

at 50 Hz5.9 V·A

at 60 Hz5.9 V·A

at 50 Hz0.24

at 60 Hz0.24

at AC9 ... 35 ms

at AC7 ... 13 ms

arcing time10 ... 15 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

attachable2

Short-circuit protection

— with type of coordination 1 requiredgG: 35 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 20 A (690 V, 100 kA)

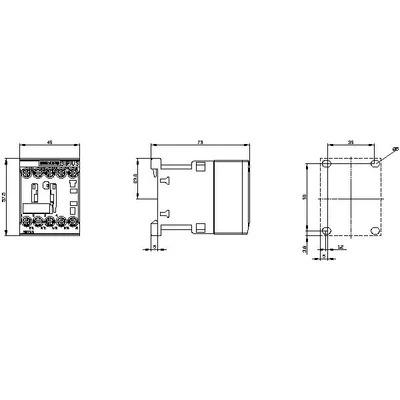

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height58 mm

width45 mm

depth73 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for main contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

solid0.5 ... 4 mm²

solid or stranded0.5 ... 4 mm²

stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

solid or stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

AWG number as coded connectable conductor cross section for main contacts20 ... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 12

Safety related data

mirror contact according to IEC 60947-4-1Yes; with 3RH29

positively driven operation according to IEC 60947-5-1No

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Communication/ Protocol

product function bus communicationNo

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.15 kg

global warming potential [CO2 eq] / during operation93.8 kg

global warming potential [CO2 eq] / after end of life-0.178 kg

global warming potential [CO2 eq] / total94.8 kg
