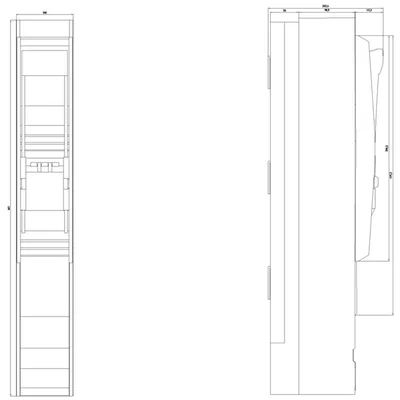

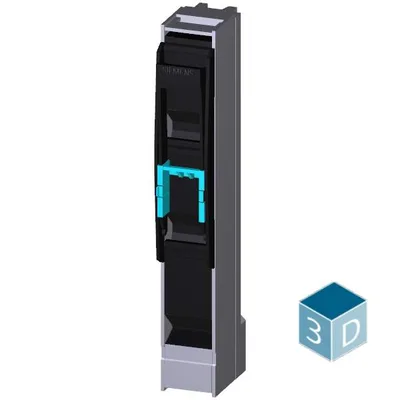

Siemens 3NJ4143-3BJ01
in-line fuse switch disconnector 3-pole switchable, sz. 3 I=630 A, U=690 V stud terminal M12,
product brand nameSENTRON
product designationFuse switch disconnectors
design of the productin in-line design
design of the auxiliary releaseWithout
design of the safety monitoringWithout
design of the load switch strip formYes
About This Product
in-line fuse switch disconnector 3-pole switchable, sz. 3 I=630 A, U=690 V stud terminal M12,
Siemens 3NJ4143-3BJ01
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationFuse switch disconnectors
design of the productin in-line design
type of switching contact double breaking switching contactNo
design of the auxiliary releaseWithout
design of the safety monitoringWithout
design of the load switch strip formYes
General technical data
number of poles3
number of poles note3-pole switchable
type of deviceFor busbar system 185 mm
size of fuse linkNH2, NH3
fuse systemLV HRC fuse
Voltage
insulation voltage rated value1 000 V
at AC-21 B at 400 V rated value630 A
at AC-21 B at 500 V rated value630 A
at AC-21 B at 690 V rated value630 A
at AC-23 B at 400 V rated value630 A
at AC rated value690 V
at DC rated value440 V
Protection class
protection class IP on the frontIP30
Dissipation
for rated value of the current at AC in hot operating state per pole38.3 W
maximum115 W
Main circuit
rated value630 A
with capacitive load at 400 V rated value361 A
with capacitive load at 500 V rated value275 A
Suitability
suitability for operationSystem protection
suitability for use main switchNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchNo
suitability for use maintenance/repair switchNo
Product details
voltage triggerNo
undervoltage releaseNo
undervoltage release with leading contactNo
Short circuit
at AC-21 B at 400 V rated value110 kA
at AC-21 B at 500 V rated value110 kA
at AC-21 B at 690 V rated value110 kA
at AC-22 B at 400 V rated value110 kA
at AC-22 B at 500 V rated value110 kA
at AC-22 B at 690 V rated value110 kA
at AC-23 B at 400 V rated value110 kA
at AC-23 B at 500 V rated value110 kA
at AC-23 B at 690 V rated value110 kA
Connections
arrangement of electrical connectors for main current circuitStud terminal
type of electrical connection for main current circuitscrew-type terminals
Mechanical Design
height662 mm
width100 mm
depth195 mm
fastening methodStehbolzenanschluss, M12
mounting positionvertical, horizontal
busbar center-to-center spacing185 mm
40 mmNo
50 mmNo
60 mmNo
100 mmNo
185 mmYes
Net Weight5.87 kg
Environmental conditions
minimum-25 °C
maximum55 °C
Accessories 99
