How can I get a price quote for Siemens 3NB1234-3KK15?

You can request a fast quote for Siemens 3NB1234-3KK15 from Yılsa Engineering. Reference part number YLS1VCPVGOJNM1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NB1234-3KK15 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NB1234-3KK15 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NB1234-3KK15?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

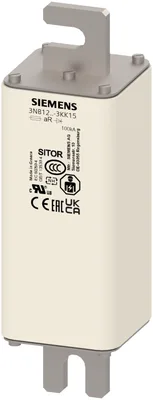

Siemens 3NB1234-3KK15

SITOR fuse size 2 400A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives

SiemensMFR # 3NB1234-3KK15SKU # YLS1VCPVGOJNM1

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorWithout indicator

design of the switching contactM10 170 mm slotted blades

design of the fuse linkSITOR, LV HRC design

Have questions?Chat on WhatsApp

About This Product

SITOR fuse size 2 400A aR 1000V dc/1250V VSI 1100V dc UL @MBC 7xIn screw connection M10 170mm slotted knives

Siemens 3NB1234-3KK15

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorWithout indicator

design of the switching contactM10 170 mm slotted blades

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH2

operating class of the fuse linkaR

type of voltage of the operating voltageDC

Supply voltage

at DC1 000 V

Breaking Capacity

at DC according to IEC 60947-2 rated value100 kA

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]89 W

for rated value of the current at AC in hot operating state per pole89 W

maximum89 W

Product details

product descriptionwith slotted blade contacts, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight1.368 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 13

Genuine accessories that can be used with the Siemens 3NB1234-3KK15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NH6320	Uyumlu ürün · LV HRC fuse system
3NH2330	Uyumlu ürün · LV HRC fuse system
3NH1330	Uyumlu ürün · LV HRC fuse system
3NJ4143-3CF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3CF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BT01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BJ01	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4143-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4141-3BF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4141-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NH6330	Uyumlu ürün · LV HRC fuse system
3NH5463	Seçmeli zorunlu ürün · LV HRC fuse system
